The role of fission in mass sensitivity study of ther-process

The rapid neutron-capture process (r-process) is a fundamental mechanism in astrophysical nucleosynthesis, responsible for producing approximately half of the elements heavier than iron. This process occurs in extreme astrophysical environments with high neutron fluxes, enabling nuclei to undergo successive neutron captures before decaying back to stability [1]. Observations of metal-poor stars and meteorites reveal the characteristic abundance patterns of ther-process, highlighting its crucial role in cosmic chemical evolution [2]. However, despite decades of research, the exact astrophysical sites responsible for ther-process remain uncertain.

To unravel the origin ofr-process elements, theoretical simulations of the nucleosynthesis process are necessary and rely on two essential input components: astrophysical conditions and nuclear properties. Both aspects introduce significant uncertainties. The astrophysical conditions, such as neutron flux, expansion timescale, temperature, and density evolution, all affect nucleosynthesis outcomes [3,4]. Meanwhile, the nuclear properties of neutron-rich isotopes, such as masses,β-decay rates, neutron capture rates, fission rates, and fission yields, remain largely unmeasured and must be inferred from theoretical models, but these predictions often diverge [5−10]. These uncertainties hinder precise modeling of ther-process and complicate the interpretation of observed abundance patterns.

One of the unresolved questions inr-process nucleosynthesis is the formation mechanism of the rare-earth peak around mass number $ A \sim 165 $ . Unlike the second and thirdr-process peaks, which are associated with closed neutron shells, the rare-earth peak is thought to originate from other nuclear structure effects [1,11,12]. The rare-earth peak could serve as a diagnostic tool for constraining astrophysical conditions of ther-process if its formation were well understood [13]. However, due to the large uncertainties in nuclear physics inputs, the abundance patterns obtained fromr-process simulations exhibit large variance bands that exceed the peak itself, making it difficult to distinguish the abundance patterns produced by different astrophysical environments [6,14−16]. To improve the reliability of such constraints, it is necessary to reduce uncertainties in nuclear physics inputs.

Since it is challenging to experimentally measure the nuclear properties of a large number of neutron-rich nuclei, sensitivity studies provide an effective approach to pinpoint the key nuclei that have a significant impact onr-process abundances [6,14−23]. The previous sensitivity studies have primarily focused on the global effects on the abundance distributions caused by mass variations, while the specific nuclei that affect the rare-earth peak formation remain unclear. So we performed sensitivity studies specifically targeting the rare-earth peak formation by individually modifying nuclear masses in the relevant region. We find the nuclei that have the most significant influence on the rare-earth peak are mainly distributed in two regions, as previously reported in Ref. [24]. However, in the astrophysical scenarios where a large number of fission events occur, the high sensitivity of nuclei lying along ther-process freeze-out path is diminished.

The present paper goes together with Ref. [24]. In this work, we have extended our analysis focusing on the role of fission in the sensitivity study ofr-process abundances to nuclear masses. We analyzed in detail the reasons for the different distribution patterns of nuclei with high sensitivity under different astrophysical scenarios. Our results highlight the impact of fission in shaping the rare-earth peak abundances and help to enhance the understanding of the rare-earth peak formation mechanism as well as improve its effectiveness as a diagnostic for ther-process site.

The nuclear network NucNet [25] was used to simulater-process nucleosynthesis. This network includes over 6000 isotopes, covering nuclei with atomic numbers $ Z\leq102 $ . We obtained the nuclear masses from the finite-range droplet model [26]. The neutron-capture rates were calculated using the publicly available statistical model code TALYS [27]. Theβ-decay rates were obtained from the JINA REACLIB database [28]. Fission was included as in Ref. [29].

Ther-process calculations were performed using a parameterized trajectory, as implemented in Refs. [12,13], in which the density as a function of time is given by

where $ \rho_1+\rho_2 $ is the density at time $ t = 0 $ ,τis the expansion timescale, and ∆ is a constant real number. The parameternsets the thermodynamic behavior of the evolution at the late stage of ther-process. For this work, we selected three distinct astrophysical scenarios: (1) a hot windr-process with entropy 150 $ k_B $ , $ Y_e = 0.3 $ , $ \tau = 20 $ ms, and $ n = 2 $ ; (2) a hot windr-process with entropy 233 $ k_B $ , $ Y_e = 0.1 $ , $ \tau = 35 $ ms, and $ n = 2 $ ; and (3) a cold windr-process with entropy 150 $ k_B $ , $ Y_e = 0.2 $ , $ \tau = 20 $ ms, and $ n = 6 $ . In all scenarios, nucleosynthesis calculations started at an initial temperature $ T = 10 $ GK. We labeled these three trajectories ashot1,hot2, andcold, respectively.

In thehot1scenario, fission played a negligible role in nucleosynthesis owing to fewer neutrons in the environment, which prevented significant production of fissioning nuclei. In contrast, both thehot2andcoldscenarios enabled the formation of a substantial number of fissioning nuclei, leading to the deposition of numerous fission fragments in the $ A=110 \sim 170 $ region. This is based on the GEF fission fragment distribution model [30], which predicts that fission yields in the neutron-rich regions exhibit both symmetric and asymmetric components [29,31]. To isolate the effects of fission without direct contributions from fission fragments to the rare-earth peak, we conducted an additional set of simulations under thecoldscenario. In these simulations, we imposed a simple symmetric split for fission product distributions, ensuring that the fission fragments mainly populated the $ A \sim 130 $ peak region instead of the rare-earth peak. This specific set of simulations is referred to as thecold-symtrajectory in the following discussion.

Following previous sensitivity studies [14,18], we varied the mass of a single nucleus by $ \pm1 $ MeV for 414 nuclei relevant to rare-earth peak formation [12]. For each variation, an abundance pattern was calculated and compared with the baseline using the sensitivity measureF:

where $ Y_{\rm ori.}(A) $ is the baseline abundance, and $ Y_{+1}(A) $ and $ Y_{-1}(A) $ are the abundances of the simulations in which a single nuclear mass is increased or decreased by 1 MeV, respectively. When $ Y_{\rm ori.}(A) $ , $ Y_{+1}(A) $ , and $ Y_{-1}(A) $ are considered as the final abundances, the correspondingF-values can be found in Ref. [24]. In the present study, we further computed the sensitivity measure $ F_{\rm freeze-out} $ of the abundance distribution at freeze-out with respect to nuclear mass variations, where $ Y_{\rm ori.}(A) $ , $ Y_{+1}(A) $ , and $ Y_{-1}(A) $ refer to the abundances at the time of ther-process freeze-out. This allowed us to better understand how nuclear mass variations influence the abundance evolution prior to the onset of decay back to stability.

The nuclear network NucNet [25] was used to simulater-process nucleosynthesis. This network includes over 6000 isotopes, covering nuclei with atomic numbers $ Z\leq102 $ . We obtained the nuclear masses from the finite-range droplet model [26]. The neutron-capture rates were calculated using the publicly available statistical model code TALYS [27]. Theβ-decay rates were obtained from the JINA REACLIB database [28]. Fission was included as in Ref. [29].

Ther-process calculations were performed using a parameterized trajectory, as implemented in Refs. [12,13], in which the density as a function of time is given by

where $ \rho_1+\rho_2 $ is the density at time $ t = 0 $ ,τis the expansion timescale, and ∆ is a constant real number. The parameternsets the thermodynamic behavior of the evolution at the late stage of ther-process. For this work, we selected three distinct astrophysical scenarios: (1) a hot windr-process with entropy 150 $ k_B $ , $ Y_e = 0.3 $ , $ \tau = 20 $ ms, and $ n = 2 $ ; (2) a hot windr-process with entropy 233 $ k_B $ , $ Y_e = 0.1 $ , $ \tau = 35 $ ms, and $ n = 2 $ ; and (3) a cold windr-process with entropy 150 $ k_B $ , $ Y_e = 0.2 $ , $ \tau = 20 $ ms, and $ n = 6 $ . In all scenarios, nucleosynthesis calculations started at an initial temperature $ T = 10 $ GK. We labeled these three trajectories ashot1,hot2, andcold, respectively.

In thehot1scenario, fission played a negligible role in nucleosynthesis owing to fewer neutrons in the environment, which prevented significant production of fissioning nuclei. In contrast, both thehot2andcoldscenarios enabled the formation of a substantial number of fissioning nuclei, leading to the deposition of numerous fission fragments in the $ A=110 \sim 170 $ region. This is based on the GEF fission fragment distribution model [30], which predicts that fission yields in the neutron-rich regions exhibit both symmetric and asymmetric components [29,31]. To isolate the effects of fission without direct contributions from fission fragments to the rare-earth peak, we conducted an additional set of simulations under thecoldscenario. In these simulations, we imposed a simple symmetric split for fission product distributions, ensuring that the fission fragments mainly populated the $ A \sim 130 $ peak region instead of the rare-earth peak. This specific set of simulations is referred to as thecold-symtrajectory in the following discussion.

Following previous sensitivity studies [14,18], we varied the mass of a single nucleus by $ \pm1 $ MeV for 414 nuclei relevant to rare-earth peak formation [12]. For each variation, an abundance pattern was calculated and compared with the baseline using the sensitivity measureF:

where $ Y_{\rm ori.}(A) $ is the baseline abundance, and $ Y_{+1}(A) $ and $ Y_{-1}(A) $ are the abundances of the simulations in which a single nuclear mass is increased or decreased by 1 MeV, respectively. When $ Y_{\rm ori.}(A) $ , $ Y_{+1}(A) $ , and $ Y_{-1}(A) $ are considered as the final abundances, the correspondingF-values can be found in Ref. [24]. In the present study, we further computed the sensitivity measure $ F_{\rm freeze-out} $ of the abundance distribution at freeze-out with respect to nuclear mass variations, where $ Y_{\rm ori.}(A) $ , $ Y_{+1}(A) $ , and $ Y_{-1}(A) $ refer to the abundances at the time of ther-process freeze-out. This allowed us to better understand how nuclear mass variations influence the abundance evolution prior to the onset of decay back to stability.

The nuclear network NucNet [25] was used to simulater-process nucleosynthesis. This network includes more than 6000 isotopes, covering nuclei with atomic number $ Z\leq102 $ . We take nuclear masses from the finite-range droplet model (FRDM) [26]. The neutron-capture rates are calculated with the publicly available statistical model code TALYS [27]. Theβ-decay rates are taken from the JINA REACLIB database [28]. Fission is included as in Ref. [29].

Ther-process calculations were performed using a parameterized trajectory as implemented in Refs. [12,13], where the density as a function of time is given by:

where $ \rho_1+\rho_2 $ is the density at time $ t = 0 $ ,τis the expansion timescale, and ∆ is a constant real number. The parameternsets the thermodynamic behavior of the evolution at the late time of ther-process. For this work, we chose three distinct astrophysical scenarios: (1) a hot windr-process with entropy 150 $ k_B $ , $ Y_e = 0.3 $ , $ \tau = 20 $ ms, and $ n = 2 $ , (2) a hot windr-process with entropy 233 $ k_B $ , $ Y_e = 0.1 $ , $ \tau = 35 $ ms, and $ n = 2 $ , and (3) a cold windr-process with entropy 150 $ k_B $ , $ Y_e = 0.2 $ , $ \tau = 20 $ ms, and $ n = 6 $ . In all scenarios, nucleosynthesis calculations start at an initial temperature $ T = 10 $ GK. We label these three trajectories ashot1,hot2, andcold, respectively.

In thehot1scenario, fission plays a negligible role in nucleosynthesis due to fewer neutrons in the environment, which prevents significant production of fissioning nuclei. In contrast, both thehot2andcoldscenarios enable the formation of a substantial number of fissioning nuclei, leading to the deposition of numerous fission fragments in the $ A=110 \sim 170 $ region. This is based on the GEF fission fragment distribution model [30], which predicts that fission yields in the neutron-rich regions exhibit both symmetric and asymmetric components [29,31]. To isolate the effects of fission without direct contributions from fission fragments to the rare-earth peak, we conducted an additional set of simulations under thecoldscenario. In these simulations, we imposed a simple symmetric split for fission product distributions, ensuring that the fission fragments mainly populate the $ A \sim 130 $ peak region instead of the rare-earth peak. This specific set of simulations is referred to as thecold-symtrajectory in the following discussion.

Following previous sensitivity studies [14,18], we vary the mass of a single nucleus by $ \pm1 $ MeV for 414 nuclei relevant to rare-earth peak formation [12]. For each variation, an abundance pattern is calculated and compared to the baseline using the sensitivity measureF,

$ Y_{ori.}(A) $ is the baseline abundance, and $ Y_{+1}(A) $ and $ Y_{-1}(A) $ are the abundances of the simulations where a single nuclear mass is increased or decreased by 1 MeV, respectively. When $ Y_{ori.}(A) $ , $ Y_{+1}(A) $ , and $ Y_{-1}(A) $ are taken as the final abundances, the correspondingF-values can be found in Ref. [24]. In the present work, we further compute the sensitivity measure $ F_{freeze-out} $ of the abundance distribution at freeze-out with respect to nuclear mass variations, where $ Y_{ori.}(A) $ , $ Y_{+1}(A) $ , and $ Y_{-1}(A) $ refer to the abundances at the time ofr-process freeze-out. This allows us to better understand how nuclear mass variations influence the abundance evolution prior to the onset of decay back to stability.

The nuclear network NucNet [25] was used to simulater-process nucleosynthesis. This network includes over 6000 isotopes, covering nuclei with atomic numbers $ Z\leq102 $ . We obtained the nuclear masses from the finite-range droplet model [26]. The neutron-capture rates were calculated using the publicly available statistical model code TALYS [27]. Theβ-decay rates were obtained from the JINA REACLIB database [28]. Fission was included as in Ref. [29].

Ther-process calculations were performed using a parameterized trajectory, as implemented in Refs. [12,13], in which the density as a function of time is given by

where $ \rho_1+\rho_2 $ is the density at time $ t = 0 $ ,τis the expansion timescale, and ∆ is a constant real number. The parameternsets the thermodynamic behavior of the evolution at the late stage of ther-process. For this work, we selected three distinct astrophysical scenarios: (1) a hot windr-process with entropy 150 $ k_B $ , $ Y_e = 0.3 $ , $ \tau = 20 $ ms, and $ n = 2 $ ; (2) a hot windr-process with entropy 233 $ k_B $ , $ Y_e = 0.1 $ , $ \tau = 35 $ ms, and $ n = 2 $ ; and (3) a cold windr-process with entropy 150 $ k_B $ , $ Y_e = 0.2 $ , $ \tau = 20 $ ms, and $ n = 6 $ . In all scenarios, nucleosynthesis calculations started at an initial temperature $ T = 10 $ GK. We labeled these three trajectories ashot1,hot2, andcold, respectively.

In thehot1scenario, fission played a negligible role in nucleosynthesis owing to fewer neutrons in the environment, which prevented significant production of fissioning nuclei. In contrast, both thehot2andcoldscenarios enabled the formation of a substantial number of fissioning nuclei, leading to the deposition of numerous fission fragments in the $ A=110 \sim 170 $ region. This is based on the GEF fission fragment distribution model [30], which predicts that fission yields in the neutron-rich regions exhibit both symmetric and asymmetric components [29,31]. To isolate the effects of fission without direct contributions from fission fragments to the rare-earth peak, we conducted an additional set of simulations under thecoldscenario. In these simulations, we imposed a simple symmetric split for fission product distributions, ensuring that the fission fragments mainly populated the $ A \sim 130 $ peak region instead of the rare-earth peak. This specific set of simulations is referred to as thecold-symtrajectory in the following discussion.

Following previous sensitivity studies [14,18], we varied the mass of a single nucleus by $ \pm1 $ MeV for 414 nuclei relevant to rare-earth peak formation [12]. For each variation, an abundance pattern was calculated and compared with the baseline using the sensitivity measureF:

where $ Y_{\rm ori.}(A) $ is the baseline abundance, and $ Y_{+1}(A) $ and $ Y_{-1}(A) $ are the abundances of the simulations in which a single nuclear mass is increased or decreased by 1 MeV, respectively. When $ Y_{\rm ori.}(A) $ , $ Y_{+1}(A) $ , and $ Y_{-1}(A) $ are considered as the final abundances, the correspondingF-values can be found in Ref. [24]. In the present study, we further computed the sensitivity measure $ F_{\rm freeze-out} $ of the abundance distribution at freeze-out with respect to nuclear mass variations, where $ Y_{\rm ori.}(A) $ , $ Y_{+1}(A) $ , and $ Y_{-1}(A) $ refer to the abundances at the time of ther-process freeze-out. This allowed us to better understand how nuclear mass variations influence the abundance evolution prior to the onset of decay back to stability.

Previous studies [11,12] have suggested that the formation of the rare-earth peak occurs during the decay back to stability after ther-process freeze-out. In our earlier work [24], we further clarified that the rare-earth peak forms within the time interval between ther-process freeze-out and the point when the neutron capture timescale ( $ \tau_{n\gamma} $ ) becomes approximately three times longer than theβ-decay timescale ( $ \tau_\beta $ ). At this moment, when $ \tau_{n\gamma} \approx 3\tau_\beta $ , the rare-earth peak abundances are already close to their final values, indicating that the peak has essentially formed. The nuclei that have the most significant influence on the rare-earth peak are mainly distributed in two regions. Region I, located 20−30 neutrons away from stability, corresponds to the position of the nuclear flow at ther-process freeze-out. Region II, 7−15 neutrons away from stability, aligns with ther-process path at the point of $ \tau_{n\gamma} \approx 3\tau_\beta $ .

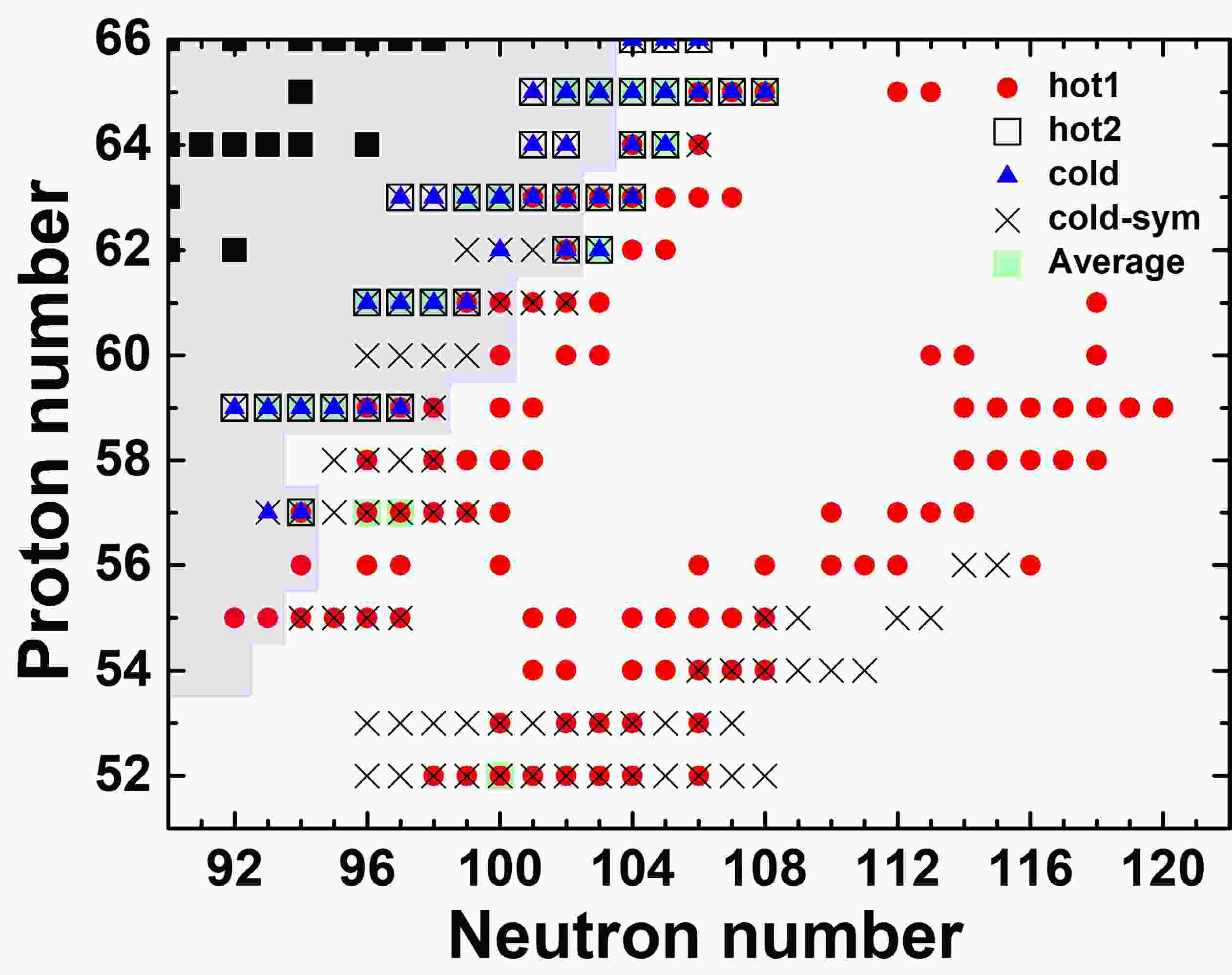

Figure 1shows the distribution of nuclei with high sensitivity measureFunder different astrophysical scenarios, with the sensitivity data in four different scenarios obtained from Ref. [24]. As a supplement to this analysis, we further calculated the average sensitivity measureFacross thehot1,hot2, andcoldscenarios. The top 30 nuclei with the largest averaged sensitivityFvalues are listed inTable 1and indicated by light green shaded squares inFig. 1. It is evident that the nuclei with the highest averaged sensitivity values were primarily located in region II, because these nuclei exhibited consistently high sensitivity across multiple astrophysical scenarios. In contrast, region I contained only one nucleus, $ ^{152} {\rm{Te}}$ , with a relatively high averaged sensitivity. Although the sensitivity measureFof $ ^{152} {\rm{Te}}$ was low under thehot2andcoldscenarios, its exceptionally high sensitivity under thehot1scenario resulted in a large averageFvalue.

Figure 1.(color online) Distribution of nuclei with a sensitivity measureFgreater than 200 in thehot1,hot2,cold, andcold-symscenarios. The region of measured nuclear masses from AME2020 [32] is overlaid with a pink color and the solid black squares are stable isotopes. The data of the sensitivity measureFin four different scenarios were obtained from Ref. [24]. The top 30 nuclei with the largest averaged sensitivityFvalues across thehot1,hot2, andcoldscenarios are indicated by light green shaded squares.

In the scenarios considered in this study, the equilibrium phases were maintained at the time of ther-process freeze-out. Thus, the final abundances were expected to be sensitive to changes in the masses of nuclei located along ther-process freeze-out path, as explained in detail in our previous work [24]. However, in thehot2andcoldscenarios, the nuclei in region I exhibited lowerFvalues, indicating that mass variations in this region had little or no impact on the final abundance distribution.

Nevertheless, we found that mass variations of certain nuclei in region I could lead to significant differences in the abundance pattern at the time of ther-process freeze-out, as shown inFig. 2. We selected two nuclei from region I as examples. In thehot1scenario, the mass variation of $ ^{152} {\rm{Te}}$ resulted in a noticeable difference in the abundance distribution at the freeze-out time. In thecoldscenario, the mass variation of $ ^{172} {\rm{Ba}}$ also led to significant differences at freeze-out. However, compared with thehot1case, the overall abundance in the rare-earth peak region was much lower. The situation in thehot2scenario was similar to that in thecoldscenario. To quantify the sensitivity of the abundance distribution at freeze-out time to nuclear masses, we calculated the sensitivity measure $ F_{\rm freeze-out} $ , which reflects how mass variations influence the abundance pattern at freeze-out. The results are presented inFigs. 3and4, where the left panels display the sensitivity measures and the right panels present the corresponding abundance distributions at ther-process freeze-out. The results indicate that, in the four considered scenarios, region I corresponded to the region through which the nuclear flow passed at freeze-out. In thecoldscenario, the nuclear flow extended farther from stability compared with the hotr-process conditions. It can be clearly observed that nuclei with high sensitivity were distributed along ther-process freeze-out path, implying that mass variations of nuclei in this region strongly impacted the abundance distribution at freeze-out across all four scenarios.

Figure 2.(color online) Abundance distributions at the time of ther-process freeze-out following nuclear mass variation in thehot1andcoldscenarios. The solid blue line represents the abundance distribution resulting from a mass increase of 1 MeV, while the dotted orange line corresponds to the abundance distribution resulting from a mass decrease of 1 MeV. The dots represent the solarr-process abundance pattern [33].

Figure 3.(color online) In thehot1andhot2scenarios, panels (a) and (b) correspond to the sensitivity measure $ F_{\rm freeze-out} $ of the abundance distribution at ther-process freeze-out to nuclear masses, whereas panels (c) and (d) correspond to the abundance distribution patterns at freeze-out. Nuclei with $ F_{\rm freeze-out} $ values greater than 1000 are represented by a cross in panels (c) and (d).

Figure 4.(color online) As inFig. 3, but with results for thecoldandcold-symscenarios.

In thehot1scenario, differences in the abundance distribution at freeze-out propagated through the later stage of nucleosynthesis, leading to significant variations in the final abundance pattern. However, in thehot2andcoldscenarios, even though mass variations of certain nuclei in region I caused considerable differences in the abundance distribution at freeze-out, their impact on the final abundance pattern was minimal or negligible. This is primarily owing to the influence of fission fragments, which play an important role in shaping the rare-earth peak abundances. We calculated the contribution of fission products to the abundance in thecoldscenario as an example to prove this point, as follows:

We took the integrated fission flow $ f_{i}^{(n)} $ of a parent nucleusn, multiplied it by the fission yield $ w_i (A) $ of the corresponding fission product with mass numberA, and then summed the contributions from all fissioning nuclei, whereirefers to a certain fission channel. $ \Delta Y_{\rm Fragment} $ represents the increase in the abundance of nuclei with mass numberAowing to fission deposition. Details of the relevant physical quantities can be found in Ref. [29]. The calculated contribution of the fission fragments to the abundance is shown inFig. 5. The results indicate that when using the GEF model, a significant number of fission fragments were distributed within the rare-earth peak mass region. In thehot2andcoldscenarios, the overall abundance in the rare-earth peak region was very low at freeze-out. However, as nucleosynthesis progresses, a substantial amount of fission fragments was deposited in this region, gradually increasing abundance in the rare-earth region. The contribution of fission fragments diminished the variations in the rare-earth peak abundance distribution that were initially caused by nuclear mass changes. As a result, the impact of mass variations in region I was masked by the distribution of fission fragments, leading to a generally lower sensitivity measureFfor nuclei in this region. In contrast, in thecold-symscenario, where symmetric fission treatment was applied, fission fragments were only deposited near the secondr-process peak, as indicated by the blue squares inFig. 5. In the absence of a direct contribution of fission fragments to the rare-earth region, the differences in the abundance at freeze-out caused by mass variations in region I persisted and ultimately influenced the final rare-earth peak abundance distribution. Thus, the sensitivity of region I increased again. However, the solar rare-earth peak abundance cannot be reproduced using the symmetric fission treatment.

Figure 5.(color online) Contribution of fission fragments to the abundance distribution in thecoldscenario. The red dots represent the increase in abundance due to fission deposition when using the GEF fission fragment distribution model, while the blue squares represent the contribution of fission fragments under the simple symmetric fission treatment.

When ther-process nuclear flow reached region II, the rare-earth peak was essentially fully formed, and its shape was highly sensitive to mass variations of nuclei in this region, which were located along ther-process path when $ \tau_{n\gamma}\approx 3\tau_\beta $ . As mentioned previously, in thehot2andcoldscenarios, the contribution of fission products eliminated the high sensitivity of nuclei along the earlyr-process path (region I). However, in the process of nuclear flow decay back to stability, the fission flow will gradually decrease over time, which means that the contribution of fission fragments to the rare-earth peak abundance will gradually decrease. We calculated the contribution of fission products to rare-earth peak abundances over time in thecoldscenario, as shown inFig. 6. $ \Delta \mathrm{Y}_{F}(t) $ is defined as

Figure 6.(color online) Evolution of the contribution of fission fragments to the rare-earth peak abundances over time in thecoldscenario. The shaded area represents the time interval for the formation of the rare-earth peak, from the time of ther-process freeze-out to the time when the neutron capture timescale $ \tau_{n\gamma}$ was approximately equal to three times theβ-decay timescale $ \tau_\beta$ .

where $ F_i^{(n)}(t) $ is the fission flow of a parent nucleusnat a certain momentt, and $ w_i(A) $ is the fission yield. We summed the contributions from all fissioning nuclei to the rare-earth mass region $ A=150-178 $ . $ \Delta \mathrm{Y}_{F}(t) $ represents the increase in the abundance of nuclei with $ A=150-178 $ owing to fission deposition. The results show that, following ther-process freeze-out, the contribution of fission to the rare-earth peak gradually decreased. For nuclei in region I, which were produced around the time of ther-process freeze-out, the strong deposition of fission products started to take effect at this stage and eventually erased the mass sensitivities. However, as the nuclear flow reached region II at a later time, the contribution of fission gradually decreased, and hence, the weakening effect of fission fragments on the difference of the abundance distribution weakened. Therefore, the nuclei in region II still had largerFvalues. In addition, we note a distinct spike in the contribution of fission fragments at approximately 0.5 s inFig. 6. This evolution closely follows the time-dependent behavior of the fission flow $ F_i^{(n)}(t) $ , and the observed feature resulted from two combined effects. First, the neutron-to-seed ratio decreased rapidly and fell below 1.0 around the time of ther-process freeze-out ( $ \sim $ 0.48 s). The sudden reduction in the free neutron population led to a sharp decline in neutron-induced fission. Following freeze-out,β-delayed neutron emission provided additional free neutrons, reviving the neutron-induced fission flow and contributing to the subsequent increase in the total fission flow. Second,β-delayed fission primarily occurred following freeze-out. As the relevant nuclei decayed and underwentβ-delayed fission, their contribution to the total fission flow became significant [29]. These two effects together led to the second hump observed at approximately 0.5 s in both the total fission flow and the contribution of fission fragments to the rare-earth peak abundances.

Previous studies [11,12] have suggested that the formation of the rare-earth peak occurs during the decay back to stability after ther-process freeze-out. In our earlier work [24], we further clarified that the rare-earth peak forms within the time interval between ther-process freeze-out and the point when the neutron capture timescale ( $ \tau_{n\gamma} $ ) becomes approximately three times longer than theβ-decay timescale ( $ \tau_\beta $ ). At this moment, when $ \tau_{n\gamma} \approx 3\tau_\beta $ , the rare-earth peak abundances are already close to their final values, indicating that the peak has essentially formed by then. The nuclei that have the most significant influence on the rare-earth peak are mainly distributed in two regions. Region I, located 20-30 neutrons away from stability, corresponds to the position of the nuclear flow atr-process freeze-out. Region II, 7-15 neutrons away from stability, aligns with ther-process path at the point of $ \tau_{n\gamma} \approx 3\tau_\beta $ .

Fig. 1shows the distribution of nuclei with high sensitivity measureFunder different astrophysical scenarios, with the sensitivity data in four different scenarios taken from Ref. [24]. As a supplement to this analysis, we further calculate the average sensitivity measureFacross thehot1,hot2, andcoldscenarios. The top 30 nuclei with the largest averaged sensitivityFvalues are listed inTable 1and are also indicated by light green shaded squares inFig. 1. It is evident that the nuclei with the highest averaged sensitivity values are primarily located in region II, because these nuclei exhibit consistently high sensitivity across multiple astrophysical scenarios. In contrast, region I contains only one nucleus, $ ^{152} {\rm{Te}}$ , with a relatively high averaged sensitivity. Although the sensitivity measureFof $ ^{152} {\rm{Te}}$ is low under thehot2andcoldscenarios, its exceptionally high sensitivity under thehot1scenario results in a large averageFvalue.

Figure 1.(Color Online) Distribution of nuclei with sensitivity measureFgreater than 200 in thehot1,hot2,cold, andcold-symscenarios. The region of measured nuclear masses from AME2020 [32] is overlaid with pink color and solid black squares are stable isotopes. The data of sensitivity measureFin four different scenarios are taken from Ref. [24]. The top 30 nuclei with the largest averaged sensitivityFvalues across thehot1,hot2, andcoldscenarios are indicated by light green shaded squares.

In the scenarios considered here, the equilibrium phases are maintained at the time ofr-process freeze-out. Thus, the final abundances are expected to be sensitive to changes in the masses of nuclei located along ther-process freeze-out path, as has been explained in detail in our previous work [24]. However, in thehot2andcoldscenarios, the nuclei in region I exhibit lowerFvalues, indicating that mass variations in this region have little or no impact on the final abundance distribution.

Nevertheless, we found that mass variations of certain nuclei in region I can lead to significant differences in the abundance pattern at the time ofr-process freeze-out, as shown inFig. 2. We selected two nuclei from region I as examples. In thehot1scenario, the mass variation of $ ^{152} {\rm{Te}}$ results in a noticeable difference in the abundance distribution at the freeze-out time. In the cold scenario, the mass variation of $ ^{172} {\rm{Ba}}$ also leads to significant differences at freeze-out. However, compared to thehot1case, the overall abundance in the rare-earth peak region is much lower. The situation in thehot2scenario is similar to thecoldscenario. To quantify the sensitivity of the abundance distribution at freeze-out time to nuclear masses, we calculated the sensitivity measure $ F_{freeze-out} $ , which reflects how mass variations influence the abundance pattern at freeze-out. The results are presented inFig. 3and4, where the left panels display the sensitivity measures, and the right panels present the corresponding abundance distributions atr-process freeze-out. The results indicate that, in the four scenarios considered here, region I corresponds to the region through which the nuclear flow passes at freeze-out. In thecoldscenario, the nuclear flow extends farther from stability compared to the hotr-process conditions. It can be clearly seen that nuclei with high sensitivity are distributed along ther-process freeze-out path, implying that mass variations of nuclei in this region strongly impact the abundance distribution at freeze-out across all four scenarios.

Figure 2.(Color Online) Abundance distributions at the time ofr-process freeze-out after nuclear mass variation in thehot1andcoldscenarios. The solid blue line represents the abundance distribution resulting from a mass increase of 1 MeV, while the dotted orange line corresponds to the abundance distribution resulting from a mass decrease of 1 MeV. The dots represent the solarr-process abundance pattern [33].

Figure 3.(Color Online) In thehot1andhot2scenarios, panels (a) and (b) correspond to the sensitivity measure $ F_{freeze-out} $ of the abundance distribution atr-process freeze-out to nuclear masses, and panels (c) and (d) correspond to the abundance distribution patterns at freeze-out. Nuclei with $ F_{freeze-out} $ values greater than 1000 are represented by a cross in panels (c) and (d).

Figure 4.(Color Online) Same asFig. 3, but with results in thecoldandcold-symscenarios.

In thehot1scenario, differences in the abundance distribution at freeze-out propagate through the later stage of nucleosynthesis, leading to significant variations in the final abundance pattern. However, in thehot2andcoldscenarios, even though mass variations of certain nuclei in region I cause considerable differences in the abundance distribution at freeze-out, their impact on the final abundance pattern is minimal or negligible. This is primarily due to the influence of fission fragments, which play an important role in shaping the rare-earth peak abundances. We calculated the contribution of fission products to the abundance in thecoldscenario as an example to prove this point, which is defined as

Here, we take the integrated fission flow $ f_{i}^{(n)} $ of a parent nucleusn, multiply it by the fission yield $ w_i (A) $ of the corresponding fission product with mass numberA, and then sum the contributions from all fissioning nuclei, whereirefers to a certain fission channel. The $ \Delta Y_{Fragment} $ represents the increase in the abundance of nuclei with mass numberAdue to fission deposition. Details of the relevant physical quantities can be found in Ref. [29]. The calculated contribution of fission fragments to abundance is shown inFig. 5. The results indicate that when using the GEF model, a significant number of fission fragments are distributed within the rare-earth peak mass region. In thehot2andcoldscenarios, the overall abundance in the rare-earth peak region is very low at freeze-out. However, as nucleosynthesis progresses, a substantial amount of fission fragments is deposited in this region, gradually increasing abundance in the rare-earth region. The contribution of fission fragments diminishes the variations in the rare-earth peak abundance distribution that were initially caused by nuclear mass changes. As a result, the impact of mass variations in region I is masked by the distribution of fission fragments, leading to a generally lower sensitivity measureFfor nuclei in this region. In contrast, under thecold-symscenario, where a symmetric fission treatment is applied, fission fragments are only deposited near the secondr-process peak, as indicated by the blue squares inFig. 5. In the absence of a direct contribution of fission fragments to the rare-earth region, the differences in the abundance at freeze-out caused by mass variations in region I persist and ultimately influence the final rare-earth peak abundance distribution. So, the sensitivity of region I is increased again. However, the solar rare-earth peak abundance cannot be reproduced by using the symmetric fission treatment.

Figure 5.(Color Online) Contribution of fission fragments to the abundance distribution in thecoldscenario. The red dots represent the increase in abundance due to fission deposition when using the GEF fission fragment distribution model, while the blue squares represent the contribution of fission fragments under the simple symmetric fission treatment.

When ther-process nuclear flow reaches region II, the rare-earth peak is essentially fully formed, and its shape is highly sensitive to mass variations of nuclei in this region, which are located along ther-process path at the time when $ \tau_{n\gamma}\approx 3\tau_\beta $ . As mentioned above, in thehot2andcoldscenarios, the contribution of fission products eliminates the high sensitivity of nuclei along the earlyr-process path (region I). However, in the process of nuclear flow decay back to stability, the fission flow will gradually decrease over time, which means that the contribution of fission fragments to the rare-earth peak abundance will gradually decrease. We calculated the contribution of fission products to rare-earth peak abundances over time in thecoldscenario, as shown inFig. 6. $ \Delta \mathrm{Y}_{F}(t) $ is defined as

Figure 6.(Color Online)Evolution of the contribution of fission fragments to the rare-earth peak abundances over time in thecoldscenario. The shaded area represents the time interval for the formation of the rare-earth peak, from the time ofr-process freeze-out to the time when the neutron capture timescale $ \tau_{n\gamma}$ is approximately equal to 3 times theβ-decay timescale $ \tau_\beta$ .

where $ F_i^{(n)}(t) $ is the fission flow of a parent nucleusnat a certain momentt, and $ w_i(A) $ is the fission yield. We sum the contributions from all fissioning nuclei to the rare-earth mass region $ A=150-178 $ . The $ \Delta \mathrm{Y}_{F}(t) $ represents the increase in the abundance of nuclei with $ A=150-178 $ due to fission deposition. The results show that after ther-process freeze-out, the contribution of fission to the rare-earth peak gradually decreases. For nuclei in region I, which are produced around the time ofr-process freeze-out, the strong deposition of fission products begins to take effect at this stage and eventually erases the mass sensitivities. However, as the nuclear flow reaches region II at a later time, the contribution of fission gradually decreases, and hence the weakening effect of fission fragments on the difference of abundance distribution becomes weaker. Therefore, nuclei in region II still have largerFvalues. In addition, we note a distinct spike in the contribution of fission fragments at around 0.5 s inFig. 6. This evolution closely follows the time-dependent behavior of the fission flow $ F_i^{(n)}(t) $ , and the observed feature results from two combined effects. First, the neutron-to-seed ratio drops rapidly and falls below 1.0 around the time ofr-process freeze-out ( $ \sim $ 0.48 s). The sudden reduction in the free neutron population leads to a sharp decline in neutron-induced fission. After freeze-out,β-delayed neutron emission provides additional free neutrons, reviving the neutron-induced fission flow and contributing to the subsequent increase in the total fission flow. Second,β-delayed fission primarily occurs after freeze-out. As the relevant nuclei decay and undergoβ-delayed fission, their contribution to the total fission flow becomes significant [29]. These two effects together lead to the second hump observed around 0.5 s in both the total fission flow and the contribution of fission fragments to the rare-earth peak abundances.

Previous studies [11,12] have suggested that the formation of the rare-earth peak occurs during the decay back to stability after ther-process freeze-out. In our earlier work [24], we further clarified that the rare-earth peak forms within the time interval between ther-process freeze-out and the point when the neutron capture timescale ( $ \tau_{n\gamma} $ ) becomes approximately three times longer than theβ-decay timescale ( $ \tau_\beta $ ). At this moment, when $ \tau_{n\gamma} \approx 3\tau_\beta $ , the rare-earth peak abundances are already close to their final values, indicating that the peak has essentially formed. The nuclei that have the most significant influence on the rare-earth peak are mainly distributed in two regions. Region I, located 20−30 neutrons away from stability, corresponds to the position of the nuclear flow at ther-process freeze-out. Region II, 7−15 neutrons away from stability, aligns with ther-process path at the point of $ \tau_{n\gamma} \approx 3\tau_\beta $ .

Figure 1shows the distribution of nuclei with high sensitivity measureFunder different astrophysical scenarios, with the sensitivity data in four different scenarios obtained from Ref. [24]. As a supplement to this analysis, we further calculated the average sensitivity measureFacross thehot1,hot2, andcoldscenarios. The top 30 nuclei with the largest averaged sensitivityFvalues are listed inTable 1and indicated by light green shaded squares inFig. 1. It is evident that the nuclei with the highest averaged sensitivity values were primarily located in region II, because these nuclei exhibited consistently high sensitivity across multiple astrophysical scenarios. In contrast, region I contained only one nucleus, $ ^{152} {\rm{Te}}$ , with a relatively high averaged sensitivity. Although the sensitivity measureFof $ ^{152} {\rm{Te}}$ was low under thehot2andcoldscenarios, its exceptionally high sensitivity under thehot1scenario resulted in a large averageFvalue.

Figure 1.(color online) Distribution of nuclei with a sensitivity measureFgreater than 200 in thehot1,hot2,cold, andcold-symscenarios. The region of measured nuclear masses from AME2020 [32] is overlaid with a pink color and the solid black squares are stable isotopes. The data of the sensitivity measureFin four different scenarios were obtained from Ref. [24]. The top 30 nuclei with the largest averaged sensitivityFvalues across thehot1,hot2, andcoldscenarios are indicated by light green shaded squares.

In the scenarios considered in this study, the equilibrium phases were maintained at the time of ther-process freeze-out. Thus, the final abundances were expected to be sensitive to changes in the masses of nuclei located along ther-process freeze-out path, as explained in detail in our previous work [24]. However, in thehot2andcoldscenarios, the nuclei in region I exhibited lowerFvalues, indicating that mass variations in this region had little or no impact on the final abundance distribution.

Nevertheless, we found that mass variations of certain nuclei in region I could lead to significant differences in the abundance pattern at the time of ther-process freeze-out, as shown inFig. 2. We selected two nuclei from region I as examples. In thehot1scenario, the mass variation of $ ^{152} {\rm{Te}}$ resulted in a noticeable difference in the abundance distribution at the freeze-out time. In thecoldscenario, the mass variation of $ ^{172} {\rm{Ba}}$ also led to significant differences at freeze-out. However, compared with thehot1case, the overall abundance in the rare-earth peak region was much lower. The situation in thehot2scenario was similar to that in thecoldscenario. To quantify the sensitivity of the abundance distribution at freeze-out time to nuclear masses, we calculated the sensitivity measure $ F_{\rm freeze-out} $ , which reflects how mass variations influence the abundance pattern at freeze-out. The results are presented inFigs. 3and4, where the left panels display the sensitivity measures and the right panels present the corresponding abundance distributions at ther-process freeze-out. The results indicate that, in the four considered scenarios, region I corresponded to the region through which the nuclear flow passed at freeze-out. In thecoldscenario, the nuclear flow extended farther from stability compared with the hotr-process conditions. It can be clearly observed that nuclei with high sensitivity were distributed along ther-process freeze-out path, implying that mass variations of nuclei in this region strongly impacted the abundance distribution at freeze-out across all four scenarios.

Figure 2.(color online) Abundance distributions at the time of ther-process freeze-out following nuclear mass variation in thehot1andcoldscenarios. The solid blue line represents the abundance distribution resulting from a mass increase of 1 MeV, while the dotted orange line corresponds to the abundance distribution resulting from a mass decrease of 1 MeV. The dots represent the solarr-process abundance pattern [33].

Figure 3.(color online) In thehot1andhot2scenarios, panels (a) and (b) correspond to the sensitivity measure $ F_{\rm freeze-out} $ of the abundance distribution at ther-process freeze-out to nuclear masses, whereas panels (c) and (d) correspond to the abundance distribution patterns at freeze-out. Nuclei with $ F_{\rm freeze-out} $ values greater than 1000 are represented by a cross in panels (c) and (d).

Figure 4.(color online) As inFig. 3, but with results for thecoldandcold-symscenarios.

In thehot1scenario, differences in the abundance distribution at freeze-out propagated through the later stage of nucleosynthesis, leading to significant variations in the final abundance pattern. However, in thehot2andcoldscenarios, even though mass variations of certain nuclei in region I caused considerable differences in the abundance distribution at freeze-out, their impact on the final abundance pattern was minimal or negligible. This is primarily owing to the influence of fission fragments, which play an important role in shaping the rare-earth peak abundances. We calculated the contribution of fission products to the abundance in thecoldscenario as an example to prove this point, as follows:

We took the integrated fission flow $ f_{i}^{(n)} $ of a parent nucleusn, multiplied it by the fission yield $ w_i (A) $ of the corresponding fission product with mass numberA, and then summed the contributions from all fissioning nuclei, whereirefers to a certain fission channel. $ \Delta Y_{\rm Fragment} $ represents the increase in the abundance of nuclei with mass numberAowing to fission deposition. Details of the relevant physical quantities can be found in Ref. [29]. The calculated contribution of the fission fragments to the abundance is shown inFig. 5. The results indicate that when using the GEF model, a significant number of fission fragments were distributed within the rare-earth peak mass region. In thehot2andcoldscenarios, the overall abundance in the rare-earth peak region was very low at freeze-out. However, as nucleosynthesis progresses, a substantial amount of fission fragments was deposited in this region, gradually increasing abundance in the rare-earth region. The contribution of fission fragments diminished the variations in the rare-earth peak abundance distribution that were initially caused by nuclear mass changes. As a result, the impact of mass variations in region I was masked by the distribution of fission fragments, leading to a generally lower sensitivity measureFfor nuclei in this region. In contrast, in thecold-symscenario, where symmetric fission treatment was applied, fission fragments were only deposited near the secondr-process peak, as indicated by the blue squares inFig. 5. In the absence of a direct contribution of fission fragments to the rare-earth region, the differences in the abundance at freeze-out caused by mass variations in region I persisted and ultimately influenced the final rare-earth peak abundance distribution. Thus, the sensitivity of region I increased again. However, the solar rare-earth peak abundance cannot be reproduced using the symmetric fission treatment.

Figure 5.(color online) Contribution of fission fragments to the abundance distribution in thecoldscenario. The red dots represent the increase in abundance due to fission deposition when using the GEF fission fragment distribution model, while the blue squares represent the contribution of fission fragments under the simple symmetric fission treatment.

When ther-process nuclear flow reached region II, the rare-earth peak was essentially fully formed, and its shape was highly sensitive to mass variations of nuclei in this region, which were located along ther-process path when $ \tau_{n\gamma}\approx 3\tau_\beta $ . As mentioned previously, in thehot2andcoldscenarios, the contribution of fission products eliminated the high sensitivity of nuclei along the earlyr-process path (region I). However, in the process of nuclear flow decay back to stability, the fission flow will gradually decrease over time, which means that the contribution of fission fragments to the rare-earth peak abundance will gradually decrease. We calculated the contribution of fission products to rare-earth peak abundances over time in thecoldscenario, as shown inFig. 6. $ \Delta \mathrm{Y}_{F}(t) $ is defined as

Figure 6.(color online) Evolution of the contribution of fission fragments to the rare-earth peak abundances over time in thecoldscenario. The shaded area represents the time interval for the formation of the rare-earth peak, from the time of ther-process freeze-out to the time when the neutron capture timescale $ \tau_{n\gamma}$ was approximately equal to three times theβ-decay timescale $ \tau_\beta$ .

where $ F_i^{(n)}(t) $ is the fission flow of a parent nucleusnat a certain momentt, and $ w_i(A) $ is the fission yield. We summed the contributions from all fissioning nuclei to the rare-earth mass region $ A=150-178 $ . $ \Delta \mathrm{Y}_{F}(t) $ represents the increase in the abundance of nuclei with $ A=150-178 $ owing to fission deposition. The results show that, following ther-process freeze-out, the contribution of fission to the rare-earth peak gradually decreased. For nuclei in region I, which were produced around the time of ther-process freeze-out, the strong deposition of fission products started to take effect at this stage and eventually erased the mass sensitivities. However, as the nuclear flow reached region II at a later time, the contribution of fission gradually decreased, and hence, the weakening effect of fission fragments on the difference of the abundance distribution weakened. Therefore, the nuclei in region II still had largerFvalues. In addition, we note a distinct spike in the contribution of fission fragments at approximately 0.5 s inFig. 6. This evolution closely follows the time-dependent behavior of the fission flow $ F_i^{(n)}(t) $ , and the observed feature resulted from two combined effects. First, the neutron-to-seed ratio decreased rapidly and fell below 1.0 around the time of ther-process freeze-out ( $ \sim $ 0.48 s). The sudden reduction in the free neutron population led to a sharp decline in neutron-induced fission. Following freeze-out,β-delayed neutron emission provided additional free neutrons, reviving the neutron-induced fission flow and contributing to the subsequent increase in the total fission flow. Second,β-delayed fission primarily occurred following freeze-out. As the relevant nuclei decayed and underwentβ-delayed fission, their contribution to the total fission flow became significant [29]. These two effects together led to the second hump observed at approximately 0.5 s in both the total fission flow and the contribution of fission fragments to the rare-earth peak abundances.

Previous studies [11,12] have suggested that the formation of the rare-earth peak occurs during the decay back to stability after ther-process freeze-out. In our earlier work [24], we further clarified that the rare-earth peak forms within the time interval between ther-process freeze-out and the point when the neutron capture timescale ( $ \tau_{n\gamma} $ ) becomes approximately three times longer than theβ-decay timescale ( $ \tau_\beta $ ). At this moment, when $ \tau_{n\gamma} \approx 3\tau_\beta $ , the rare-earth peak abundances are already close to their final values, indicating that the peak has essentially formed. The nuclei that have the most significant influence on the rare-earth peak are mainly distributed in two regions. Region I, located 20−30 neutrons away from stability, corresponds to the position of the nuclear flow at ther-process freeze-out. Region II, 7−15 neutrons away from stability, aligns with ther-process path at the point of $ \tau_{n\gamma} \approx 3\tau_\beta $ .

Figure 1shows the distribution of nuclei with high sensitivity measureFunder different astrophysical scenarios, with the sensitivity data in four different scenarios obtained from Ref. [24]. As a supplement to this analysis, we further calculated the average sensitivity measureFacross thehot1,hot2, andcoldscenarios. The top 30 nuclei with the largest averaged sensitivityFvalues are listed inTable 1and indicated by light green shaded squares inFig. 1. It is evident that the nuclei with the highest averaged sensitivity values were primarily located in region II, because these nuclei exhibited consistently high sensitivity across multiple astrophysical scenarios. In contrast, region I contained only one nucleus, $ ^{152} {\rm{Te}}$ , with a relatively high averaged sensitivity. Although the sensitivity measureFof $ ^{152} {\rm{Te}}$ was low under thehot2andcoldscenarios, its exceptionally high sensitivity under thehot1scenario resulted in a large averageFvalue.

Figure 1.(color online) Distribution of nuclei with a sensitivity measureFgreater than 200 in thehot1,hot2,cold, andcold-symscenarios. The region of measured nuclear masses from AME2020 [32] is overlaid with a pink color and the solid black squares are stable isotopes. The data of the sensitivity measureFin four different scenarios were obtained from Ref. [24]. The top 30 nuclei with the largest averaged sensitivityFvalues across thehot1,hot2, andcoldscenarios are indicated by light green shaded squares.

In the scenarios considered in this study, the equilibrium phases were maintained at the time of ther-process freeze-out. Thus, the final abundances were expected to be sensitive to changes in the masses of nuclei located along ther-process freeze-out path, as explained in detail in our previous work [24]. However, in thehot2andcoldscenarios, the nuclei in region I exhibited lowerFvalues, indicating that mass variations in this region had little or no impact on the final abundance distribution.

Nevertheless, we found that mass variations of certain nuclei in region I could lead to significant differences in the abundance pattern at the time of ther-process freeze-out, as shown inFig. 2. We selected two nuclei from region I as examples. In thehot1scenario, the mass variation of $ ^{152} {\rm{Te}}$ resulted in a noticeable difference in the abundance distribution at the freeze-out time. In thecoldscenario, the mass variation of $ ^{172} {\rm{Ba}}$ also led to significant differences at freeze-out. However, compared with thehot1case, the overall abundance in the rare-earth peak region was much lower. The situation in thehot2scenario was similar to that in thecoldscenario. To quantify the sensitivity of the abundance distribution at freeze-out time to nuclear masses, we calculated the sensitivity measure $ F_{\rm freeze-out} $ , which reflects how mass variations influence the abundance pattern at freeze-out. The results are presented inFigs. 3and4, where the left panels display the sensitivity measures and the right panels present the corresponding abundance distributions at ther-process freeze-out. The results indicate that, in the four considered scenarios, region I corresponded to the region through which the nuclear flow passed at freeze-out. In thecoldscenario, the nuclear flow extended farther from stability compared with the hotr-process conditions. It can be clearly observed that nuclei with high sensitivity were distributed along ther-process freeze-out path, implying that mass variations of nuclei in this region strongly impacted the abundance distribution at freeze-out across all four scenarios.

Figure 2.(color online) Abundance distributions at the time of ther-process freeze-out following nuclear mass variation in thehot1andcoldscenarios. The solid blue line represents the abundance distribution resulting from a mass increase of 1 MeV, while the dotted orange line corresponds to the abundance distribution resulting from a mass decrease of 1 MeV. The dots represent the solarr-process abundance pattern [33].

Figure 3.(color online) In thehot1andhot2scenarios, panels (a) and (b) correspond to the sensitivity measure $ F_{\rm freeze-out} $ of the abundance distribution at ther-process freeze-out to nuclear masses, whereas panels (c) and (d) correspond to the abundance distribution patterns at freeze-out. Nuclei with $ F_{\rm freeze-out} $ values greater than 1000 are represented by a cross in panels (c) and (d).

Figure 4.(color online) As inFig. 3, but with results for thecoldandcold-symscenarios.

In thehot1scenario, differences in the abundance distribution at freeze-out propagated through the later stage of nucleosynthesis, leading to significant variations in the final abundance pattern. However, in thehot2andcoldscenarios, even though mass variations of certain nuclei in region I caused considerable differences in the abundance distribution at freeze-out, their impact on the final abundance pattern was minimal or negligible. This is primarily owing to the influence of fission fragments, which play an important role in shaping the rare-earth peak abundances. We calculated the contribution of fission products to the abundance in thecoldscenario as an example to prove this point, as follows:

We took the integrated fission flow $ f_{i}^{(n)} $ of a parent nucleusn, multiplied it by the fission yield $ w_i (A) $ of the corresponding fission product with mass numberA, and then summed the contributions from all fissioning nuclei, whereirefers to a certain fission channel. $ \Delta Y_{\rm Fragment} $ represents the increase in the abundance of nuclei with mass numberAowing to fission deposition. Details of the relevant physical quantities can be found in Ref. [29]. The calculated contribution of the fission fragments to the abundance is shown inFig. 5. The results indicate that when using the GEF model, a significant number of fission fragments were distributed within the rare-earth peak mass region. In thehot2andcoldscenarios, the overall abundance in the rare-earth peak region was very low at freeze-out. However, as nucleosynthesis progresses, a substantial amount of fission fragments was deposited in this region, gradually increasing abundance in the rare-earth region. The contribution of fission fragments diminished the variations in the rare-earth peak abundance distribution that were initially caused by nuclear mass changes. As a result, the impact of mass variations in region I was masked by the distribution of fission fragments, leading to a generally lower sensitivity measureFfor nuclei in this region. In contrast, in thecold-symscenario, where symmetric fission treatment was applied, fission fragments were only deposited near the secondr-process peak, as indicated by the blue squares inFig. 5. In the absence of a direct contribution of fission fragments to the rare-earth region, the differences in the abundance at freeze-out caused by mass variations in region I persisted and ultimately influenced the final rare-earth peak abundance distribution. Thus, the sensitivity of region I increased again. However, the solar rare-earth peak abundance cannot be reproduced using the symmetric fission treatment.

Figure 5.(color online) Contribution of fission fragments to the abundance distribution in thecoldscenario. The red dots represent the increase in abundance due to fission deposition when using the GEF fission fragment distribution model, while the blue squares represent the contribution of fission fragments under the simple symmetric fission treatment.

When ther-process nuclear flow reached region II, the rare-earth peak was essentially fully formed, and its shape was highly sensitive to mass variations of nuclei in this region, which were located along ther-process path when $ \tau_{n\gamma}\approx 3\tau_\beta $ . As mentioned previously, in thehot2andcoldscenarios, the contribution of fission products eliminated the high sensitivity of nuclei along the earlyr-process path (region I). However, in the process of nuclear flow decay back to stability, the fission flow will gradually decrease over time, which means that the contribution of fission fragments to the rare-earth peak abundance will gradually decrease. We calculated the contribution of fission products to rare-earth peak abundances over time in thecoldscenario, as shown inFig. 6. $ \Delta \mathrm{Y}_{F}(t) $ is defined as

Figure 6.(color online) Evolution of the contribution of fission fragments to the rare-earth peak abundances over time in thecoldscenario. The shaded area represents the time interval for the formation of the rare-earth peak, from the time of ther-process freeze-out to the time when the neutron capture timescale $ \tau_{n\gamma}$ was approximately equal to three times theβ-decay timescale $ \tau_\beta$ .

where $ F_i^{(n)}(t) $ is the fission flow of a parent nucleusnat a certain momentt, and $ w_i(A) $ is the fission yield. We summed the contributions from all fissioning nuclei to the rare-earth mass region $ A=150-178 $ . $ \Delta \mathrm{Y}_{F}(t) $ represents the increase in the abundance of nuclei with $ A=150-178 $ owing to fission deposition. The results show that, following ther-process freeze-out, the contribution of fission to the rare-earth peak gradually decreased. For nuclei in region I, which were produced around the time of ther-process freeze-out, the strong deposition of fission products started to take effect at this stage and eventually erased the mass sensitivities. However, as the nuclear flow reached region II at a later time, the contribution of fission gradually decreased, and hence, the weakening effect of fission fragments on the difference of the abundance distribution weakened. Therefore, the nuclei in region II still had largerFvalues. In addition, we note a distinct spike in the contribution of fission fragments at approximately 0.5 s inFig. 6. This evolution closely follows the time-dependent behavior of the fission flow $ F_i^{(n)}(t) $ , and the observed feature resulted from two combined effects. First, the neutron-to-seed ratio decreased rapidly and fell below 1.0 around the time of ther-process freeze-out ( $ \sim $ 0.48 s). The sudden reduction in the free neutron population led to a sharp decline in neutron-induced fission. Following freeze-out,β-delayed neutron emission provided additional free neutrons, reviving the neutron-induced fission flow and contributing to the subsequent increase in the total fission flow. Second,β-delayed fission primarily occurred following freeze-out. As the relevant nuclei decayed and underwentβ-delayed fission, their contribution to the total fission flow became significant [29]. These two effects together led to the second hump observed at approximately 0.5 s in both the total fission flow and the contribution of fission fragments to the rare-earth peak abundances.

Based on the results of sensitivity studies in our previous work [24], we further analyzed the underlying reasons for the different distribution patterns of high-sensitivity nuclei across various astrophysical scenarios. The results showed that the mass variations of nuclei in region I (20−30 neutrons away from stability) had a significant impact on the abundance distribution at ther-process freeze-out across all four scenarios, highlighting the universality of their influence at this stage. However, in scenarios with extensive fission activity, the subsequent deposition of fission products into the rare-earth region started to take effect following freeze-out. Fission deposition effectively reset the local abundances in this region and suppressed the sensitivity to nuclear masses along ther-process freeze-out path. This process significantly reduced the uncertainty in the rare-earth peak abundances caused by mass variations in region I, producing a more robustr-process abundance distribution.

With time evolution, the fission flow in ther-process nucleosynthesis gradually declined, leading to a reduced contribution from fission deposition. As ther-process path moved towards stability at a later time, the weakening effect of fission fragments on the difference in the abundance distribution weakened. Consequently, the sensitivity of nuclear masses in region II (7−15 neutrons away from stability) remained less affected by fission fragments, allowing nuclei in this region to retain relatively high sensitivity. This study highlights the impact of fission on the sensitivity ofr-process abundances to nuclear masses, contributing to a better understanding of rare-earth peak formation and improving its effectiveness as a diagnostic for ther-process site.

Based on the results of sensitivity studies in our previous work [24], we further analyzed the underlying reasons for the different distribution patterns of high-sensitivity nuclei across various astrophysical scenarios. The results show that mass variations of nuclei in region I (20-30 neutrons away from stability) have a significant impact on the abundance distribution atr-process freeze-out across all four scenarios, highlighting the universality of their influence at this stage. However, in scenarios with extensive fission activity, the subsequent deposition of fission products into the rare-earth region begins to take effect after freeze-out. Fission deposition effectively resets the local abundances in this region and suppresses the sensitivity to nuclear masses along ther-process freeze-out path. This process significantly reduces the uncertainty in the rare-earth peak abundances caused by mass variations in region I, producing a more robustr-process abundance distribution.

With time evolution, the fission flow inr-process nucleosynthesis gradually declines, leading to a reduced contribution from fission deposition. As ther-process path moves toward stability at a later time, the weakening effect of fission fragments on the difference in abundance distribution becomes weaker. Consequently, the sensitivity of nuclear masses in region II (7-15 neutrons away from stability) remains less affected by fission fragments, allowing nuclei in this region to retain relatively high sensitivity. This study highlights the impact of fission on the sensitivity ofr-process abundances to nuclear masses, contributing to a better understanding of rare-earth peak formation and improving its effectiveness as a diagnostic for ther-process site.

Based on the results of sensitivity studies in our previous work [24], we further analyzed the underlying reasons for the different distribution patterns of high-sensitivity nuclei across various astrophysical scenarios. The results showed that the mass variations of nuclei in region I (20−30 neutrons away from stability) had a significant impact on the abundance distribution at ther-process freeze-out across all four scenarios, highlighting the universality of their influence at this stage. However, in scenarios with extensive fission activity, the subsequent deposition of fission products into the rare-earth region started to take effect following freeze-out. Fission deposition effectively reset the local abundances in this region and suppressed the sensitivity to nuclear masses along ther-process freeze-out path. This process significantly reduced the uncertainty in the rare-earth peak abundances caused by mass variations in region I, producing a more robustr-process abundance distribution.

With time evolution, the fission flow in ther-process nucleosynthesis gradually declined, leading to a reduced contribution from fission deposition. As ther-process path moved towards stability at a later time, the weakening effect of fission fragments on the difference in the abundance distribution weakened. Consequently, the sensitivity of nuclear masses in region II (7−15 neutrons away from stability) remained less affected by fission fragments, allowing nuclei in this region to retain relatively high sensitivity. This study highlights the impact of fission on the sensitivity ofr-process abundances to nuclear masses, contributing to a better understanding of rare-earth peak formation and improving its effectiveness as a diagnostic for ther-process site.

Based on the results of sensitivity studies in our previous work [24], we further analyzed the underlying reasons for the different distribution patterns of high-sensitivity nuclei across various astrophysical scenarios. The results showed that the mass variations of nuclei in region I (20−30 neutrons away from stability) had a significant impact on the abundance distribution at ther-process freeze-out across all four scenarios, highlighting the universality of their influence at this stage. However, in scenarios with extensive fission activity, the subsequent deposition of fission products into the rare-earth region started to take effect following freeze-out. Fission deposition effectively reset the local abundances in this region and suppressed the sensitivity to nuclear masses along ther-process freeze-out path. This process significantly reduced the uncertainty in the rare-earth peak abundances caused by mass variations in region I, producing a more robustr-process abundance distribution.

With time evolution, the fission flow in ther-process nucleosynthesis gradually declined, leading to a reduced contribution from fission deposition. As ther-process path moved towards stability at a later time, the weakening effect of fission fragments on the difference in the abundance distribution weakened. Consequently, the sensitivity of nuclear masses in region II (7−15 neutrons away from stability) remained less affected by fission fragments, allowing nuclei in this region to retain relatively high sensitivity. This study highlights the impact of fission on the sensitivity ofr-process abundances to nuclear masses, contributing to a better understanding of rare-earth peak formation and improving its effectiveness as a diagnostic for ther-process site.

The authors also want to thank the fruitful discussions with Prof. F. Q. Chen and Dr. W. L. Lv.

The authors also want to thank the fruitful discussions with Prof. F. Q. Chen and Dr. W. L. Lv.

The authors also want to thank the fruitful discussions with Prof. F. Q. Chen and Dr. W. L. Lv.
