Fusion and one-neutron stripping process for⁶Li +⁹⁴Zr system around the Coulomb Barrier

In the past several decades, the reactions induced by weakly bound nuclei around the Coulomb barrier have been extensively examined in both theoretical and experimental fields [1–6]. Due to the relatively strong cluster structure and low breakup threshold, the reaction mechanisms become more complicated when weakly bound nuclei are involved. These weakly bound nuclei include both unstable and stable types. Compared to unstable ones, the beam intensities of stable weakly bound nuclei are orders of magnitude higher. Thus, numerous experiments have been performed to explore the reaction mechanisms induced by stable weakly bound nuclei, especially⁶Li,⁷Li, and⁹Be.

Based on the systematic comparison of experimental results for the fusion process induced by⁶Li, it can be shown that the complete fusion (CF), defined by the fully captured of projectile by the target, is suppressed by $\sim$ 30% at energies above the Coulomb barrier when compared with the coupled channel (CC) calculation, which cannot consider the coupling of breakup reaction. When the cross section of incomplete fusion (ICF) process (only part of projectile is captured by the target) is added to the CF, the total fusion (TF) cross sections are in agreement with the CC calculation, indicating that the missing flux for CF process actually produces ICF residues [7–13]. Thus, the suppression factor can also be fully defined by experimental observables, specifically the ratio between CF and TF cross sections. However, the transfer process, particularly cluster or proton transfer, can produce the same residues as the ICF process, making it difficult to distinguish between these two processes experimentally. This point should be emphasized when dealing with any measured ICF cross section.

Furthermore, it is higly interesting to examine the coupling effect of transfer on the fusion or breakup process induced by the⁶Li. It is well known that⁶Li has a significantα+dstructure in the ground state. Hence, in many experimental studies, attempts have been made to determine the origin of large yieldedαparticles from the reaction. A series of publications [14–16] reported that the direct breakup provides only a small contribution, and the dominant contributor is the breakup following transfer, i.e., "resonant breakup". Meanwhile, the influence of resonant breakup on the CF process strongly depends on the lifetime of the resonant state produced in the transfer reaction. This dependence means that no solid conclusion can be drawn solely based on experimental results. Moreover, a recent study [17] proposed that the dominant process that leads to CF suppression is direct cluster transfer of weakly bound nuclei.

On the other hand, the neutron-transfer excitation functions do not drop as fast as the fusion excitation function at sub-barrier energies. This phenomenon has been observed in⁹Be +¹⁶⁹Tm,¹⁸¹Ta,¹⁸⁷Re [18] systems. On medium mass target nuclei, the one-neutron stripping cross section of⁶Li +⁹⁶Zr [19] and⁶Li +⁸⁹Y [20] were measured to investigate the effect of transfer on fusion. For⁶Li +⁹⁶Zr system, the one-neutron stripping cross sections are much smaller than the CF cross sections above the Coulomb barrier and exhibit the same magnitude as the CF cross section around the Coulomb barrier. For⁶Li +⁸⁹Y, it is concluded that the neutron transfer reaction may contribute significantly to the total reaction cross sections at energies close to and below the Coulomb barrier.

In this study, we report on an experimental study on⁶Li +⁹⁴Zr, showing all the measured CF, ICF, and one-neutron transfer cross sections around the Coulomb barrier. Hence, the complicated reaction mechanisms induced by⁶Li on medium mass target are investigated further. This paper is organized as follows: Sec. II describes the experimental results. The discussions and comparisons with the results of the theoretical calculations are presented in Sec. III. The summary is given in Sec. IV.

The⁶Li +⁹⁴Zr experiment was performed at HI-13 Tandem Accelerator of China Institute of Atomic Energy (CIAE) [21]. The⁶Li³⁺beams were produced at six energies corresponding to 29.9, 23.9, 21.9, 17.9, 15.8, and 13.8 MeV. This beam energy ranged from below to above the 16.4-MeV Coulomb barrier at the laboratory frame. The beam intensities were recorded by a Faraday cup placed after the target using a precision current-integrator device. The beam intensities varied from 17.1 to 36.7 enA during the entire experiment.

A 91.2% enriched⁹⁴ZrO₂foil with a thickness of 481 μg/cm²was used as the target. A 2.07-mg/cm²gold backing exists behind the target to stop all the residues. The⁹⁴Zr target was placed at the center of the HPGe detector array. The HPGe detector array was used to detectγrays emitted by reaction products and comprised 6 HPGe detectors surrounded by BGO crystal for Compton suppression (BGO-HPGe), 2 planar-HPGe, and 2 Clover. All the detectors are fixed at five angles: 2 BGO-HPGE and 2 Clover at 90°, 2 BGO-HPGe and 1 planar at 42°, 1 planar at 120°, 1 BGO-HPGe at 150°, and 1 BGO-HPGe at 153°. The efficiency and energy calibrations were realized by¹⁵²Eu and¹³³Ba sources with known radioactivity placed at the target position. The absolute efficiency of the entire detector array was 0.6% and the energy resolution was 3 keV at 1000 keV. The digital data acquisition system XIA was used to record the data. Detailed descriptions of this digital data acquisition system have been presented in Ref. [22].

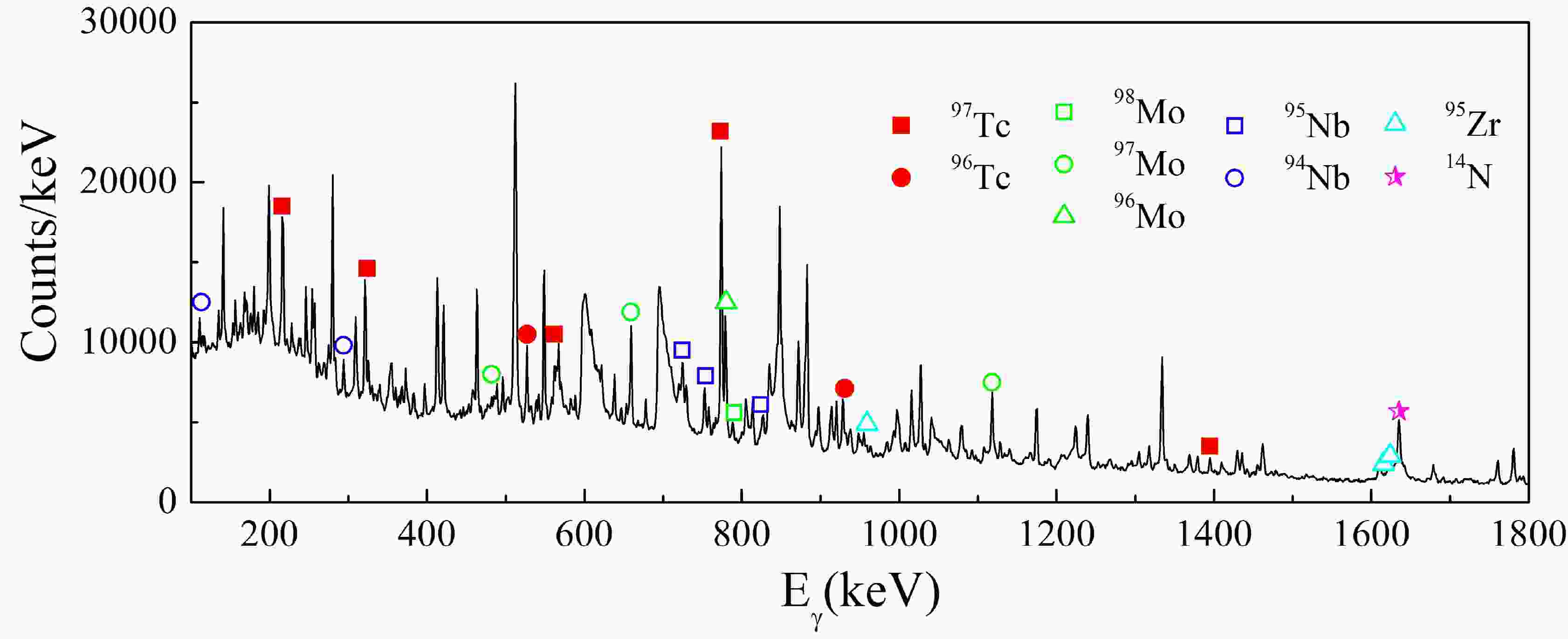

Figure 1shows a typical online singleγray spectrum atE_lab= 29.9 MeV. The identified characteristicγrays in^{97, 96}Tc,^{98, 97, 96}Mo, and^{95, 94}Nb, obtained from fusion process, can be observed clearly. The cross section for the onlineγmethod is calculated using this relation:

Figure 1.(color online) Typical singleγray spectrum atE_1ab= 29.9 MeV.

Specifically,ndenotes the number ofγtransitions feeding the ground state or long lived isomer for one residue.N_γidenotes the yield ofγtransitions. Furthermore, $ \varepsilon_{\gamma i } $ denotes the absolute efficiency of all detectors forγray.F_γidenotes the inner conversion electron rate. Additionally,N_BandN_Tdenote the total numbers of incident beam particles and target nuclei per unit area, respectively. The total uncertainty for cross section included statistical errors of the yields ofγrays, number of incident particles, and 5% systematic error of target thickness.

Here,γtransitions, which are solely used to obtain the cross section for each residue, are marked with different labels and listed in theTable 1. The measured cross sections of each residue are summarized inTable 2.

Residue	Transition	Eγ/keV
97Tc	$ 5/2^- \rightarrow 1/2^- $	561
	$ 5/2^+ \rightarrow 9/2^+ $	325
	$ 7/2^+ \rightarrow 9/2^+ $	216
	$ (9/2^+) \rightarrow 9/2^+ $	862
	$ 11/2^{(+)} \rightarrow 9/2^+ $	833
	$ 13/2^+ \rightarrow 9/2^+ $	773
	$ (13/2^+) \rightarrow 9/2^+ $	1393
96Tc	$ 7^+ \rightarrow 6^+ $	526
	$ 9^+ \rightarrow 7^+ $	927
98Mo	$ 2^+ \rightarrow 0^+ $	787
97Mo	$ 3/2^+ \rightarrow 5/2^+ $	481
	$ 7/2^+ \rightarrow 5/2^+ $	658
	$ 9/2^+ \rightarrow 5/2^+ $	1117
96Mo	$ 2^+ \rightarrow 0^+ $	778
95Nb	$ 7/2^+ \rightarrow 9/2^+ $	757
	$ 7/2^+ \rightarrow 9/2^+ $	724
	$ (13/2^+) \rightarrow 9/2^+ $	825
94Nb	$ (3)^+ \rightarrow 3^+ $	293
	$ (5)^+ \rightarrow 6^+ $	113
95Zr	$ 1/2^+ \rightarrow 5/2^+ $	954
	$ (3/2)^+ \rightarrow 5/2^+ $	1618
	$ (5/2^+) \rightarrow 5/2^+ $	1625

Table 1.Characteristicγrays used to extract cross sections.

Residue	29.9 MeV	23.9 MeV	21.9 MeV	17.9 MeV	15.8 MeV	13.8 MeV
97Tc	$ 375.7 \pm 20.4 $	$ 326.0 \pm 15.0 $	$ 220.4 \pm 9.5 $	$ 24.1 \pm 1.3 $	$ 3.7 \pm 0.2 $
96Tc	$ 93.3 \pm 6.2 $	$ 2.7 \pm 0.3 $
98Mo	$ 8.1 \pm 0.8 $	$ 18.1 \pm 1.7 $	$ 16.3 \pm 1.5 $
97Mo	$ 127.3 \pm 8.1 $	$ 84.1 \pm 5.1 $	$ 59.4 \pm 3.6 $	$ 12.0 \pm 0.7 $	$ 3.9 \pm 0.4 $
96Mo	$ 94.2 \pm 8.7 $	$ 26.6 \pm 2.5 $	$ 14.8 \pm 1.4 $	$ 5.0 \pm 0.5 $	$ 2.7 \pm 0.3 $	$ 1.9 \pm 0.2 $
95Nb	$ 62.2 \pm 3.5 $	$ 70.7 \pm 3.9 $	$ 66.6 \pm 3.6 $	$ 49.5 \pm 2.7 $	$ 23.0 \pm 1.3 $	$ 5.1 \pm 0.3 $
94Nb	$ 45.6 \pm 3.4 $	$ 26.2 \pm 1.9 $	$ 23.0 \pm 1.7 $	$ 0.8 \pm 0.1 $
TF	$ 806.3 \pm 24.9 $	$ 554.4 \pm 16.6 $	$ 400.4 \pm 11.2 $	$ 91.6 \pm 3.1 $	$ 33.3 \pm 1.3 $	$ 7.0 \pm 0.3 $
R	$ 85.7\pm 5.5\% $	$90.3 \pm 6.3\% $	$91.8 \pm 4.0\% $	$94.2 \pm 3.5\% $	$95 \pm 2.8\% $
CF	$ 547.4 \pm 43.0 $	$ 364.0 \pm 30.3 $	$ 240.1 \pm 14.8 $	$ 25.6 \pm 1.7 $	$ 3.9 \pm 0.2 $
ICF	$ 258.9 \pm 49.7 $	$ 190.4 \pm 34.6 $	$ 160.3 \pm 18.5 $	$ 65.9 \pm 3.5 $	$ 29.4 \pm 1.4 $	$ 7.0 \pm 0.3 $
95Zr (954 keV)	$ 15.3 \pm 2.7 $	$ 20.1 \pm 3.3 $	$ 18.4 \pm 2.8 $	$ 12.2 \pm 2.0 $	$ 6.5 \pm 1.1 $
95Zr (1618 keV)	$ 10.7 \pm 2.0 $	$ 13.5 \pm 2.3 $	$ 12.8 \pm 2.0 $	$ 10.3 \pm 1.7 $	$ 4.6 \pm 0.8 $
95Zr (1625 keV)	$ 13.8 \pm 2.5 $	$ 20.0 \pm 3.3 $	$ 19.0 \pm 3.0 $	$ 16.3 \pm 2.7 $	$ 7.8 \pm 1.3 $
95Zr (total)	$ 39.8 \pm 4.2 $	$ 53.6 \pm 5.2 $	$ 50.2 \pm 4.6 $	$ 38.8 \pm 3.8 $	$ 18.9 \pm 1.9 $

Table 2.Cross sections for each residue. The unit for a cross section is mb.

It should be noted that the level scheme for odd-odd nucleus is more complicated. Some low-lying states states of⁹⁶Tc and⁹⁴Nb, were not be counts in the data analysis. According to theoretical assessment(based on the method introduced in Ref. [23]), approximately 15% and 6% cross sections of⁹⁶Tc and⁹⁴Nb were disregarded, respectively.

In addition to the fusion reaction channels, the one-neutron stripping reaction channel was also observed in this experiment. For⁶Li +⁹⁴Zr system, the residue of one-neutron stripping process is⁹⁵Zr. The observedγtransitions of⁹⁵Zr are denoted inFig. 1and the details are listed inTable 1. In the experiment, the cascadingγtransitions of the 954, 1618 and 1625 keVγtransitions were not observed. It means the 954, 1618 and 1625 keV pure single nucleon states in⁹⁵Zr were populated which are consistent with the states observed in the single nucleon transfer reaction. If theβdecay of⁹⁵Y and fusion evaporation process populate the⁹⁵Zr, the de-excitedγtransition from the excited state with higher spin should be observed. Therefore, the influence of other reaction channels on⁹⁵Zr can be excluded. Correspondingly, the direct production cross sections of each excited state of⁹⁵Zr were derived by the yield of the corresponding decayγtransitions.

Based on the cross sections measured for each residue as listed before, the cross sections for different processes, such as CF and ICF, should be identified first. Then, a detailed discussion can be provided according to the systematic comparison or theoretical calculation. The following two subsections will show a detailed investigation on the fusion and one-neutron transfer process in the⁶Li +⁹⁴Zr reaction.

Before delving into details on the separation between CF and ICF process, the TF cross section can be easily derived by adding the cross sections of all fusion residues. The compound nucleus formed by the CF reaction between⁶Li and⁹⁴Zr is¹⁰⁰Tc. Specificially,¹⁰⁰Tc decays predominantly by 3n, 4nevaporation channels, generating⁹⁷Tc and⁹⁶Tc, respectively. It is well known that in this medium mass region, the CF compound nucleus can also evaporate charged particles, such as proton andα, producing same residues with ICF process. Therefore, the CF and ICF cannot be separated exactly when only relying on the experimental result.

Meanwhile, in fusion reaction, the ratio between different residues can be reasonably predicted via a statistical model [11,12] such as PACE4 [3].R= $\sum\sigma_{\rm Tc}^{\rm PACE}/\sigma_{\rm fus}^{\rm PACE}$ was obtained by the result from PACE4 calculation, showing the contribution of neutron evaporation channels from the compound nuclide (¹⁰⁰Tc) in the⁶Li +⁹⁴Zr complete fusion reaction. Here, $\sum\sigma_{\rm Tc}^{\rm PACE}$ is the sum of PACE4 predicted cross sections for Tc isotopes, and the $\sigma_{\rm fus}^{\rm PACE}$ represents the fusion cross section estimated by the same code. Accordingly, the experimental CF cross sections can be deduced by dividing the cumulative measured cross sections of Tc isotopes $\sigma^{\rm expt}_{\rm Tc}$ by ratio R. With the measured TF (as mentioned at the beginning the current subsection) as well as the deduced CF cross section, the cross section for ICF can be derived ICF = TF - CF. The ratio R calculated by PACE4 at different beam energy are shown inTable 2. The level density parameter was set asa=A/10 in the PACE4 calculation according to the systematic study performed in Ref. [24]. The error of R was introduced when a varied froma=A/9 toa=A/12 referring to the value in Refs. [25–27].

Hence, the deduced cross sections for TF, CF, and ICF for the current⁶Li +⁹⁴Zr reaction are summarized inTable 2andFig. 2. As mentioned in the introduction, the suppression factor of CF was obtained by the comparison with CC calculation without the coupling of breakup channel. In this case, the cross section of CC calculation is total fusion cross section. Hence, the suppression of CF can be obtained by the relative ratio of CF to TF. InFig. 2, it can be observed that there is 30% suppression of CF cross section above the Coulomb barrier when compared with the TF, which is consistent with the systematic behaviour for the fusion process induced by⁶Li. Additionally, it should be emphasized that the ICF cross-section may include contribution of some transfer processes due to the limit of the current experiment method, such as one proton stripping process.

Figure 2.(color online) Summary of CF, ICF cross sections obtained in the current⁶Li +⁹⁴Zr reaction.

Furthermore, the new cross sections are compared with that from⁶Li +⁹⁶Zr reaction (data obtained from Ref. [11]) with an emphasis on the above-barrier region. InFig. 3(c), it can be observed that the two systems exhibit quite similar TF cross sections even though the cross section for⁶Li +⁹⁶Zr system shows an anomalous increment at 26 MeV. However, the ICF cross section is significantly larger in⁶Li +⁹⁴Zr system as shown inFig. 3(b) among the whole measured energy region. This is consistent with the phenomenon that the CF cross section is slightly lower for⁶Li +⁹⁴Zr system at the above-barrier region as shown inFig. 3(a).

Figure 3.(color online) Comparison of different fusion processes between⁶Li+^{94, 96}Zr systems.

Considering the fact that the ICF cross section can be ill-defined in experiment since the other reaction channels may contribute to the same residues, such as single-proton transfer reaction (producing the same residues with the deuteron-captured ICF process by evaporating one neutron), which would affect the TF cross section as well. Thus, the best candidates for the systematic comparison would be the CF cross section which is solely deduced from Tc isotopes.Fig. 4compares the CF cross sections between⁶Li +^{90, 94, 96}Zr systems. Due to the dynamic effect from the coupling of breakup or transfer and the static effect originated from the deformation or cluster structure, the systematic study of fusion cross sections becomes quite difficult. As mentioned in Ref. [28], to obtain a better understanding of the contribution from the breakup process on the fusion reactions, induced by weakly bound nuclei, the reduced CF cross sectionsF(x) can be obtained by:

Figure 4.(color online) Systematic comparison of reduced CF cross sections between⁶Li +^{90, 94, 96}Zr systems.

where $ V_B $ , $ R_B $ , and $ \hbar\omega $ denote the barrier height, radius, and the curvature of the Coulomb barrier, respectively. Specifically, the data on⁶Li +^{90, 96}Zr systems are considered from Refs. [11,29]. All the optical barrier parameters for each system are calculated from São Paulo potential (SPP) [30]. The reduced CF cross sections of⁶Li +^{90, 94, 96}Zr are shown inFig. 4with their respective parameters. It can be shown that on^{90, 96}Zr target the behaviours are quite similar, but a significant lowering down effect has been clearly observed for⁹⁴Zr case. However, it is quite difficult to directly obtain the conclusion that it is easier for⁶Li to breakup before fusing with⁹⁴Zr even if the ICF cross section is larger. This is due to the fact that there could be some other possible reasons. For instance, if the proton transfer reaction of⁶Li beam on⁹⁴Zr target is enhanced due to some unknown reasons, the measured ICF cross section can also become larger in this case. It is not surprising that the reduced CF cross section for⁹⁴Zr case can match with the other two if the used optical parameters are slightly changed, such as increasing the $ V_B $ and decreasing the $ R_B $ and $ \hbar\omega $ . This can be related with the enhancement of the breakup effect. This may imply that the different breakup effects of⁹⁴Zr cause changes in the barrier distribution. However, to achieve a self-consistent explanation for the entire systematic check, a more detailed or even microscopic theoretical model is highly needed, one that can account for the minor differences between Zr isotopes and their contributions to the fusion process. This is certainly beyond the scope of the current paper.

Before ending the discussion of the current fusion reaction, we want to emphasize that a similar systematic study is also performed for fusion of³²S on^{90, 94, 96}Zr targets in Ref. [31]. The largest deviation, between the fusion cross sections from the experiment and coupled channel calculation considering the effect of different phonon excitations, occurred again for⁹⁴Zr case. Thus the sub-barrier fusion enhancement is also most obvious for³²S +⁹⁴Zr system. In Ref. [31], a potential reason is attributed to the coupling effect from the positiveQneutron transfer (PQNT). Furthermore, similar studies might be required for the studies of fusion induced by weakly bound nuclei among the above-barrier region.

In Ref. [19], the one-neutron stripping cross sections induced by⁶Li on the nearby target nuclei⁹⁶Zr were measured by the on-lineγmethod, in which only the statistic of two characteristicγrays were identified and collected. The theoretical description is much more complicated when compared with the typical (d,p) reaction given that the inner structure of⁶Li and coupling effect should be carefully considered. Furthermore, the spectroscopic amplitude is also quite an important factor. To date, there is still no experiment, which can confirm the angular distribution of the emitted⁵Li (need the coincident measurement of proton andα), the spectroscopic amplitude for each channel can only be derived from the shell model calculation with constrained model space and effective interaction.

In the current study, to obtain the one-neutron spectroscopic information of the target overlaps, the shell model calculation has been performed within a valence space includingπ(1 $ f_{5/2} $ , 2 $ p_{3/2} $ , 2 $ p_{1/2} $ , 1 $ g_{9/2} $ ) andν(1 $ f_{5/2} $ , 2 $ p_{3/2} $ , 2 $ p_{1/2} $ , 1 $ g_{9/2} $ , 1 $ g_{7/2} $ , 2 $ d_{5/2} $ , 2 $ d_{3/2} $ , 3 $ s_{15/2} $ , 1 $ h_{11/2} $ ) orbitals. Given the limitation of computation power, no neutron is allowed to be excited across theN=50 major shell. The nucleon-nucleon interaction in the $ f_{5/2} p_{1/2} p_{3/2} g_{9/2} $ shell applies directly in the JUN45 interaction [32], while the neutron-neutron interaction in the $ g_{7/2} d_{3/2} d_{5/2}s_{1/2} h_{11/2} $ shell and the proton-neutron interaction across the shells are derived from the monopole based universal interaction +M3Y LS [33,34].

Figure 5compares the experimental observed level scheme in⁹⁵Zr with the shell model calculation, showing reasonable agreement with each other. It should be noted that the experimentally observed 1625-keV level in⁹⁵Zr is produced quite strongly in the current one-neutron stripping process. On the other hand, the same level is also observed very clearly in the⁹⁴Zr (d,p)⁹⁵Zr reaction [35]. Even if its spin-parity is still not clear in the adopted value on NNDC [36], this 1625-keV level most likely has a single-particle nature. As shown inFig. 5, only considering the energy of level, the spin-parity is tentatively assigned to (5/2⁺) because in the shell model calculation the $ 5/2^+_2 $ state at 1517 keV is the only remaining level, which cannot be associated to any known experimental levels in this excitation energy region. Furthermore, it should be noted that two 3/2⁺levels have been predicted in the current shell model calculation, one at 1426 keV while the other located at 1944 keV. If we only rely on the energy level, the one at 1426 keV should correspond to the experimentally measured (3/2⁺) level at 1618 keV. However, through the following discussion on the one-neutron stripping cross section, it becomes apparent that the predicted cross section is highly sensitive to the nature of the produced states in⁹⁵Zr. This sensitivity raises questions about the current shell model calculations as well.

Figure 5.Comparison of experimental and shell model results.

The theoretical calculation for the one-neutron stripping process in⁶Li +⁹⁴Zr system was obtained by performing the coupled reaction channel (CRC) method using the Fresco code [37]. The São Paulo double folding potential (SPP) is used in both real and imaginary parts (U= (1.0 + iN_i)V_SP) of the optical potential. Furthermore,N_idenotes the strength coefficient of the imaginary part. The value ofN_i= 0.60 was used to account for the loss of flux due to the breakup channel or the coupling to continuum states, as mentioned in Refs. [38,39]. For the outgoing partition, strength coefficient was also set equal to 0.78. This coefficient was proved to be appropriate for describing the elastic scattering cross section for many systems in a wide energy interval [40]. The single-particle wave functions were derived using Woods-Saxon potentials for the nuclear interactions in the intrinsic Hamiltonian. The depths of the Woods-Saxon potentials were varied to fit the experimental one-neutron binding energies. Furthermore, the reduced radius and diffuseness were set to 1.25 and 0.65 fm, respectively, for both the⁶Li projectile and⁹⁴Zr target. The collective states ( $ 2^+_1 $ and $ 4^+_1 $ ) of the target could be considered in the CRC calculation.Fig. 6shows the overlap of target and projectile. The spectroscopic amplitudes used in the CRC calculation concerning between⁹⁴Zr and⁹⁵Zr obtained from the aforementioned shell model calculation are shown inTable 3. For the projectile overlap, the spectroscopic amplitudes for 1⁺and 3⁺states of⁶Li were both set to 1.0.

Figure 6.Coupling scheme for the target and projectile overlaps.

Initial states	νorbital	Final states	Spec. amp.
94Zr 0+	2s1/2	95Zr $1/2 ^+_1 $	0.9668
	1d3/2	95Zr $3/2 ^+_1 $	0.1393
	1d3/2	95Zr $3/2 ^+_2 $	−0.8800
	1d5/2	95Zr $5/2 ^+_2 $	−0.0910
94Zr $2 ^+_1 $	1d5/2	95Zr $1/2 ^+_1 $	0.1816
	1d3/2	95Zr $1/2 ^+_1 $	0.0191
	0g7/2	95Zr $3/2 ^+_1 $	0.0177
	1d5/2	95Zr $3/2 ^+_1 $	−0.0127
	1d3/2	95Zr $3/2 ^+_1 $	−0.1058
	2s1/2	95Zr $3/2 ^+_1 $	−0.9433
	0g7/2	95Zr $3/2 ^+_2 $	0.0605
	1d5/2	95Zr $3/2 ^+_2 $	−0.0980
	1d3/2	95Zr $3/2 ^+_2 $	0.3673
	2s1/2	95Zr $3/2 ^+_2 $	−0.1870
	0g7/2	95Zr $5/2 ^+_2 $	0.0225
	1d5/2	95Zr $5/2 ^+_2 $	0.1355
	1d3/2	95Zr $5/2 ^+_2 $	0.0053
	2s1/2	95Zr $5/2 ^+_2 $	−0.9520
94Zr $4 ^+_1 $	0g7/2	95Zr $1/2 ^+_1 $	−0.0167
	0g7/2	95Zr $3/2 ^+_1 $	−0.0145
	1d5/2	95Zr $3/2 ^+_1 $	−0.0074
	2s1/2	95Zr $3/2 ^+_1 $	−0.0145
	0g7/2	95Zr $3/2 ^+_2 $	0.0130
	1d5/2	95Zr $3/2 ^+_2 $	0.0378
	0g7/2	95Zr $5/2 ^+_2 $	−0.0276
	1d5/2	95Zr $5/2 ^+_2 $	−0.1768
	1d3/2	95Zr $5/2 ^+_2 $	−0.0166

Table 3.Spectroscopic amplitudes for target <⁹⁴Zr|⁹⁵Zr> overlap.

InFig. 7, the CRC calculation is compared with experimental results in the 16–30 MeV beam-energy region. First, it can be observed that, with the change in beam energy, both the calculated and experimental results do not change as rapidly as in the fusion process shown inFig. 2, showing a similar behaviour with the one-neutron stripping process induced by⁶Li on nearby targets such as⁹⁶Zr [19] and⁸⁹Y [20].

Figure 7.(color online) Comparison of experimental one-neutron stripping cross section with calculations for the⁶Li +⁹⁴Zr reaction.

Based on the details inFig. 7, it can be determined that this is the first time the direct production of each level is compared with the CRC calculation, instead of showing a summed one-neutron stripping cross section as in Refs. [18–20,41]. The new comparison probes not only the reaction mechanism, but also the nature of each observed excited state in⁹⁵Zr. In the experimental side, the productions of $1/2 ^{+}_1 $ , $(3/2) ^{+}_1 $ , and ( $5/2 ^{+}_2 $ ) states are similar to each other among the whole energy region. Meanwhile, from the shell model and CRC calculation, the cross sections of $1/2 ^{+}_1 $ (SM) and $3/2 ^{+}_2 $ (SM) states are orders of magnitude higher than those of $3/2 ^{+}_1 $ (SM) and $5/2 ^{+}_2 $ (SM). This is also consistent with the fact that the shell model predicts $1/2 ^{+}_1 $ (SM) and $3/2 ^{+}_2 $ (SM) states, which are single-particle nature in⁹⁵Zr,i.e.,ν(s_1/2) andν(d_3/2) coupled with the⁹⁴Zr ground state, respectively. The argument can be found inTable 3, in which the corresponding spectroscopic amplitudes are almost 1 for both cases. Therefore, referring back toFig. 5, we suggest that the $3/2 ^{+}_2 $ (SM) state, predicted by shell model calculation, should match the experimental measured (3/2)⁺level at 1618 keV. It should be noted that the shell model predicted $3/2 ^{+}_1 $ (SM) state is the coupling betweenν(s_1/2) and⁹⁴Zr 2⁺state, which can be observed from the spectroscopic amplitude inTable 3.

It is very interesting to continue the discussion on the measured ( $5/2 ^{+}_2 $ ) state whose cross section is comparable to the other two single-particle states at 954 and 1618 keV. This suggests that this is another single-particle state. However, calculation for all the other remaining states fails to reproduce such high cross section. Based on shell model point of view, the remaining possible single-particle states would have the nature of⁹⁴Zr 0⁺state coupled withν(g_7/2) andν(d_5/2) orbitals. The latter one is the configuration of the ground state of⁹⁵Zr, and the former cannot be found in the current shell model calculation with the excitation energy lower than 2 MeV. Thus, the discrepancy between the experiment and theoretical calculation might come from many aspects: (1) In shell model calculation, the interaction as well as the effective single-particle energies should be adjusted or the core-excitation might be required for a better description of the observed level scheme; (2) In the CRC model, the coupling effect is not considered perfectly, especially for the coupling between the excited states and ground state in the target nuclei; (3) In experiment, there are many unknown but weak transitions that feed the 1625-keV level. However, they are not visible in the current analysis, leading to a mismatch in the comparison. Considering the event for the single-particle level at 954 and 1618 keV, there is still an overall overestimation for the cross sections as shown inFig. 7, leading to a conclusion that further investigation on this topic is highly desired.

In this study, CF, ICF, TF, and one-neutron stripping cross sections for⁶Li +⁹⁴Zr system were measured at energies close to the Coulomb barrier by the onlineγ-ray method. For fusion process, 30% suppression was observed for CF cross section above the Coulomb barrier when compared with the TF. The systematic comparison with CF cross sections of⁶Li +^{90, 94, 96}Zr systems was performed, showing that the breakup of⁶Li might differ from⁹⁴Zr. For the one-neutron stripping process, the production cross sections of each produced level are extracted and compared with CRC calculation for the first time. The calculations provided similar cross section with the experimental results of 954- and 1618-keV level, but the calculations still overestimate the cross section for 954- and 1618-keV level when compared with experimental results. For the 1625-keV level, the calculations are orders of magnitude higher than the experimental cross section. Thus, the calculations fail to reproduce the cross section of 1625-keV level. According to the comparison, the single-particle nature of the final states can be investigated. Additionally, further study is required to clarify the full reaction mechanism of one-neutron stripping process induced by⁶Li.

The authors are grateful to the crew of the HI-13 tandem accelerator at the China Institute of Atomic Energy for steady operation of the accelerator and Nuclear Astrophysics Group of China Institute of Atomic Energy who provided the⁶Li ion source for us.
