α-cluster decay from²⁴Mg resonances produced in the¹²C(¹⁶O,²⁴Mg)αreaction

Clustering is a fundamental phenomenon of the nuclear structure, which tends to emerge around the corresponding cluster-separation threshold and may persist to higher excitation energies [1–5]. Originally, inclusive missing-mass measurements were used to speculate the possible cluster structure by excluding the states already classified into single-particle systematics [2,5]. Over the past two decades, the coincident measurement of decay fragments has allowed the selection and reconstruction of resonant states that possess relatively large cluster probabilities, therefore avoiding the high level density of single-particle-type states [5,6]. To date, considerable theoretical and experimental research has been devoted to the study of cluster configurations in neutron-rich beryllium, carbon, and oxygen isotopes [7–22].

Moving to heavier nuclei, clustering in $ ^{24} $ Mg is interesting because of not only the richness of its cluster configurations, but also its role in nuclear astrophysics associated with the formation of elements in stars, such as carbon burning [23,24]. The cluster configurations of $ ^{24} $ Mg includeα+ $ ^{20} $ Ne, $ ^{12} $ C + $ ^{12} $ C, $ ^{16} $ O + 2α, $ ^{12} $ C + 3α, and the 6αcondensation state, with increasing separation thresholds at 9.32, 13.93, 14.05, 21.21, and 28.48 MeV, respectively. These configurations have been investigated theoretically and experimentally but with limited robust outcomes, especially in the high excitation region [25–41].

Oneαemission (α+ $ ^{20} $ Ne) corresponds to the lowest separation energy among all the cluster-decay channels of $ ^{24} $ Mg and hence should appear strongly in measurements. It is thus important for theoretical models to correctly describe theα+ $ ^{20} $ Ne structure in $ ^{24} $ Mg together with the associated decay paths and widths before being applied to other more complicated channels. So far, several experiments have identified a number ofα+ $ ^{20} $ Ne clustering states in $ ^{24} $ Mg for excitation energies below 18.5 MeV, as summarized in Refs. [42,43] and comparatively listed in the last column ofTable 1. These measurements were inclusive and generated significantly more states than those with strong clustering structures. To be more selective, it is necessary to detect and identify the decayαparticle or $ ^{20} $ Ne fragment. This was once experimentally realized and reported in several conferences [40,44], where a few $ 0^+ $ states were tentatively allocated, as also listed inTable 1.

This study						AMD [31]			Inelastic exp.			Resonant exp. [42]
$E_{x}/$	Γ/	Relative decay width				$E_{x}/$	$J_{\pi}$		$E_{x}/$	$J_{\pi}$		$E_{x}/$	$J_{\pi}$
MeV	keV	$^{20}$ Ne (g.s.)	$^{20}$ Ne (2 $^{+}$ )	$^{20}$ Ne (4 $^{+}$ )		MeV			MeV			MeV
12.6 (1)	260 (20)	1.00										12.578	2 $^{+}$
13.1 (1)	140 (20)	0.56	0.44			13.2	0 $_{3}^{+}$		13.1 [44]	0 $^{+}$		13.089	2 $^{+}$
13.7 (1)	180 (30)	0.42	0.58						13.79 (1) [40]			13.680
14.1 (1)	220 (20)	0.06	0.94									14.084	not 2 $^{+}$
14.3 (1)	90 (20)	0.47	0.53									14.348	3-
14.8 (1)	150 (30)	0.02	0.98									14.863	2 $^{+}$
15.3 (1)	240 (20)	0.13	0.87			15.3	0 $_{8}^{+}$		15.33 (3) [40]			15.347	$4^{+}$
16.7 (1)	340 (10)	0.11	0.83	0.06								16.666	even
17.2 (1)	300 (10)	0.19		0.81								17.133	5 $^{-}$
17.6 (1)	290 (80)	1.00										17.615	5 $^{-}$
17.9 (1)	90 (70)	0.26	0.58	0.16								17.830	not 4 $^{+}$
18.1 (1)	120 (90)	0.28	0.64	0.08								18.149	5 $^{-}$
18.3 (1)	140 (120)	0.15	0.85									18.320	0 $^{+}$ ,6 $^{+}$
19.3 (1)	300 (20)		0.30	0.70
20.1 (1)	300 (50)	0.14	0.48	0.38
20.3 (1)	180 (10)	0.06	0.03	0.91
20.6 (1)	100 (40)	0.13	0.13	0.74
21.0 (1)	510 (60)			1.00
21.5 (1)	380 (20)	0.08	0.61	0.31
21.7 (1)	140 (60)	0.12	0.44	0.44
21.9 (1)	370 (20)	0.09	0.11	0.80
22.9 (1)	480 (50)	0.63	0.37
23.1 (1)	190 (50)	0.03	0.88	0.09
23.4 (1)	320 (40)		0.55	0.45
24.4 (1)	890 (80)	0.06	0.55	0.39
24.5 (1)	480 (30)	0.10		0.90
25.2 (1)	380 (36)	0.12	0.52	0.36
26.1 (1)	630 (40)	0.02	0.29	0.69

Table 1.Summary of the resonant states of $^{24}$ Mg reconstructed from theα+ $^{20}$ Ne decay channel. For comparison, the corresponding results from previous AMD calculations and inelastic or resonant scattering measurements are also presented.

In this paper, we present a new measurement of the reaction-decay process $ ^{16} $ O( $ ^{12} $ C, $ ^{24} $ Mg $ \rightarrow $ α+ $ ^{20} $ Ne)αfor $ ^{24} $ Mg excitation up to 30 MeV. The coincidentally detected data allowed us to reconstruct clustering resonant states according to the decay paths related to various final states of the $ ^{20} $ Ne fragment. The results may be important as a benchmark for the future theoretical calculations.

The experiment was performed at the HI-13 tandem accelerator at the China Institute of Atomic Energy (CIAE) in Beijing. A 96-MeV $ ^{16} $ O beam with an intensity of approximately 4.5 enA was incident on a 220μg/cm $ ^{2} $ (0.98μm) self-supporting $ ^{\rm nat.} $ C target. The transfer reaction $ ^{12} $ C( $ ^{16} $ O, $ ^{24} $ Mg $ ^{*} $ )αwas used to populate the high lying states in $ ^{24} $ Mg. Both recoil and decayαparticles were detected by an array of eight position sensitive charged-particle telescopes, namely L0 $ \sim $ 3 and R0 $ \sim $ 3, which were symmetrically placed on both sides of the beam axis, as schematically displayed inFig. 1(a).

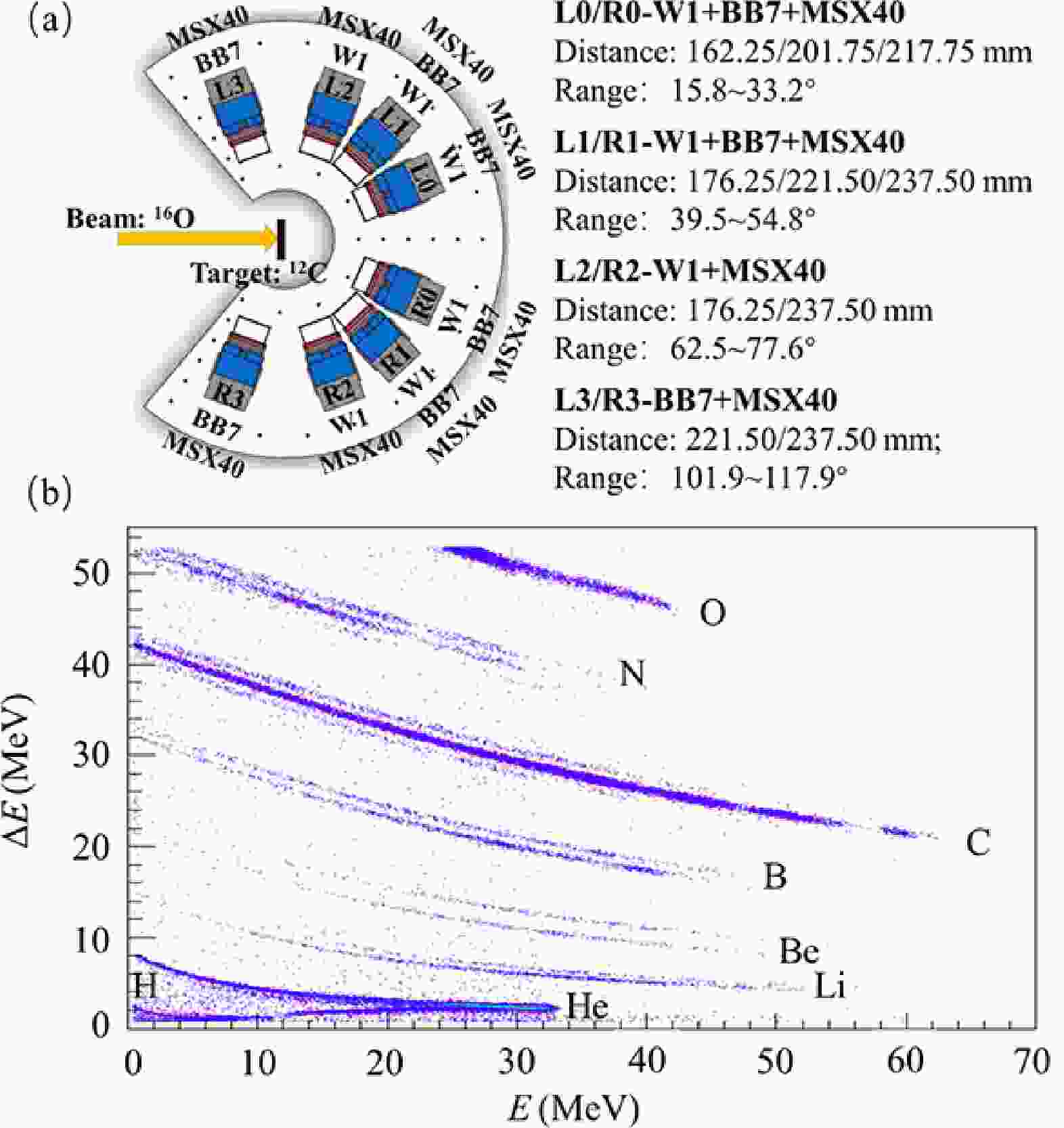

Figure 1.(color online) (a) Schematic view of the experimental setup. The distances of the detector layers, such as W1+BB7+MSX40, for each telescope pair, such as L0/R0, are indicated along with the corresponding angular coverage of the telescope. (b) Particle identification using the standard method of the energy loss ( $\Delta E$ ) versus the remaining energy (E) taken from one pixel of the L0-DSSDs.

Two forward telescopes (L0 and R0) were centered at 24 $ ^{\circ} $ with respect to the beam direction and placed at a distance of 162.25 mm from the target center. Each consisted of two layers of double-sided silicon strip detectors (DSSDs) with thicknesses of approximately 40 μm (W1) and 500 μm (BB7) and one large-size silicon detector (SSD) with a thickness of approximately 1500 μm (MSX40). The active areas were 50 mm $ \times $ 50 mm for W1 and 64 mm $ \times $ 64 mm for BB7 and MSX40. For the DSSDs, the front and back sides were segmented into 16 (for W1) or 32 (for BB7) strips, providing good two-dimensional position resolutions and the ability to record multi-hit events in one telescope. L1/R1 had the same composition as L0/R0 but were centered at 47 $ ^{\circ} $ and placed at a distance of 176.25 mm. L2 (or R2) was composed of one DSSD-W1 and one SSD and centered at 78 $ ^{\circ} $ . L3 (or R3) consisted of one DSSD-BB7 and one SSD, centered at 110 $ ^{\circ} $ .

The energy match for all silicon strips in one DSSD can be achieved using the uniform calibration method described in Ref. [45]. Absolute energy calibration was performed using anα-particle source with three energy components (5.155, 5.486, and 5.805 MeV) and an elastically scattered $ ^{7} $ Li particle from a thin $ ^{197} $ Au target [16]. The typical energy resolutions of the silicon detectors were less than 1.0% for a 5.805-MeVαparticle. The position resolutions can be determined by the respective strip widths.

The timing signals from the strip detectors were also recorded, which can be used to discard most accidentally coincident events. This is important because the strips close to the beam axis sustained a high counting rate. As depicted inFig. 1(b), good particle identification performance has been achieved for light isotopes after applying suitable conditions on the coincidence time, as well as those on the track information across several silicon layers [20].

Twoαparticles from the targeted reaction $ ^{12} $ C( $ ^{16} $ O,α+ $ ^{20} $ Ne)α, namely, the decay and recoil particles, can also be discriminated to a large extent according to kinematics, subject to a limit on the excitation energy.Figure 2shows the simulated energy vs angle distribution for the two types ofαparticles, assuming an excitation energy of 26.0 MeV in $ ^{24} $ Mg and 4.248 MeV in the $ ^{20} $ Ne fragment. In the plot, the black solid line represents the recoilαparticles, whereas the red band represents the decayαparticles. The black line tended to approach the red band when the excitation energy in $ ^{24} $ Mg was increased. The critical energy appeared at approximately 30 MeV, below which the two sources ofαparticles were clearly distinguished. Hence, in the present study, we only extracted resonances below 30 MeV.

Figure 2.(color online) Relationship between energy and angle (Lab) for the recoilαparticles (black solid line) and decayαparticles originating from excited $^{24}$ Mg (26 MeV) and accompanied by $^{20}$ Ne (4.248 MeV) (red band).

Once two out of three final-state particles were identified using the $ \Delta E-E $ method, the kinematic quantities of the third particle could be deduced according to energy and momentum conservation [46]. For the reaction $ ^{12} $ C( $ ^{16} $ O, $ ^{24} $ Mg $ \rightarrow $ α+ $ ^{20} $ Ne)α, the heavier $ ^{20} $ Ne fragment could not be directly identified from the detection because it should have been stopped in the first DSSD layer. Therefore, the resonant states of $ ^{24} $ Mg could only be reconstructed using the detected decayαparticle and deduced $ ^{20} $ Ne fragment.

The reactionQvalue is defined by the mass deficit between the initial and final particles and is therefore useful in determining the reaction channels. Equivalently, it can be calculated from the energy released during the reaction:

where $ E_{^{20}{\rm Ne}} $ represents the deduced value.Figure 3shows the excellent resolution of theQ-value spectrum in which the ground state ( $ Q_{{\rm ggg}}\sim $ 2.540 MeV), first excited state (excitation energy at $ E_{x}\sim $ 1.634 MeV and spin-parity of 2 $ ^{+} $ ), and second excited state ( $ E_{x}\sim $ 4.248 MeV, 4 $ ^{+} $ ) of $ ^{20} $ Ne can be clearly discriminated, corresponding to different decay paths. For $ E_{x} $ ( $ ^{20} $ Ne) $ > $ 5 Mev ( $ Q < -7 $ MeV), there are many close-by states in $ ^{20} $ Ne, which were indistinguishable in theQ-value spectrum and labeled by "?" in the figure. We note that the goodQ-value resolution is attributed to the excellent energy resolutions for the incident beam and the silicon detector, as well as to the small energy loss in the target [14].

Figure 3.(color online)Q-value spectrum for the reaction $^{12}$ C( $^{16}$ O, $^{24}$ Mg $\rightarrow $ α+ $^{20}$ Ne)α, calculated using the energies of the detected decay and recoilαparticles and the deduced $^{20}$ Ne fragment. The peaks in the spectrum are associated with the ground and excited states (as marked) of the $^{20}$ Ne fragment.

Using the detected decayαparticle and the deduced $ ^{20} $ Ne fragment, the relative energy (or decay energy) of the resonances in $ ^{24} $ Mg can be reconstructed according to the standard invariant mass (IM) method [8,14,15,20]. A contamination channel arises from the reaction $ ^{12} $ C( $ ^{16} $ O, $ ^{8} $ Be $ \rightarrow $ α+α) $ ^{20} $ Ne, which has the same final mass combination and hence cannot be eliminated by theQ-value selection. We checked this contamination channel using the two-dimensional Dalitz-plot [18,47] corresponding to the reconstruction of $ ^{24} $ Mg versus $ ^{8} $ Be. It was found that the formation of $ ^8 $ Be presents some background for $ ^{24} $ Mg-states at $ E^* > $ 20 MeV. In the data analysis, we cut off events with $ E_{^{8}\rm{Be}}^* < $ 3 MeV to improve the signal-to-background ratio. The same cut was also applied to the efficiency simulation (see below).

InFig. 4(a-c), we plotted three excitation-energy (relative energy plus the corresponding separation energy) spectra for $ ^{24} $ Mg, conditioned by the highest threeQ-value peaks, as shown inFig. 2. Each spectrum was fitted by a number of resonance peaks plus a smooth varying continuum background [14,48]. The peak positions were initialized according to the previously reported results, the actually obtained spectrum shape, and the consistency between spectra for different decay paths, as presented inFig. 4(a), (b), and (c). During the fitting procedure, the corresponding peak centroid and width for one resonance in $ ^{24} $ Mg decaying into different final states of $ ^{20} $ Ne were kept the same. Each peak in the figure is a convolution of the Breit-Wigner (BW) form with the Gaussian-type energy-resolution function [20]. The energy resolution and detection efficiency (acceptance) curves as a function of the relative energy were obtained via Monte Carlo simulation considering a reasonable angular distribution of the produced $ ^{24} $ Mg and its decay fragments as well as the actual detection setup, energy and position resolutions of the detectors, and applied cuts in the data analysis [14,20]. Because the efficiency curves (Fig. 4) varied gradually over the range of a typical peak, we maintained it as a constant for each peak [20]. The extracted resonance energies ( $ E_x $ ) and widths (Γ) are listed inTable 1in the first and second columns, respectively. The values in the parentheses give the corresponding statistical errors (standard deviation). In addition, a systematic uncertainty was estimated according to the Monte Carlo simulation, which was approximately 100 keV for both the peak centroid and width [14]. Note that the statistical significance for each peak inFig. 4was also evaluated by taking the ratio of the peak count to the square root of the background count (statistical fluctuationσ) within a range of $ \pm \Gamma $ relative to the peak centroid. In the case of one resonance decaying into various final states of $ ^{20} $ Ne, only the most significant was taken into account. InTable 1andFig. 5, we present only the resonant states with those significantly larger than 5σ(confidence level (CL) $ > 99.99\ $ %).

Figure 4.(color online) Excitation-energy (relative energy plus the corresponding separation energy) spectra conditioned by the highest threeQ-value peaks, as indicated inFig. 3. Each spectrum is fitted by a number of peak functions (blue-dash lines), which are BW forms convoluted with energy resolution functions, plus a continuum background (black-dashed lines). The simulated detection efficiency curves (black-dotted lines) are also plotted, with several characteristic values indicated at the curves.

Figure 5.(color online) Relative decay width determined from the number of counts in each resonance peak, corrected by the corresponding detection efficiency and normalized to the sum of the widths for all three final states of $^{20}$ Ne. The green-filled, red-upward-hashed, and blue-downward-hashed bars represent the relative widths for decay into the ground, 1.634 MeV (2 $^{+}$ ), and 4.248 MeV (4 $^{+}$ ) states of $^{20}$ Ne, respectively.

From the reconstructed IM spectra inFig. 4, the relative decay width for each resonant state to one specific final state, as a ratio to the sum of the widths for all three final states, can be extracted according to the number of counts in each fitted peak, corrected by the corresponding detection efficiency. The results are shown inFig. 5and listed inTable 1.

The observed resonances for $ E_{x} < 18.5 $ MeV effectively reproduced the results of a previousα-cluster resonant elastic scattering experiment (see Ref. [42] andTable 1), confirming the correctness of our measurement and data analysis. In the $ ^{24} $ Mg(α, $ \alpha ^{'} $ ) inelastic scattering experiments by Kawabata $\it et\ al.$ [44] and Adsley $\it et\ al.$ [40,41], the three states at $ E_{x} $ = 13.1, 13.79, and 15.33 MeV in $ ^{24} $ Mg were found to have largeα-decay widths compared to their corresponding proton-decay widths and were tentatively assigned spin-parities of $ 0^+ $ . These states have correspondence to our measurement and are presented inTable 1. On the theoretical side, the work of Chiba and Kimura using the antisymmetrized molecular dynamics (AMD) approach combined with the generator coordinate method (GCM) has predicted a series of $ 0^+ $ states with various cluster configurations for $ ^{24} $ Mg [31], which are also listed inTable 1for comparison. The present study showed that theα+ $ ^{20} $ Ne configuration in $ ^{24} $ Mg may persist to high excitation energies, considerably beyond the thresholds of other cluster configurations. This may affect the formation of other types of clusterings, which should be orthogonal to existing states.

Recently, decay-path selection was proposed and successfully applied to probe the specific cluster structure [20,21]. In the present study, owing to the excellent resolution of theQ-value spectrum and thus the clear distinction of the decay paths for each event, we were able to extract the relative decay strengths of each $ ^{24} $ Mg resonance, as displayed inFig. 5and listed inTable 1. Interestingly, we found many resonances decaying dominantly into the first or second excited states of the $ ^{20} $ Ne fragment instead of into its ground state. This may provide a testing ground for future theoretical calculations.

A transfer reaction and cluster decay experiment, $ ^{16} $ O( $ ^{12} $ C, $ ^{24} $ Mg $ \rightarrow $ α+ $ ^{20} $ Ne)α, was conducted at a beam energy of 96 MeV. This reaction channel exhibited a largeQ-value in favor of populating the highly excited states of $ ^{24} $ Mg. The obtainedQ-value spectrum exhibited a sufficiently high resolution, allowing us to discriminate the decay paths collected to the ground, first excited (1.634 MeV), and second excited (4.248 MeV) states of the $ ^{20} $ Ne final fragment. A number of resonances in $ ^{24} $ Mg with theα+ $ ^{20} $ Ne cluster configuration were observed up to an excitation of 30 MeV, together with the total decay width and relative decay strengths for various decay paths. These experimental results encourage more theoretical work to correctly reproduce theα+ $ ^{20} $ Ne structure in $ ^{24} $ Mg before being applied to other more complicated configurations.

The authors thank the staff of the HI-13 tandem accelerator at the CIAE for providing excellent technical and operational support during the experiment.
