Studying the potential ofQQqat finite temperature in a holographic model

With over 20 years of development, gauge/gravity duality has become a useful tool to deal with the QCD problem through gravitational theory. Quark-antiquark potential is one of the hottest topics in holographic QCD because heavy quarkonia are among the most sensitive probes used in the experimental study of quark-gluon plasma (QGP) and its properties. The holographic potential of the quark-antiquark pair was first recorded in Ref. [1]. It was found that the quark-antiquark potential exhibits a purely Coulombian (non-confining) behavior and agrees with a conformal gauge theory. Soon after, the potential at finite temperature was discussed in [2,3]. The deformed $ AdS_5 $ model and Einstein-Maxwell-Dilation models were used to calculate the quark-antiquark potential in these studies [4–27].

Moreover, the recent discovery of a doubly charmed baryon (DHB) $ \Xi_{c c}+ $ through LHCb experiments at CERN [28,29] has reinforced interest in the search for a theoretical description of doubly heavy baryons. Inside a DHB, there is a heavy diquark and light quark. Because the heavy quark in a DHB is almost near its mass shell, it is reasonable to expect the heavy quark limit to be applicable in this system [30]. Although lattice gauge theory remains a basic tool for studying nonperturbative phenomena in QCD, it has achieved limited results onQQqpotentials to date [31,32].

In recent years, the multi-quark potential from the holographic model has been discussed by Oleg Andreev in Refs. [33–37]. In this effective string model, heavy quarks are connected by string to a baryon vertex, whose action is given by a five brane wrapped around an internal space, and a light quark is a tachyon field coupled to the worldsheet boundary. The main reason for pursuing this model is that its results on the quark-antiquark and three-quark potentials are consistent with lattice calculations and QCD phenomenology [4,33–37]. The technology we use to extract theQQqpotential is same as that in lattice QCD [38]. TheQQqpotential is extracted from the expectation value of theQQqWilson loop $ { W_{QQq}}(R, T) $ . TheQQqWilson loop is constructed from the heavy-quark trajectories and light-quark propagator. Hence, we investigate theQQqpotential at finite temperature in this paper using gauge/gravity duality.

The remainder of this paper is organized as follows: We establish the different configurations of string at finite temperature in Sec. II. Then, we numerically solve these configurations at different temperatures and provide a discussion in Sec. III. In Sec. IV, we discuss string breaking for the confined phase. Finally, the summary and conclusion are given in Sec. V.

First, we briefly review the holographic model used in the paper. Following Ref. [35], this background metric at finite temperature is

This model parameterized bysis a one-parameter deformation of Euclidean $ AdS_5 $ space with a constant radiusR, and a five-dimensional compact space (sphere) $ {\boldsymbol{X}} $ , whose coordinates are $ \omega^a $ and $ f(r) $ , is a blackening factor. The Nambu-Goto action of a string is expressed as

whereγis an induced metric on the string world-sheet (with a Euclidean signature). For $ AdS_5 $ space, $ f(r) = 1- {r^4}/{r_h^4} $ with the boundary conditions $ f(0) = 1 $ and $ f(r_h) = 0 $ . $ r_h $ is the position of the black hole (brane). The Hawking temperature identified with the temperature of a dual gauge theory can be defined as $ T=({1}/{4 \pi})\left|\partial_{r} f\right|_{r=r_{h}} $ . The motivations for this metric have been clarified in Ref. [35]. However, such a deformed $ AdS_5 $ metric leads to linear Regge-like spectra for mesons [39,40] and the Cornell potential of a quark-antiquark [4]. The deformed metric satisfies the thermodynamics of lattice [41].

Subsequently, we introduce the baryon vertex. According to the AdS/CFT correspondence, this is a five brane [42]. At leading order in $ \alpha' $ , the brane action is $ S_{\rm vert} = {\cal{T}}_5 \times \int {\rm d}^6 \xi \sqrt{\gamma^{(6)}} $ , where $ {\cal{T}}_5 $ is the brane tension, and $ \xi^{i} $ are the world-volume coordinates. Because the brane is wrapped around the internal space, it appears point-like in $ AdS_5 $ . We choose a static gauge $ \xi^0 = t $ and $ \xi^a = \theta^a $ with $ \theta^a $ coordinates on $ {\boldsymbol{X}} $ . Thus, the action is

where $ \tau_{v} $ is a dimensionless parameter defined by $ \tau_{v}= {\cal{T}}_{5} R {\rm{vol}}({\boldsymbol{X}}) $ , and $ {\rm{vol}}({\boldsymbol{X}}) $ is a volume of $ {\boldsymbol{X}} $ .

Finally, we consider that the light quark at string endpoints is a tachyon field, which couples to the world-sheet boundary via $ S_{q}=\int {\rm d} \tau e \;{T} $ ; this is the usual sigma-model action for a string propagating in the tachyon background [43]. The integral is over a world-sheet boundary parameterized byτ, andeis a boundary metric. We consider a constant background $ {T}(x,r) = {T}_0 $ and worldsheets whose boundaries are lines in thetdirection. Thus, the action can be written as

where $ {\rm{m}}=R \;{T}_{0} $ . This is the action of a point particle of mass $ T_0 $ at rest. We choose the model parameters as follows: $ {\boldsymbol{g}}=\dfrac{R^{2}}{2 \pi \alpha^{\prime}}, \;{k}=\dfrac{\tau_{v}}{3 {\boldsymbol{g}}} $ , and $ {n}=\dfrac{m}{\boldsymbol{g}} $ .

The configuration ofQQqis plotted inFig. 1. The total action is the sum of the Nambu-Goto actions plus the actions for the vertex and background scalar.

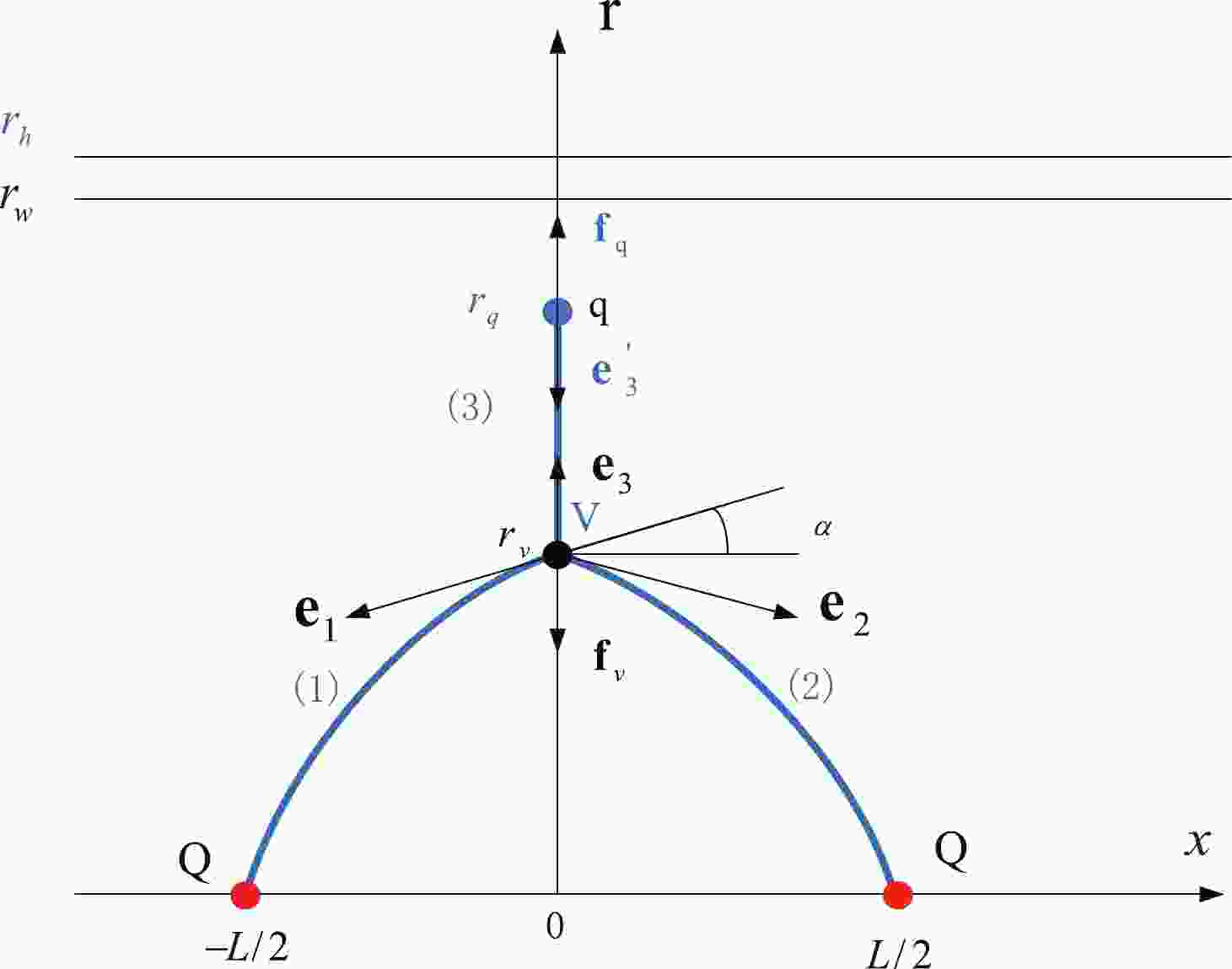

Figure 1.(color online) Static string configuration at a small separation distance of a heavy-quark pair. The heavy quarksQare placed on thex-axis, while the light quarkqand baryon vertexVare on the r-axis at $r = r_q$ and $r = r_v$ , respectively. The quarks and baryon vertex are connected by the blue string. The force exerted on the vertex and light quark are depicted by the black arrows. $r_h$ is the position of the black-hole horizon. $r_w$ is the position of a soft wall in the confined phase.

If we choose the static gauge $ \xi^{1}=t $ and $ \xi^{2}=r $ , the boundary conditions for $ x(r) $ become

The action can now be written as

where $ \partial_{r} x={\partial x}/{\partial r} $ and $ T=\int_{0}^{T} {\rm d} t $ . We consider the first term in (7), which corresponds to string (1) and (2) inFig. 1. The equation of motion (EoM) for $ x(r) $ can be obtained from the Euler-Lagrange equation. Thus, we have

$ {\cal{I}} $ is a constant. At $ r_v $ , we have $ \left.\partial_{r} x\right|_{r=r_{v}}=\cot \alpha $ with $ \alpha>0 $ and

$ \partial_{r} x $ can be solved as

Using (10), the integral over [ $ 0,r_v $ ] of dris

Lis a function of $ r_v $ ,α, and $ r_h $ (or equally, temperature). The energy of string (1) can be found from the first term of (7).

Subtracting the divergent term $ {\boldsymbol{g}} \int_{0}^{\infty}{\rm d}r\dfrac{1}{r^2} $ , we have the regularized energy:

Here,cis a normalization constant. Because string (2) produces the same results, we move to string (3), whose action is given by the second term in (7). This string is a straight string stretched between the vertex and light. The energy can be calculated as

Now, we can present the energy of the configuration. From (7), it follows that

The energy is also a function of $ r_v $ ,α, and $ r_h $ . There are two steps to be compeleted: The first is to determine the position of the light quark, which is a function of temperature, and the second is to determineα. To achieve this goal, the net forces exerted on the light quark and vertex vanish. We first write the force balance equation of the light quark as

By varying the action with respect to $ r_q $ , it is found that ${\boldsymbol{f}}_{q}=\left(0,-{\boldsymbol{g}} n \partial_{r_{q}} \left(\big({{\rm{e}}^{\frac{1}{2} {sr}_{q}^{2}}}/{r_{q}}\big)\sqrt{f(r_q)}\right)\right)$ and $ {\boldsymbol{e}}_{3}^{\prime}={\boldsymbol{g}} w\left(r_{q}\right)(0,-1) $ . Hence, the force balance equation becomes

Note that $ r_q $ (the position of the light quark) is only a function of $ r_h $ . At fixed temperature, $ r_q $ can be fixed via the above equation. The force balance equation on the vertex is

$ {\boldsymbol{e}}_{i} $ is the string tension, which can be calculated in the same manner as in Ref. [37]. As a result, the force on the vertex is $ {\boldsymbol{f}}_{v}=\left(0,-3 {\boldsymbol{g}} k \partial_{r_{v}} \left(\big({{\rm{e}}^{-2 s r_{v}^{2}}}/{r_{v}}\big)\sqrt{f(r_v)}\right)\right) $ , and the string tensions are

The non-trivial component of the force balance equation is

This equation provides the relationship between $ r_v $ andαwhen the temperature is fixed. With (15) and (17), we can numerically solve the energy at smallL.

The total action in the configuration plotted inFig. 2is expressed as

Figure 2.(color online) Static string configuration at an intermediate separation distance of a heavy-quark pair. The heavy quarksQare placed on thex-axis, while the light quarkqand baryon vertexVare at the same point $r_v$ on ther-axis. The forces exerted on the point are depicted by the black arrows. $r_h$ is the position of the black-hole horizon. $r_w$ is the position of a soft wall in the confined phase.

We still choose the same static gauge as before. The boundary conditions then take the form

In this configuration, the expressions (11) and (13) still hold. Naturally, we can express the total energy of the string without the contribution from string (3) as follows:

The force balance equation at the point $ r = r_v $ is

Each force is given by

where $ r_{q} = r_{v} $ . The force balance equation leads to

The total action of the configuration plotted inFig. 3is the same as Eq. (20). However, it is convenient to choose another static gauge $ \xi^{1}=t $ and $ \xi^{2}=x $ here. Then, the boundary conditions are

Figure 3.(color online) Static string configuration at a large separation distance of a heavy-quark pair. The heavy quarksQare placed on thex-axis, while the light quarkqand baryon vertexVare at the same point $r_v$ on ther-axis. The forces exerted on the point are depicted by the black arrows. There is a turning point located at $(x_0, r_0)$ for string (1). $r_w$ is the position of a soft wall in the confined phase. $r_h$ is the position of the black-hole horizon.

The total action becomes

We consider string (1), whose action is given by the first term in (26). The first integral has the form

At points $ r_0 $ and $ r_v $ , we have

The relationship between $ r_0 $ , $ r_v $ , andαcan be obtained from Eq. (29). Using Eq. (28), the separation distance and energy can be subsequently obtained. As before, $ \partial_x r $ can be solved as

The separation distance consists of two parts:

The energy of string (1) can be obtained by summing two parts.

After subtracting the divergent term, the renormalized energy of string (1) is

The calculation of string (2) has the same procedure as before and gives the same expressions forLandE. Then, the total energy of the configuration can be written as

The force balance equation is the same as Eq. (23). Each force is similarly given in the previous section. With Eq. (29) and (24), we can numerically solveLand $ E_{QQq} $ .

Except in the symmetric case, the light quark can be in a position far from ther-axis. The non-symmetric configuration has been discussed in Ref. [33], which, as noted in Ref. [33], is not energetically favorable. In this paper, we mainly focus on the symmetric configuration.

The system will change from the confined to deconfined phase with increasing temperature. The procedure for determining the melting temperature ofQQqis similar to that of $ {Q\bar{Q}} $ . We can judge the meting temperature from the behavior of the potential energy. In the confined phase, if we do not consider string breaking, the potential will rise linearly forever. When changing from a low to high temperature, the behavior of the potential will have an endpoint, as shown in the figures of Sec. III.B.3. Besides the potential, we can also judge the melting temperature from the behavior of the separation distance. Further discussions can be found in [6,8,16,19].

In this section, we investigate the effect of different temperatures on theQQqpotential. The configurations ofQQqchange with temperature. With an increase in temperature,QQqmelts. Because we want to approach the lattice at vanishing temperature, all the parameters are fixed as follows: $ s = 0.42\;{\rm{GeV}}^2 $ , $ {\boldsymbol{g}} = 0.176 $ , $ n = 3.057 $ , $ k = -\dfrac{1}{4}{\rm e}^{{1}/{4}} $ , and $ c = 0.623\;{\rm GeV} $ [33].

First, we investigate the configurations ofQQqat the low temperature $ T=0.1\;{\rm GeV} $ . At this temperature, the system is in the confined phase with a soft wall below the black-hole horizon, and the string and light quark cannot exceed this wall [6,8,16,19].

From (17), we can determine the position of the light quark at fixed temperature. The force balance equation of the light quark $ F_l(r_q) $ as a function of $ r_q $ is presented inFig. 4(a), where two solutions are observed. However, one solution beyond the soft wall is unphysical. At temperature $ T=0.1\;{\rm{GeV}} $ , $ r_q = 1.15\;{\rm{ GeV}}^{-1} $ is a solution of the force balance equation. Then,αcan be numerically solved from Eq. (19). The force balance equation for the vertex can give the relationship between the angleαand $ r_v $ , as shown inFig. 4(b). In the range $ 0 \leq r_v \leq r_q $ , we find thatαis not a monotone function of $ r_v $ ; it first decreases and then increases with an increase in $ r_v $ . A schematic diagram is shown inFig. 5.

Figure 4.(a) Force balance equation of the light quark as a function of $ r_q $ . (b)αas a function of $ r_v $ . The unit for $ r_q $ and $ r_v $ is $ \rm{GeV^{-1}} $ .

Figure 5.(color online) Schematic diagram of the string configuration with increasing $ r_v $ for smallL.αis always positive.

Furthermore, the separation distance of a heavy-quark pair, which can be calculated using Eq. (11), is shown inFig. 6(a).Lis a monotonously increasing function of $ r_v $ . At $ r_v = r_q $ , there is a cutoff. Beyond $ r_q $ , the configuration will turn into the second case. The corresponding energy can be calculated using Eq. (15), which is shown inFig. 6(b). It is found that the energy is a Coulomb potential at small separation distances and a linear potential at large distances.

Figure 6.(a) Separation distanceLas a function of $ r_v $ . (b) EnergyEas a function of separation distanceL. The unit ofEis $ {\rm{GeV}} $ , the unit ofLis $ {\rm{fm}} $ , and that of $ r_v $ is $ \rm{GeV^{-1}} $ .

In the second configuration, $ r_v $ ranges from $ r_q $ to a certain position whereαvanishes, as shown inFig. 7. A schematic diagram for this case is shown inFig. 8. At the beginning, $ \alpha \approx 0.22 $ . When we increase $ r_v $ ,αslowly tends to zero.

Figure 7.αas a function of $r_v$ . The unit of $r_v$ is $\rm{GeV^{-1}}$ .

Figure 8.(color online) Schematic diagram of the string configuration with increasing $r_v$ for intermidiate $L$ .αis always positive.

The separation distance of a heavy-quark pair can also be calculated from Eq. (11). InFig. 9(a), we can see thatLincreases with an increase in $ r_v $ . There is an endpoint $ r_v = 1.45 \;\rm{GeV^{-1}} $ , whereαtends to zero. Similarly, by solving the force balance equation of (24), we obtain numerical results forα. It is found thatαis a monotone function of $ r_v $ and decreases with an increase in $ r_v $ . FromFig. 9(a), it is clear that the separation distance will increase with increasing $ r_v $ . It should be noted that $ r_v $ has a maximum value, beyond which the configuration will turn to the third case. The maximum separation distance and energy emerge at $ r_v =1.45\; \rm{GeV^{-1}} $ . The corresponding energy can also be evaluated, which is shown inFig. 9(b). In this configuration, the energy is a linear function ofL. Next, we turn to the third case and discuss it further.

Figure 9.(a) Separation distanceLas a function of $ r_v $ . (b) The energyEas a function ofL. The unit ofEis $ {\rm{GeV}} $ , the unit ofLis $ {\rm{fm}} $ , and that of $ r_v $ is $ \rm{GeV^{-1}} $ .

Using Eq. (24), we first numerically obtain the relationship betweenαand $ r_v $ , as shown inFig. 10(a). Unlike the previous case, the difference here is a negativeα. Calculating the first integral from Eq. (29), we find that $ r_0 $ is a function of $ r_v $ inFig. 10(b). As shown, the maximum $ r_v $ is $ r_v \approx 1.48\;{\rm{GeV}}^{-1} $ , which corresponds to the position of the soft wall $ r_w \approx r_0 \approx 1.53 {\rm{GeV}}^{-1} $ . We can also see that the separation distance tends to infinity when $ r_0 $ approaches $ 1.53 \;{\rm{GeV}}^{-1} $ inFig. 11(a).

Figure 10.(a)αas a function of $ r_v $ . $ r_0 $ as a function of $ r_v $ . $ r_0 $ and $ r_v $ have the unit of $ {\rm GeV}^{-1} $ .

Figure 11.(a) Separation distanceLas a function of $ r_v $ . (b) The energyEas a function ofL. The unit ofEis $ {\rm{GeV}} $ , the unit ofLis $ {\rm{fm}} $ , and that of $ r_v $ is $ \rm{GeV^{-1}} $ .

Finally, the corresponding potential energy is shown inFig. 11(b). Because the absolute value ofαdecreases with increasing $ r_v $ , we present a schematic diagram of the third configuration inFig. 12. At $ r_0 \approx r_w $ ,αtends to zero, and the separation distance becomes extremely large.

Figure 12.(color online) Schematic diagram of the string configuration with increasing $r_v$ for largeL.αis always negative.

If we combine all the configurations, we can present the energy as a function ofLat all distances, as shown inFig. 13. Clearly, the energy is smoothly increasing with separation distance for all configurations.

Figure 13.(color online) EnergyEas a function ofLat all separation distances. The black line represents small distances, the blue line represents intermediate distances, and the red line represents large distances. The unit ofEis GeV, and the unit ofLis fm.

At temperature $ T=0.148\;{\rm{GeV}} $ , the system is in the deconfined phase. In this phase, the soft wall disappears, andQQqwill melt at a sufficient distance.

First, we can determine the position of the light quark from (17). At $ T=0.148\;{\rm{GeV}} $ , we find $ r_q = 1.38 {\rm{ GeV}}^{-1} $ or $ r_q = 1.54 \;{\rm{GeV}}^{-1} $ . In this study, we focus on the ground state and only consider $ r_q = 1.38 \;{\rm{GeV}}^{-1} $ at $ T=0.148 {\rm{GeV}} $ . The angleαcan be calculated from Eq. (19). The energy and separation distance are calculated using the same procedure as before, and the results are shown inFig. 14.Lis still an increasing function of $ r_v $ , andEis a Cornell-like potential.

Figure 14.(a) Separation distanceLas a function of $ r_v $ . (b) The energyEas a function ofL. The unit ofEis $ {\rm{GeV}} $ , the unit ofLis $ {\rm{fm}} $ , and that of $ r_v $ is $ \rm{GeV^{-1}} $ .

In this configuration, we calculate the energy and separation distance inFig. 15. With an increase in $ r_v $ , the separation distance increases. There is a maximum value $ L_{\rm max} = 0.445\; {\rm{fm}} $ beyond which the configuration cannot exist and quarks become free. Thus, we find that the third configuration cannot exist at $ T= 0.145 \;{\rm GeV} $ .

Figure 15.(a) Separation distanceLas a function of $ r_v $ . (b) The energyEas a function ofL. The unit ofEis $ {\rm{GeV}} $ , the unit ofLis $ {\rm{fm}} $ , and that of $ r_v $ is $ \rm{GeV^{-1}} $ .

Only the first and second configurations can exist at $ T = 0.148\;{\rm{GeV}} $ . We present the energy as a function of separation distance from 0 to $ L_{\rm max} $ inFig. 16. The potential is smoothly increasing from small distances to intermediate distances. The potential ends at $ L_{\rm max} = 0.445\;{\rm{fm}} $ , marked by the red dot in the figure. At large distances,QQqmelts and becomes free quarks.

Figure 16.(color online) EnergyEas a function ofLat all distances. The black line represents $E_{QQq}$ at small distances, the blue line represents $E_{QQq}$ at intermediate distances, and the red line represents $E_{QQq}$ at large distances. The unit ofEis GeV, and the unit ofLis fm.

First, we check the force balance equation of the light quark for the first configuration and find there is no solution for any $ r_q $ at $ T=0.15\;{\rm GeV} $ , as shown inFig. 17. Thus, the first configuration cannot exist at this temperature. From Eq. (24), we can find the relationship betweenαand $ r_v $ . There is also a maximum value $ r_{\rm max} $ at $ T=0.15\;{\rm GeV} $ , beyond whichQQqmeltsas shown inFig. 18. The separation distance and energy of the string are shown inFig. 19.

Figure 17.Force balance equation of the light quark as a function of $r_q$ . The unit of $r_q$ is ${\rm{GeV}}^{-1}$ .

Figure 18.(color online) Schematic diagram of the string configuration with increasing $r_v$ .

Figure 19.(a) Separation distanceLas a function of $ r_v $ . (b) The energyEas a function ofL. The unit ofEis $ {\rm{GeV}} $ , the unit ofLis $ {\rm{fm}} $ , and that of $ r_v $ is $ \rm{GeV^{-1}} $ .

In the confined phase, the quarks are confined in the hadrons. CanQQqexist at extremely large distances? The answer is no. The light quarks and anti-quark will be excited from vacuum at large distances. We call this string breaking and consider the following decay mode:

Qqqconsists of three fundamental strings: a vertex and two light quarks. Thus, the total action ofQqqis $ S=\sum_{i=1}^{3} S_{{\rm{NG}}}^{(i)}+S_{\rm{vert}}+2S_{\rm{q}} $ . $ Q\bar{q} $ consists of a fundamental string and a light quark. Thus, the total action ofQqqis $ S= S_{{\rm{NG}}}+S_{q} $ . The total actions of $ Qqq $ and $ Q\bar{q} $ are

Varying the action with respect to $ r_q $ gives Eq. (17), and varying the action with respect to $ r_v $ gives

We can obtain $ r_v=0.410 \;{\rm{GeV}}^{-1} $ or $ r_v=0.453\;{\rm{ GeV}}^{-1} $ . Because the difference in energy is extremely small for the two states, we take $ r_v=0.410\;{\rm{GeV}}^{-1} $ for simplicity. The configuration for $ Q q q+Q \bar{q} $ is shown inFig. 20. The renormalized total energy is

Figure 20.(color online) Schematic diagram of $Q q q+Q \bar{q}$ .

For fixed $ r_q=1.146 \;{\rm{GeV}}^{-1} $ and $ r_v=0.410\;{\rm{ GeV}}^{-1} $ , we have $ E_{ {Qqq}}+E_{ {Q\bar{q}}} = 3.006\;{\rm{ GeV}} $ .Figure 21is a schematic diagram of string breaking. To determine the string breaking distance, we plot the energy $ E_{QQq} $ and $ E_{Q\bar{q}}+ E_{Qqq} $ as a function of $ r_v $ at $ T = 0.1\;{\rm{GeV}} $ inFig. 22. The cross point shown in the figure enables us to determine $ L_{QQq} $ at fixed temperature. We find the distance of string breaking to be $ L_{QQq} = 1.27\; {\rm{fm}} $ .

Figure 21.(color online) Schematic diagram of string breaking from the third configuration ofQQqto $Q q q+Q \bar{q}$ .

Figure 22.(color online) Green line is the energy $E_{Qqq}+E_{Q\bar{q}}$ . The black line represents $E_{QQq}$ at small distances, the blue line represents $E_{QQq}$ at intermediate distances, and the red line represents $E_{QQq}$ at large distances. The unit ofEis GeV, and the unit of $r_v$ is $\rm GeV^{-1}$ .

The energy of $ {Q\bar{Q}} $ has been extensively studied in many holographic models. In this section, we focus on comparing the energy of ${Q\bar{Q}} $ withQQqin the confined and deconfined phases. First, we only show the results of the separation distance and energy of $ {Q\bar{Q}} $

where $ g_1(r) = \dfrac{{\rm e}^{2 s r^2}}{r^4},\; g_2(r) = \dfrac{{\rm e}^{2 s r^2}}{r^4} f(r) $ , and $ z_0 $ is the turning point of the U-shape string. A detailed calculation can be found in our previous paper [19,24,25]. We consider the decay mode $ {Q \bar{Q}\rightarrow Q\bar{q} + \bar{Q}q}. $ It is clear that

Thus, we can calculate $ E_{ {Q\bar{q}}}+E_{ {\bar{Q}q}} = 2.39 \;{\rm{GeV}} $ at $ T = 0.1\;{\rm{GeV}} $ . In the confined phase, such as when $ T = 0.1\;{\rm{GeV}} $ , we present the energy of $ E_{ {Q\bar{q}}}+E_{ {\bar{Q}q}} $ and $ E_{ {Q\bar{Q}}} $ inFig. 23. Through a comparison withFig. 22, we find the distance of string breaking $ L=1.25\; {\rm{fm}} $ is close to that ofQQq.

Figure 23.(color online) Blue dashed line is the energy of $E_{ {Q\bar{q}}}+E_{ {\bar{Q}q}}$ , and the black dashed line is the energy of $E_{ {Q\bar{Q}}}$ . The temperature is $T = 0.1\; \rm{GeV}$ . The unit ofEis GeV, and the unit ofLis fm.

In the deconfinement phase, we compare the energies of $ E_{ {Q\bar{Q}}} $ and $ E_{ {QQq}} $ at $ T = 0.148\;{\rm{GeV}} $ .Fig. 24shows that the screening distance of $ E_{ {QQq}} $ ( $ L = 0.45\;\rm{fm} $ ) is significantly smaller than that of $ E_{ {Q\bar{Q}}} $ ( $ L = 0.94\;\rm{fm} $ ) at the same temperature $ T = 1.48 \;{\rm{GeV}} $ . This indicates that $ {Q\bar{Q}} $ is more stable thanQQqin the deconfined phase.

Figure 24.(color online) Solid line is the energy of $E_{ {QQq}}$ , and the dashed line is the energy of $E_{ {Q\bar{Q}}}$ . The temperature is $T = 0.148\; \rm{GeV}$ . The unit ofEis GeV, and the unit ofLis fm.

In this study, we focused onQQqmelting and string breaking at finite temperature through a five-dimensional effective string model. For the confined phase, string and light quarks cannot exceed the soft wall. Quarks are permanently confined in the hadrons. However, string breaking ofQQqoccurs at sufficiently large distances. We considered the decay mode $ {Q Q q} \rightarrow {Q q q+Q \bar{q}} $ and found the distance of string breaking to be $ L = 1.27\; {\rm{fm}} $ . Other decay modes may be considered in the future studies. At a high temperature, the system is in the deconfined phase, which implies that the soft wall disappears andQQqmelts at a certain distance. For example,QQqmelts at $ L = 0.45\;\rm{fm} $ for $ T = 0.148\;{\rm{GeV}} $ . In contrast, we found that $ {Q\bar{Q}} $ melts at $ L = 0.94\;\rm{fm} $ for $ T = 0.148\;{\rm{GeV}} $ , which indicates that $ {Q\bar{Q}} $ is more stable thanQQqat high temperatures. Finally, we hope that studying the effective string model will provide more observable quantities for future experiments.
