On the masses ofA= 54 isospin septet and the isobaric multiplet mass equation

The isospin quantum number,T, was introduced to characterize the nearly identical property of neutron and proton. Within the isospin formalism, neutron and proton are regarded as the same type of baryon with isospin $ T = 1/2 $ , but with different projections, $ T_z(n) = 1/2 $ and $ T_z(p) = -1/2 $ , on thezaxis in the isospin space. For a given nucleus withZprotons andNneutrons, its isospin projection is fixed and defined as $ T_z = (N - Z)/2 $ , while a number of states with $ T\geqslant |T_z| $ exists. In the nuclei with fixed mass numberA, there exist isobaric analogue states (IASs) that exhibit the same intrinsic structure and total isospinT,but different isospin projection. These states form an isospin multiplet and provide a unique database to study the isospin symmetry.

About half a century ago, it was noted that masses of an isospin multiplet can be described by a quadratic form of the well-known isospin multiplet mass equation (IMME) [1,2]:

where ${\rm ME} = (m - A{u})c^2$ is a mass excess of IAS of the multiplet with fixedAandT. Although thea,b,andccoefficients depend onA,T, and the other quantum numbersαsuch as the spin-and-parity $ J^{\pi} $ , respectively, they are independent of $ T_z $ . These coefficients reveal the strengths of the isoscalar, isovector, and isotensor components of the isospin-symmetry breaking interactions [3], and can be extracted from the masses of IASs. The global trends ofa,b,andcas a function ofAhave been established in Refs. [4–6]. Any deviation from the regular systematics could be due to incorrect experimental masses of IASs [7] or new effects of isospin non-conserving forces [8].

The validity of the quadratic form of IMME has been tested by using precise mass values of IASs [4–6]. This can be done by adding high-order terms, such as $ d{T_z}^3 $ and/or $ e{T_z}^4 $ , to Eq. (1). The breakdown of the quadratic form of IMME is commonly attributed to the high-order perturbations, three-body interactions, and/or isospin mixing, etc. Although significant breakdowns have been found in several multiplets such as the $ A = 35 $ isospin quartet [9] and $ A=32 $ isospin quintet [10–12], the coefficients of the extra terms,dore, are usually very small within a magnitude of keV, and the addition of the extra terms should not lead to a significant change ina,b,andccoefficients [13–16].

Theoretical works have verified that the Coulomb interaction is the predominant contributor to the charge-dependent interactions, and consequently determines the values of thea,b,andccoefficients primarily. This simple and elegant mass equation is widely used as a powerful mass model to predict unknown masses where at least three masses of an isospin multiplet are known. The IMME predictions are particularly important for extremely neutron-deficient nuclei that are relevant in understanding the rapid proton capture process [17] and nuclear structure [18].

Although numerous studies have been conducted on the IMME, most of these studies concentrated on the isospin multiplet with $ T \leqslant 2 $ . The investigation for more exotic isospin multiplets is insufficient owing to the lack of experimental information. In this study, the $ T=3, A=54 $ isospin septet is addressed, which consists of the lowest $ T = 3 $ states in⁵⁴Zn,⁵⁴Cu,⁵⁴Ni,⁵⁴Co,⁵⁴Fe,⁵⁴Mn, and⁵⁴Cr. In the recent evaluation of NUBASE2020 [19], the masses of $ T=3 $ IASs in⁵⁴Fe,⁵⁴Mn, and⁵⁴Cr are recommended based on experimental measurements. All information are summarized inTable 1. Thea,b,andccoefficients of the $ A = 54 $ multiplet are calculated using the three known masses according to Eq. (1) and presented inTable 2. Using these parameters, the mass values of other four members of the $ A = 54 $ multiplet can be predicted in principle.

Isotope	Tz	ME (g.s.)/keV	Ex/keV	ME(IAS)/keV
54Cr	+3	−56935.38(13)	0	−56935.38(13)
54Mn	+2	−55558.2(10)	6146.4(30)	−49411.9(28)
54Fe	+1	−56254.6(3)	14868(20)	−41387(20)
54Zn*	−3	−6504 (85)	0	−6504 (85)
* Deduced from ground-state mass of52Ni and the $Q_{2p}$ of54Zn.

Table 1.Compilation of ME values for ground states (g.s.), IASs, and the corresponding excitation energy ( $E_x$ ) of theA= 54 isospin septet. All data are taken from NUBASE2020 [19] except for⁵⁴Zn.

coefficient	quadratic1	quadratic2	cubic2
a	−32860.7(606)	−33267.5(169)	−32972.2(455)
b	−8777.0(512)	−8431.9(137)	−8572.6(243)
c	250.7(104)	180.9(28)	139.2(66)
d			18.6(27)
$\chi^2/\nu$		49
1Quadratic fit using 3 IASs,54Fe,54Mn and54Cr. 2Quadratic and cubic fits using 4 IASs,54Fe,54Mn54Cr and54Zn.

Table 2.Fitted coefficients of the quadratic and cubic form of the IMME for the lowestA= 54,T= 3 isospin septet using ME values fromTable 1. All coefficient values are in units of keV. In addition, the $\chi^2/\nu$ value of the quadratic fit is also presented.

The $ T_z = -3 $ member of the $ A = 54 $ multiplet,⁵⁴Zn, is at the edge of the proton drip-line of zinc isotopes. This nuclide is of particular interest owing to its two-proton (2p) radioactivity, a rare decay mode that only emerges in nucleus with negative two-proton separation energy ( $ S_{2p} $ ), but positive one-proton separation energy ( $ S_p $ ). $ S_{2p} $ can be derived from the mass difference of the parent and daughter nuclei according to

with ME representing the mass excess of the nucleus.

The $ 2p $ radioactivity of⁵⁴Zn was studied in two experiments. The $ 2p $ decay energy, $ Q_{2p} = - S_{2p} $ , was measured to be 1480(20) keV using silicon detectors in Ref. [20] and 1280(210) keV using gas electron multipliers in Ref. [21]. The results of these two experiments agree well with each other. Therefore, a weighted average value of 1478(20) keV was obtained for $ Q_{2p} $ of⁵⁴Zn. Recently, the ME value of⁵²Ni, the $ 2p $ decay daughter of⁵⁴Zn, was accurately measured to be –22560(83) keV, using the isochronous mass spectrometry at the HIRFL-CSR facility in Lanzhou [22]. Given the fact that the mass of proton is well known, the mass excess of⁵⁴Zn is deduced to be –6504(85) keV using the mass of⁵²Ni and the $ 2p $ decay energy of $ Q_{2p}=1478(20) $ keV. The deduced value of ME $ (^{54}{\rm{Zn}})=-6504(85) $ keV is presented inTable 1, and compared with the IMME prediction inFig. 1. A significant difference as large as about 2 MeV is observed.

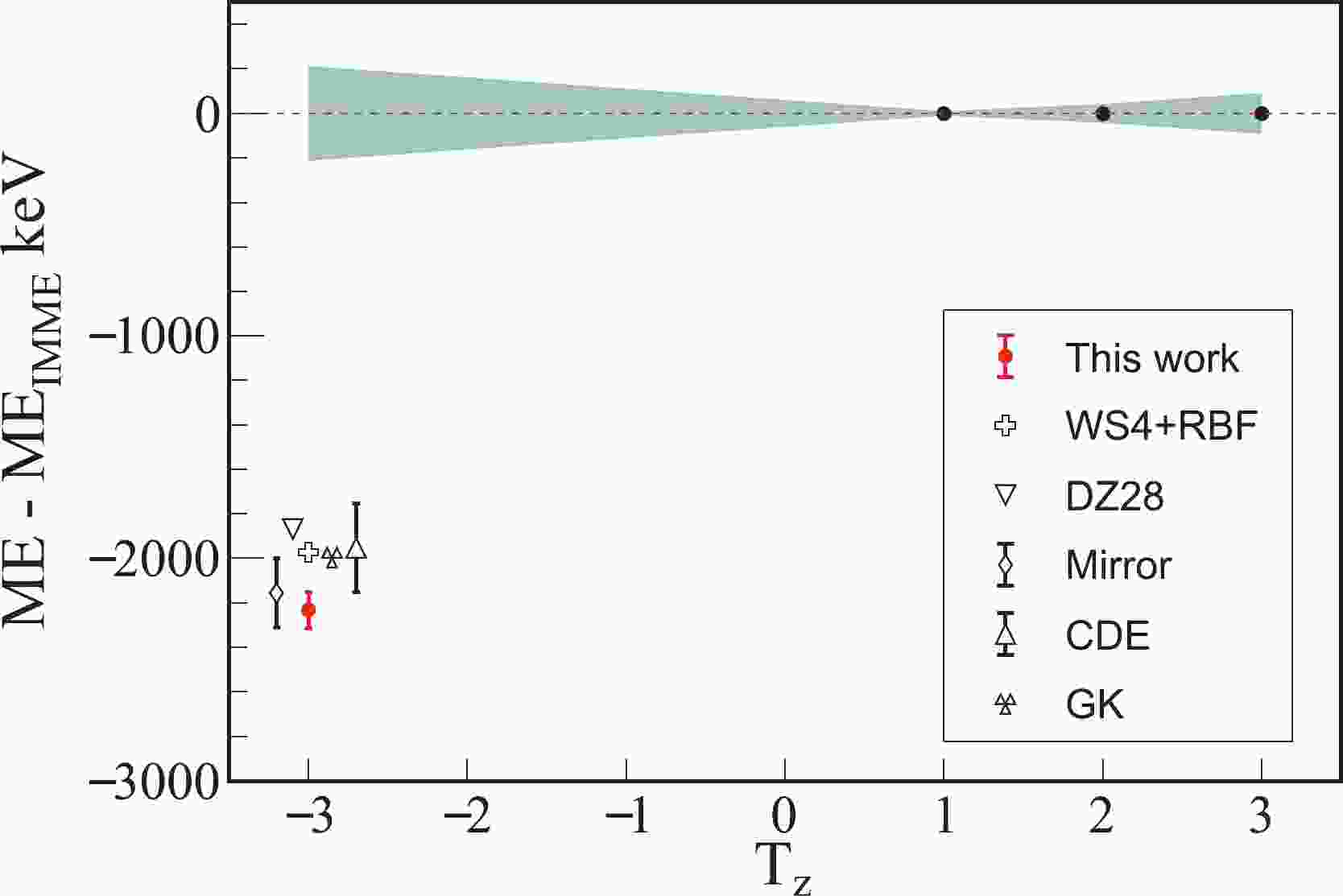

Figure 1.(color online) Mass difference between experimental values and predictions for⁵⁴Zn. The shading area represents the uncertainty from the IMME prediction.

Considering the reliable predictive power of IMME, this discrepancy is surprising.Fig. 1also presents the predicted mass values of⁵⁴Zn from various mass models. Only the predicted masses from the latest version of WS4+RBF [23] and the Duflo and Zuker mass model (DZ28) [24] are adopted for comparisons inFig. 1. The reason is that the two global mass models provide mass predictions with the smallest root mean square values of 200–600 keV in the $ 28\leqslant Z \leqslant 50 $ mass region [25]. In addition, the predictions from several local mass models [26–28] are also compared inFig. 1. The masses of neighboring or mirror nuclei are adopted in such local mass models, and the mass predictions are considered to have high accuracies [26–28]. For example, the mass predictions based on isospin symmetry have a root mean square value as small as approximately 100 keV [26] for the proton-rich nuclei.

FromFig. 1, it can be observed that the predictions from the global and local mass models agree well with the presently deduced mass value of⁵⁴Zn within an uncertainty of 300 keV. However, the IMME prediction, which is commonly believed to be accurate within an uncertainty of a few tens of keV, significantly deviates from the experimental mass value and the other theoretical predictions by approximately 2 MeV. Such a significant departure is peculiar and indicates that the masses of the $ A = 54 $ isospin septet need to be meticulously re-assessed.

Although the masses of only four members of the isospin septet are known, it is sufficient to test the quadratic form of the IMME. First, the $ \chi^2 $ / $ \nu=49 $ is obtained from the quadratic fit to the four mass data using Eq. (1), thus indicating that the quadratic form of IMME is unsuitable to describe the data. The fit residual is presented inFig. 2. However, the cubic fit yields adcoefficient of 18.6(27), which significantly deviates from zero by more than $ 6.9\sigma $ , thereby indicating a serious breakdown of the quadratic of IMME in the $ A = 54, T = 3 $ isospin septet. The fitted coefficients using both the quadratic and cubic forms of IMME are presented inTable 2.

Figure 2.(color online) Fit residuals using the quadratic IMME of Eq. (1) for theA= 54,T= 3 isospin septet.

As aforementioned, the summed effect of all ingredients that break down the quadratic form of IMME will result in a smalldvalue at a level of few keVs. For comparison,dcoefficients for all isospin multiplets withA≥ 16 andT≥ 3/2, of which ME values of more than three members are known experimentally, are calculated using the cubic form of the IMME. The corresponding ME values of IASs are taken from recent evaluation NUBASE2020 [19]. As can be observed inFig. 3, almost alldcoefficients are compatible with zero within $ 3\sigma $ . The significant breakdowns of the quadratic IMME are observed for the $ A = 32 $ isospin quintuplet and $ A = 35 $ isospin quartet with $ \left|d\right|/\sigma $ bigger than 8. However, the absolute values of thedcoefficients of these two multiplets are less than 4 keV. The case of the $ A = 44 $ isospin quintuplet with the third biggestdvalue of 10.8(19) was pointed out and discussed comprehensively in Ref. [22]. In that study, it was inferred that "The largedandecoefficients demonstrated in Fig. 9, the so-called breakdown of the IMME, are caused most probably by the mis-identification of the IAS in⁴⁴V". If the $ T = 2 $ IAS in the⁴⁴V proposed in that work was adopted, thedcoefficient of the $ A = 44 $ isospin quintuplet would be –0.7(2.4).

Figure 3.(color online)dcoefficients of cubic fit of the IMME for all isospin multiple withA≥ 16 andT≥ 3/2. The solid squares, dots and stars represent thedcoefficients of isospin multiplets withT= 3/2,T= 2, andT= 3, respectively. The red triangle, represents thedcoefficient of theA= 54,T= 3 isospin septet, while the blue open dot represents the one of theA= 44,T= 2 isospin quintuplet. All isospin multiplets with $\left|d\right|/\sigma$ bigger than 3 are marked.

In fact, there were several cases in which the breakdowns of the quadratic form of IMME were first reported; however, it was later discovered that the breakdowns were caused by the mis-assignment of one of the IASs. For example, the new mass of⁵³Ni [29], together with the other three IASs in the $ A = 53 $ , $ T = 3/2 $ isospin quartet, yields adcoefficient of 39 (10 keV), which was too large to be understood by the large-scale shell model calculations [29]. In a later experiment on theβdecay of⁵³Ni, the $ T = 3/2 $ IAS in⁵³Co was correctly assigned and thus yielded $ d=5.4(46) $ compatible with zero. Another similar case is the $ A = 52 $ isospin quintuplet reported in Ref. [30]. The surprisingly largedcoefficient in the present $ A = 54 $ isospin septet may be owing to the mis-assignment of one of the four IASs.

We adopt the method introduced by J. Jäneke in Ref. [31]. Assuming that a nucleus can be regarded as a uniformly charged sphere [32], the total Coulomb energy $E_{\rm C}$ , which breaks the degeneracy of IASs and results in an energy shift between IASs of an isospin multiplet, can be defined as

whereerepresents the elementary charge, and $R_{\rm C} = r_{0}A^{1/3}$ denotes the radius of the nucleus. The coefficients of IMME can be expressed as

where $ \Delta M_{nH} $ is the mass difference between the neutron and hydrogen. From this simple model, the ratio of thebandccoefficients $ \left|b/c\right| $ is nearly a linear function of $ (A-1) $ .

Figure 4illustrates the dependence of the extracted $ \left|b/c\right| $ ratios on the corresponding $ A-1 $ for all isospin multiplets withA $ \geqslant $ 16 andT $ \geqslant $ $ 3/2 $ . Thebandccoefficients of the isospin multiplets are re-extracted from fits of the quadratic form of the IMME. Similar to the method introduced in Ref. [6], a linear function of $ \left|b/c\right| = p_0 (A - 1) + $ $ p_1 $ is adopted to fit the data. The fitted parameters agree well with those obtained in Ref. [6]. FromFig. 4, it can be observed that the $ \left|b/c\right| $ versus $ A-1 $ shows a good systematics, which can be well described by the linear function.

Figure 4.(color online) Dependence of the quantity $|b/c|$ onA– 1 for all isospin multiplets. The four red symbols represent results fromA= 54,T= 3 isospin multiplets. The gray shading area represents the $3\sigma$ error band of the fitted linear function.

For the $ A=54 $ , $ T=3 $ isospin multiplet, four combinations of three IASs are adopted to extract thea,b,andccoefficients of the quadratic IMME, and the $ \left|b/c\right| $ ratios are obtained and illustrated inFig. 4. It is found that once the $ T=3 $ IAS in⁵⁴Fe is used in the analysis, the extracted $ \left|b/c\right| $ values are beyond the $ 3\sigma $ error band of the fit function. Only if the $ T=3 $ IAS in⁵⁴Fe is excluded, the $ \left|b/c\right| $ value fits well into the general trend of the systematics. This indicates that the breakdown of the IMME at $ A = 54 $ , $ T=3 $ isospin multiplet may be caused by the mass of the $ T = 3 $ IAS in⁵⁴Fe.

If we intentionally make thedcoefficient approach zero or make the $ \left|b/c\right| $ values to be in line with the general trend, the excitation energy of the $ T = 3 $ IAS in⁵⁴Fe would have to be reduced by 150 keV. In fact, a state with an excitation energy of 14730 keV, 140 keV lower than the IAS of 14870 keV, was observed in Ref. [33]. Referring to the aforementioned cases [22,30,34], the first possibility that would trigger the breakdown of IMME would be the mis-assignment of the $ T = 3 $ IAS in⁵⁴Fe. However, the mass of the $ T = 3 $ IAS in⁵⁴Fe was determined using the⁵²Cr(³He,n)⁵⁴Fe transfer reaction [33]. In these reactions, the spin and parity assignments for populated states were determined based on the distorted-wave calculations for angular distributions of reaction products, i.e., protons or neutrons. This approach is a long-standing method widely used in data analysis of transfer reaction experiments from 1960s. It remains uncertain to attribute such breakdown of IMME to the mis-assignment of the IAS in⁵⁴Fe. Hence, a new transfer reaction experiment with a higher resolution is highly desirable to address the issue.

An alternative scenario that may explain the breakdown of IMME is the isospin mixing between the IAS and close-lying states of the same spin-and-parity, $ J^{\pi} $ , but with different isospins. In fact, the level density is generally very high at the excitation of approximately 15 MeV; hence, it is not unusual to have such states of the same $ J^{\pi} $ as that of the IAS. It is well-known that the unperturbed IAS would be shifted up or down owing to the isospin mixing. The energy shift depends on the matrix element of isospin non-conserving Hamiltonian ( $ V_{\rm{INC}} $ ), and it may be enhanced by the proximity of levels involved in the isospin mixing. However, the $ V_{\rm{INC}} $ is usually very small, thereby leading to the energy shift at the order of several tens of keV. This phenomenon has been confirmed in recent experiments onfp-shell nuclei [35–37]. Hence, under the scenario of isospin mixing, the large energy shift of approximately 150 keV for the claimed $ T=3 $ IAS in⁵⁴Fe [33] is also quite odd and needs to be further investigated theoretically and experimentally.

In summary, the mass of two-proton emitter⁵⁴Zn was deduced indirectly thanks to the precise mass measurement of⁵²Ni. Although the deduced mass value agrees with the predictions from various nuclear mass models, it disagrees with the IMME prediction. A serious breakdown of the IMME at $ A = 54 $ isospin septet was discovered with thedcoefficient being as large as 18.6(27). This anomaly has been analyzed and discussed in this paper. We suggested that two scenarios could be responsible for such an anomaly: one is concerned with the mis-assignment of the $ T = 3 $ isobaric analogue state (IAS) in the $ T_z = 1 $ nucleus⁵⁴Fe, and the other could be owing to the extremely strong isospin mixing. To verify and further investigate the breakdown, the direct mass measurement for⁵⁴Zn, re-determination for $ T = 3 $ IAS in⁵⁴Fe, and measurements for other three still unknown $ T = 3 $ IASs are highly recommended. Considering the short half-life (1.8 ms) of⁵⁴Zn, the High Intensity Accelerator Facility [38] coupled with single-ion sensitive isochronous mass spectrometry [39] may be a suitable location to conduct a precise mass measurement for this short-lived and low-production nucleus.
