Phase structures and transitions of quintessence surrounding RN black holes in a grand canonical ensemble

With the development of theory, researchers found a fundamental relationship between gravity, thermodynamics and quantum theory. Initially, physicists studied the mechanics of black holes [1], and then, they found that if they applied quantum field theory in curved spacetime to the fundamental properties of black holes, they could obtain profound results. The framework of black hole thermodynamics is based on the discovery made by Bekenstein and Hawking that black holes have entropy and other thermodynamic quantities [2-5]. The Schwarzschild black hole in AdS space was investigated by Hawking and Page [6], where the phase transition from thermal AdS to a black hole was found. A black hole has negative specific heat in asymptotically flat spacetime, which causes it to be an unstable system. The problem in asymptotically flat space can then be avoided, as the gravitational potential of AdS space acts as a box of finite volume with unphysical perfectly reflecting walls [6]. In addition, the emergence of AdS/CFT correspondence [7-9] has also inspired relevant studies on black hole thermodynamics [10-17].

Another preferred solution to solve this problem is to surround the black hole with a cavity. The Dirichlet boundary condition is supposed to be considered in the wall of the cavity. This work was first carried out by York [18], in which the Hawking-Page-like phase transition was found. Subsequently, it was extended to the case of an RN black hole, which was considered in a grand canonical ensemble [19] and a canonical ensemble [20,21]. The thermodynamic phases of diverse black holes in a cavity were discussed in [22-31], which indicated that the van der Waals-like phase transitions or Hawking-Page-like phase transitions exist invariably except for some particular cases. The relationship between the thermodynamic properties of black holes and their specific boundary conditions in different extended phase spaces was studied in [32]. Apart from this, other systems such as charged scalars, boson stars, and hairy black holes in a cavity were investigated in [33-36], which concluded that there are some surprising similarities between gravity systems in a cavity and holographic superconductors in AdS gravity. The stabilities of solitons, stars, and black holes in a cavity were also discussed in [37-44]. Recently, McGough, Mezei, and Verlinde proposed that in the holographic dual, the $ T\bar{T} $ deformed CFT $ _{2} $ is located on a Dirichlet wall at a finite radial distance of AdS $ _3 $ in the bulk [45], which also inspires us to study the properties of black holes in a cavity.

From observations, we know that the universe is dominated by an energy component with an effective negative pressure [46,47]. One hypothesis for such a component is the cosmological constant, and other hypotheses are dynamical vacuum energy or quintessence [48-53]. Quintessence is described by an ordinary scalar field minimally coupled to gravity, with particular potentials that lead to late time inflation. The quintessence field must couple to ordinary matter and will lead to long range forces and time dependence of the constants of nature when it is suppressed by the Planck scale. The static spherically symmetric solution with the quintessential matter surrounding a charged black hole was first presented in [54]. Since then, a series of studies about black holes in the presence of quintessence have been conducted. Quintessence modes were studied in [55,56], and thermodynamics including Hawking radiation, heat engines, and phase transition in the holographic framework were investigated in [57-66]. In particular, the phase transition of the quintessence RN-dS black hole was studied through the effective thermodynamic quantities [67]. Although many relevant works have been completed, there is no research that combines quintessential matter and cavity boundary condition. In addition, the discovery about the difference in phase structures of black holes between AdS space and a Dirichlet cavity [28-31] also prompts us to investigate the phase structures of black holes from another perspective.

In this paper, we study the phase structures and transitions of RN black holes surrounded by quintessence dark energy under two different boundary conditions, i.e., AdS space and a Dirichlet wall. Moreover, a grand canonical ensemble is considered, which indicates that the temperature and potential of the black hole are fixed on AdS boundary condition, while the temperature and potential of the cavity wall are fixed on Dirichlet wall boundary condition. The paper is organized as follows. In Sec. II, we discuss the phase structures and transitions of an RN-AdS black hole surrounded by quintessence dark energy. In Sec. III, we study the phase structures and transitions of RN black holes surrounded by quintessence dark energy in a cavity. The final summaries and discussions are presented in Sec. IV.

In this section, we discuss the phase structures and transitions of the RN black hole surrounded by quintessence dark energy in AdS space. The action of the black hole in four dimensional curved space-time is [68]

In the above action, the cosmological constant $ \Lambda = -3/l^2 $ , wherelis the AdS space radius. $ {\cal{L}}_{q} $ is the Lagrangian of quintessence as a barotropic perfect fluid, which can be written as [69]

where $ \rho_{q} $ is the energy density, $ \rho_{0} $ is an integral constant, and $ \omega $ is the barotropic index. The solution of the spherical symmetric charged quintessence RN-AdS black hole is given by

and

whereMandQare the mass and charge of the black hole, respectively. The normalization factorais related to the density of quintessence dark energy

whereaneeds to be positive and the constraint on the barotropic index is $ -1<\omega<-1/3 $ .

As the horizon radius $ r_h $ is the root of $ f(r_h) = 0 $ , we have

In the discussion that follows,Mis redundant so we replace it with $ r_{h} $ . Thus, the Hawking temperature is given by

The potential and entrophy of the black hole are, respectively,

In addition, free energy plays a crucial role in probing into the phase structures and transitions of a quintessence RN-AdS black hole in the grand canonical ensemble, and it is given by [30,70]

in which the mass of the black hole is interpreted as enthalpy [71]. Ignoring the variation ofl, we express physical quantities in units oflfrom now on to simplify the subsequent calculation

The heat capacity at constant potential is

Thus, the sign of the heat capacity is the same as the sign of $ \partial \widetilde{r}_h/\partial \widetilde{T} $ at constant potential. We eliminateQby Eq. (7) and Eq. (8) to obtain $ \widetilde{T} = \widetilde{T}\left(\widetilde{r}_{h}, \Phi \right) $

According to Eq. (12), curves of the horizon radius $ \widetilde{r}_{h} $ in terms of temperature $ \widetilde{T} $ with fixed values of $ \Phi $ are plotted inFig. 1. For a fixed potential $ \Phi $ , $ \widetilde{T}\left(\widetilde{r}_{h}, \Phi \right) $ has a minimum $ \widetilde{T}_{\rm min} $ . When $ \widetilde{T}>\widetilde{T}_{\rm min} $ , there are two branches, of which the Small BH with $ \partial\widetilde{r}_h/\partial\widetilde{T}<0 $ is thermodynamically unstable and the Large BH with $ \partial\widetilde{r}_h/\partial\widetilde{T}>0 $ is thermodynamically stable. There exists one section of non-physical curve inFig. 1because temperature cannot be negative.

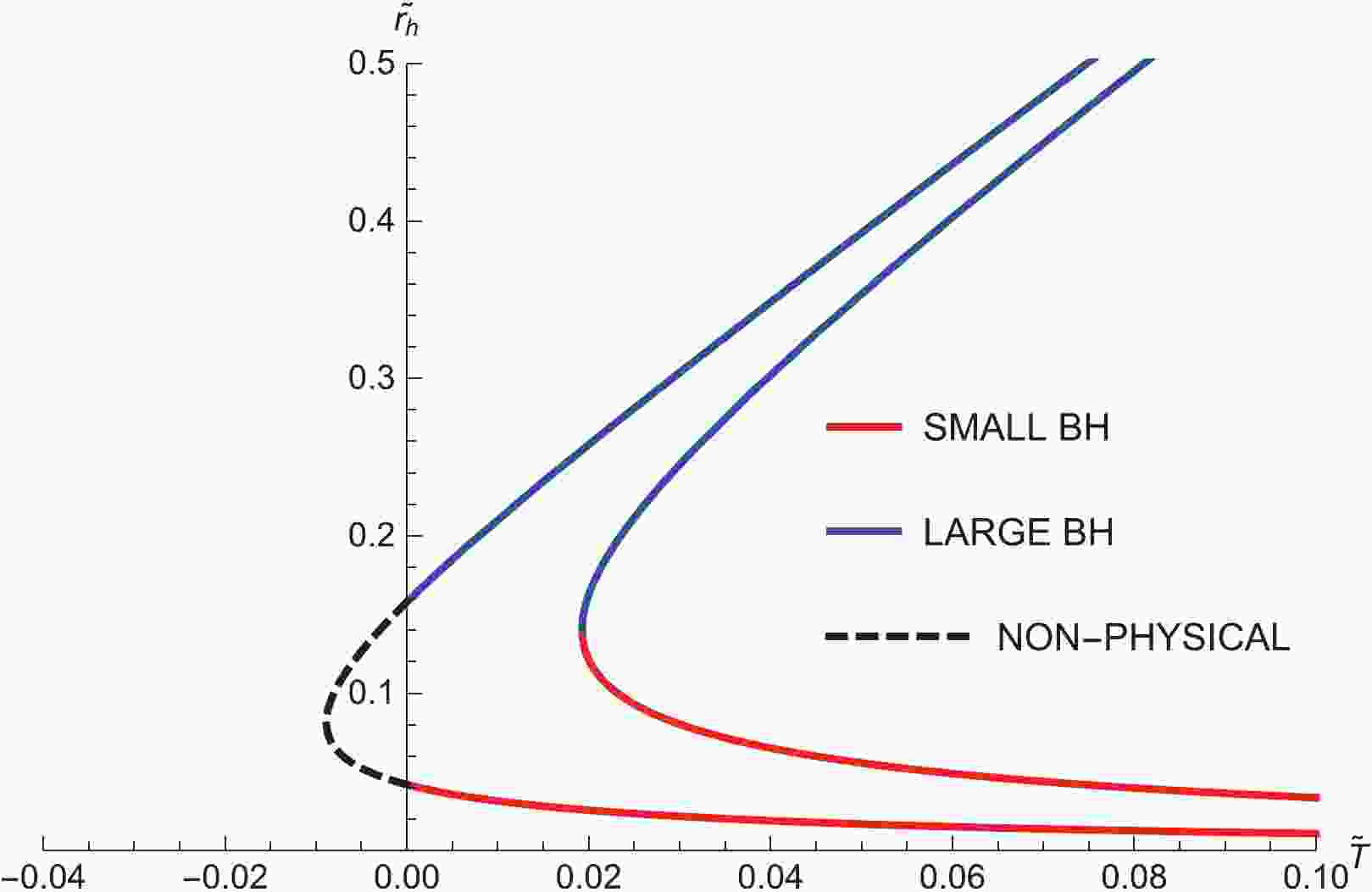

Figure 1.(color online) Plot of $ \widetilde{r}_h $ against $ \widetilde{T} $ for different $ \Phi $ with $ \omega = -2/3 $ and $ \widetilde{a} = 0.3 $ , where $\Phi = 0.99, \; 0.97$ from left to right.

It is worth noting that the thermal AdS space with a constant gauge potential is a classical solution of action (1) in the grand canonical ensemble, which should be also considered for our discussion. We find that there are two regions in $ \Phi-\widetilde{a} $ phase space. As shown inFig. 2, these two regions are referred to Region I and Region II. Specifically, in Region I, there exists a first-order phase transition as temperature $ \widetilde{T} $ increases. Nevertheless, in Region II, there is no phase transition.

Figure 2.(color online) Two regions in $ \Phi-\widetilde{a} $ phase space with $ \omega = -2/3 $ .

We discuss the phase structures and transitions of the black hole in the abovementioned two regions. Our method is as follows. Eqs. (6) and (7) imply thatMandTare functions of $ r_{h} $ andQ. According to Eq. (8), the charge can be written as the function of $ r_{h} $ and $ \Phi $ , i.e. $ Q = Q(r_{h},\Phi) $ . Substituting it into $ M(r_{h},Q) $ and $ T(r_{h},Q) $ , we have $ M(r_{h},\Phi) $ and $ T(r_{h},\Phi) $ . Thus,Fcan be written as the function of $ r_{h} $ and $ \Phi $ according to Eq. (9). The quantity in units oflcan be written as $ \widetilde{F}(\widetilde{r}_{h},\Phi) $ . The $ \widetilde{F}-\widetilde{T} $ diagrams with fixed $ \Phi $ are shown inFig. 3by regarding $ \widetilde{r}_{h} $ as the parameter. We notice that the behavior of the black hole for each value of $ \Phi $ is self-consistent with that shown inFig. 1; that is, for $ \widetilde{T}>\widetilde{T}_{\rm min} $ , there are always two branches, i.e., Small BH and Large BH, which shows again that the Large BH is more stable than the Small BH because of the lower free energy. In Region I, when temperature $ \widetilde{T} $ increases from zero but does not exceed $ \widetilde{T}_{\rm min} $ , the thermal AdS is the only phase. When $ \widetilde{T}>\widetilde{T}_{\rm min} $ , the Small BH branch and Large BH branch appear, but the thermal AdS is still the globally stable state until the occurrence of a first-order phase transition. As $ \widetilde{T} $ increases further, the Large BH ultimately becomes the thermodynamically preferred state. This process is illustrated inFig. 3(a). In Region II, there is no phase transition. Apparently, for any given temperature, Large BH is always the globally stable phase, as shown inFig. 3(b).

Figure 3.(color online) Plots of free energy $ \widetilde{F} $ against temperature $ \widetilde{T} $ for fixed $ \Phi $ of two regions. The black dot is where a first-order phase transition occurs.

Another $ \widetilde{T}-\Phi $ phase diagram is displayed inFig. 4. To avoid misunderstandings, the Small BH and Large BH are both denoted as Black Hole. We keep the parameters fixed; that is, we set $ \omega = -2/3 $ and $ \widetilde{a} = 0.3 $ inFig. 4(a). The temperature of the phase transition decreases to zero as $ \Phi $ rises. Another homologous phase diagram is shown inFig. 4(b), in which we adjust $ \omega = -2/5, -2/3, -9/10 $ , respectively, and $ \widetilde{a} = 1 $ . Compared with the former, this case is slightly distinct but the similarity is that there is only a first-order phase transition from the thermal AdS to Black Hole.

Figure 4.(color online) Phase diagrams in $ \widetilde{T}-\Phi $ space for various $ \omega $ and $ \widetilde{a} $ . Blue curve: $ \omega = -2/5 $ . Black curve: $ \omega = -2/3 $ . Red curve: $ \omega = -9/10 $ . The first-order phase transitions occur on these curves, causing them to become the dividing lines of the two phases.

In this section, we investigate the RN black hole surrounded by quintessence dark energy in a cavity. The action with a time-like boundary $ \partial {\cal{M}} $ on a four dimensional spacetime manifold $ {\cal{M}} $ is

The counter term above is the Gibbons-Hawking-York surface term.Kis the extrinsic curvature, $ \gamma $ is the metric on the boundary, and $ K_{0} $ is a subtraction term to make the Gibbons-Hawking-York term vanish in flat spacetime. When the metric on $ \partial {\cal{M}} $ is fixed, the Gibbons-Hawking-York term is crucial to obtain the correct equations of motion from performing the variation [28]. We can obtain the quintessence RN black hole solution from the action (13)

and

Suppose that the wall of the cavity surrounding the black hole is located at $ r_{B} $ . For such a system in a grand canonical ensemble, the wall is maintained at a temperatureTand a potential $ \Phi $ . The chargeQof the system is defined as equal to the black hole charge without the cavity and the entrophySof the system is defined as equal to a quarter of the event horizon area of the black hole $ S = \pi r_{h}^2 $ . For such a system, the total energy can be written as [72]

We define the temperature as

where $ T_h $ is the Hawking temperature of the black hole, and we have used $ r_+ $ to eliminateM

The potential is defined as

With all these quantities above, the first law of thermodynamics can thus be written as

The free energy can be given by

Physical quantities in units of $ r_B $ can be concise:

Plugging Eq. (22) into Eq. (21), we can obtain the specific expression for free energy:

Similarly, temperature and potential can be written in units of $ r_B $

and

However, there are some constraints on the physical quantities of the black hole, which can be presented in $ x-\widetilde{Q} $ space. First, $ x\leqslant 1 $ apparently holds because the horizon radius $ r_{+} $ is less than cavity radius $ r_{B} $ . On the one hand, we need to ensure that the temperature $ \widetilde{T} $ is not less than zero, which gives

Note that $ \widetilde{Q}^2 = x^2+3\widetilde{a}\omega x^{1-3\omega} $ means the emergence of an extreme black hole. On the other hand, all physical quantities must be real numbers, and thus, $ f(r_B)>0 $ needs to be satisfied, which gives

The above formula should be changed into $ \widetilde{Q}^2<1+3\widetilde{a}\omega $ when $ x = 1 $ . To simplify the calculation without loss of generality, we set $ \omega = -2/3 $ and only consider the case of $ \widetilde{Q}>0 $ because the constraints of $ \widetilde{Q} $ onxare symmetric. The physically allowed regions in $ x-\widetilde{Q} $ space are displayed inFig. 5, which are divided into three categories according to the value of $ \widetilde{a} $ . For $ \omega = -2/3 $ , the expression for Boundary I is $ \widetilde{Q} = 0 $ , that for Boundary II is $ x = 1 $ , that for Boundary III is $ \widetilde{Q} = \sqrt{x-\widetilde{a}x-\widetilde{a}x^2} $ , and that for Boundary IV is $ \widetilde{Q} = \sqrt{x^2-2\widetilde{a}x^3} $ . There is no Boundary III inFig. 5(a)because it is outside Boundary IV. Moreover, no Boundary II is inFig. 5(c)because the upper limit is $ x = (1-\widetilde{a})/\widetilde{a} $ instead of $ x = 1 $ .

Figure 5.(color online) Three types of distinct physically allowed regions in $ x-\widetilde{Q} $ space. The yellow area is physically allowed and the black curve is the boundary. The coordinates of these states areHState (0,0),MState ( $ \sqrt{1-2\widetilde{a}} $ ,1),NState ( $ \frac{1}{2} \sqrt{\widetilde{a}+\frac{1}{\widetilde{a}}-2},\frac{1-\widetilde{a}}{2 \widetilde{a}} $ ),LState (on Boundary III), andPState ( $ 0,\frac{1-\widetilde{a}}{\widetilde{a}} $ ).

Our strategy to study the phase structures and transitions is as follows. First, we use Eq. (25) to express $ \widetilde{Q} = \widetilde{Q}(x,\Phi) $ and substitute it into Eq. (24) and Eq. (23), respectively. Therefore, we have $ \widetilde{T}(x,\Phi) $ and $ \widetilde{F}(x,\widetilde{T},\Phi) $ . Again, substituting the above $ \widetilde{T}(x,\Phi) $ into $ \widetilde{F}(x,\widetilde{T},\Phi) $ , we obtain $ \widetilde{F}(x,\Phi) $ . Withxas the parameter, $ \widetilde{F}-\widetilde{T} $ diagrams for fixed $ \Phi $ can thus be plotted. However, those $ \widetilde{F}-\widetilde{T} $ curves are the cases that belong to the black hole solution. We have not considered the cases for the boundaries. The situation of each boundary is different, and we need to determine the lowest free energy on each boundary when the grand canonical ensemble parameters $ \widetilde{T} $ and $ \Phi $ are fixed.

On Boundary I, that is, $ \widetilde{Q} = 0 $ , we notice that

which implies that on the boundary other than $ (0, 0) $ , points with lower free energy can be found in the physically allowed region because the points on the right of $ (0,0) $ are beyond the physically allowed region. We refer to $ (0, 0) $ as theHstate, which might be a candidate with the globally lowest free energy.

On Boundary II, that is, $ x = 1 $ , which implies that the cavity merges with the event horizon, we find that

This indicates that on that boundary, the free energy will decrease as $ \widetilde{Q} $ increases, so the point with the lowest free energy is the right endpoint, which is denoted byMState. InMState, the black hole is an extremal black hole and the cavity merges with the event horizon.

On Boundary III, that is, $ \widetilde{Q} = \sqrt{x-\widetilde{a}x-\widetilde{a}x^2} $ , the free energy of this boundary can be written as

If $ \widetilde{T} $ and $ \Phi $ are determined, the globally minimal free energy on this boundary is also determined because it is only the function ofx. Nevertheless, what we really need is that when $ \Phi $ is fixed, the globally minimal free energy of the boundary changes with temperature $ \widetilde{T} $ . To solve this problem, we perform the following deduction:

Substituting this into Eq. (30), we obtain

Withxas the parameter, $ \widetilde{F}-\widetilde{T} $ curves for fixed $ \Phi $ can be plotted. It is worth noting that the above equations can only describe the behavior of stagnation points on the boundary, and thus, the endpoints are supposed to be considered because there is no singularity for $ \widetilde{F}(x,\Phi) $ on Boundary III. For the case shown inFig. 5(b), $ (1-\widetilde{a})/2\widetilde{a}< $ $ x<1 $ . We denote $ x = (1-\widetilde{a})/2\widetilde{a} $ asNState and $ x = 1 $ asMState, and the point betweenMState andNState may also be the candidate of globally minimal free energy, which is denoted asLState. For the case shown inFig. 5(c), $ (1-\widetilde{a})/2\widetilde{a} . We denote $ x = (1-\widetilde{a})/\widetilde{a} $ asPState andLState betweenPState andNState may have the locally minimal free energy. InNState, the black hole is an extremal black hole, and the cavity merges with the outer event horizon. InLState, the cavity merges with the outer event horizon. InPState, the charge of the black hole equals zero, and the cavity merges with the outer event horizon.

On Boundary IV, that is, $ \widetilde{Q} = \sqrt{x^2-2\widetilde{a}x^3} $ , the black hole is an extremal black hole. In the previous discussion, we have actually reached such a conclusion that Boundary IV belongs to the black hole solution, and that is why Eq. (26) can take the equals sign. Therefore, Boundary IV does not need to be considered again and the globally free energy on the boundary can only be the endpoints, namelyHState orMState inFig. 5(a)andHState orNState inFig. 5(b)andFig. 5(c).

Once again, we use the heat capacity at constant potential $ C_{\Phi} $ to judge thermal stability. As discussed before, $ C_{\Phi}>0 $ and $ C_{\Phi}<0 $ correspond to stable and unstable states, respectively. Using $ \widetilde{T}(x,\widetilde{Q}) $ and $ \Phi(x,\widetilde{Q}) $ in Eqs. (24) and (25) to eliminate $ \widetilde{Q} $ , we obtain the expression ofxagainst $ \widetilde{T} $ and $ \Phi $ , which is plotted inFig. 6. We divide it into three cases in advance, and each case corresponds to a subgraph.

Figure 6.(color online) Plots ofxagainst $ \widetilde{T} $ for different $ \widetilde{a} $ and $ \Phi $ . The Small BH branches with a negative slope are unstable states while the Large BH branches are stable with a positive slope.

In addition, we find there are nine regions in $ \Phi-a $ phase diagram, as shown inFig. 7. To obtain the detailed information about the phase structures and transitions of each region, we display the $ \widetilde{F}-\widetilde{T} $ diagrams of the physically allowed regions and the candidates on the boundaries inFig. 8. The specific and representative cases for each region are selected, and the subsequent analyses are as follows.

Figure 7.(color online) Nine regions in $ \Phi-\widetilde{a} $ phase space.

Figure 8.(color online) Plots of free energy $ \widetilde{F} $ against temperature $ \widetilde{T} $ in nine regions. The black dot is where a first-order phase transition occurs while the gray dot is where a second-order phase transition occurs. The solid lines represent the physically allowed region, and the dashed lines represent the boundaries.

For Region I, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(a), and the corresponding physically allowed region is shown inFig. 5(a). As discussed before,HState andMState are the candidates for minimal free energy on the boundary. Therefore, one can plot the free energy ofHState,MState, and the locally stationary points in the physically allowed region against temperature. There are two branches for the physically allowed region, Small BH and Large BH, which connotes that there are both a locally maximal and a locally minimal free energy in that region. When temperature $ \widetilde{T} $ is small,HState has the minimal free energy; thus, it is the globally stable state. When temperature continues to rise, a first-order phase transition occurs fromHState to Large BH, and the latter becomes the thermodynamical preferred state. As $ \widetilde{T} $ increases further, a second-order phase transition occurs; then,MState becomes the stablest state.

For Region II, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(b). Compared with Region I, only the value of $ \Phi $ changes in this region; thus, the candidates remain unchanged since the physically allowed region stays the same. However, the difference is that the free energy of the point where Large BH tangent toMState is higher than that of the first-order transition, resulting in only the first-order transition fromHState toMState occuring in this region.

For Region III, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(c), from which one can see that only the Small BH branch is in the physically allowed region. This just corresponds to the case $ \Phi = 50 $ inFig. 6(a). As $ \widetilde{T} $ increases, there is only a first-order phase transition occurring fromHState toMState.

For Region IV, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(d), of which the physically allowed region is displayed inFig. 5(b)and the $ x-\widetilde{T} $ diagram is plotted inFig. 6(b). It is distinct from the case shown in Region II, mainly because the locally minimal free energy on the boundary lies atLState, which is betweenMState andNState. We can see fromFig. 8(d)thatLState is actually a combination of a curve and a straight line. The curve corresponds to the movement ofLState on Boundary III, while the straight line corresponds toLState coinciding withMState. When the temperature $ \widetilde{T} $ rises, the black hole undergoes a first-order phase transition fromHState toLState.

For Region V, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(e). Unlike in Region IV, in this region, the free energy of the point where Large BH is tangential toLState is lower than that of the first-order transition, resulting in the addition of a second-order transition from Large BH toLState. In general, a first-order phase transition and a second-order phase transition occur sequentially in this region.

For Region VI, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(f). There is only the Large BH branch for the physically allowed region, which can also be realized fromFig. 6(b). As $ \widetilde{T} $ increases, a second-order phase transition occurs from Large BH toLState.

For Region VII, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(g)and the physically allowed region is shown inFig. 5(a). Notably, no phase transition occurs in this region. In this case, only the point that has the minimal free energy on the boundary might be the globally stable state, on account of Eqs. (24) and (25) without real roots in the physically allowed region. It also implies that it is impossible to find an $ x-\widetilde{T} $ curve inFig. 6(a), and hence, there are only three corresponding curves for four regions.

For Region VIII, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(h). As $ \widetilde{T} $ increases, a first-order transition occurs fromHState to Large BH. This region is very similar to Region V, but the difference is that no second-order phase transition occurs because the Large BH line andLState line will never intersect.

For Region IX, the $ \widetilde{F}-\widetilde{T} $ diagram is plotted inFig. 8(i). This region is a deformation of Region VI, and it is very similar to Region VIII in that when $ \widetilde{T} $ tends to infinity, the Large BH branch and theLState line approach infinitely but never intersect, and thus, no phase transition occurs.

In summary, as $ \widetilde{T} $ increases, a first-order phase transition occurs in Regions II, III, IV, and VIII, a second-order phase transition occurs in Region VI, a first-order and a second-order phase transition occur successively in Region I and Region V, and no phase transition occurs in Regions VII and IX. InFig. 7, one can refer to $ L_{i,i+1} $ as the critical line between Regioniand Region $ i+1 $ . As $ \widetilde{a} $ increases, $ L_{34} $ , $ L_{45} $ , $ L_{56} $ , and $ L_{67} $ originate from the same $ \Phi $ and gradually diverge. Meanwhile, the value of $ \Phi $ on $ L_{12} $ , $ L_{23} $ , $ L_{34} $ and $ L_{45} $ decreases and converges to zero as $ \widetilde{a}\rightarrow 0.5 $ . It is worth noting that the straight line $ \widetilde{a} = 0.5 $ divides the original $ L_{56} $ into the current $ L_{56} $ and $ L_{89} $ . This is because, when $ \widetilde{a}>0.5 $ , the Large BH branches tend to infinity and never intersect withLState lines as $ \widetilde{T} $ rises, as explained before. However, for the general case, if $ 1+3\widetilde{a}\omega<0 $ ,MState disappears, and the Large BH branches of the physically allowed region never intersect withLState lines as $ \widetilde{T} $ rises, which leads to the disappearance of the second-order phase transition. Equivalently, the equation of the vertical line in the $ \Phi-\widetilde{a} $ diagram is

It is intriguing to plot the $ \widetilde{T}-\Phi $ phase diagrams to conclude the conclusions above. As shown inFig. 9, we set $ \widetilde{a} = 0.45 $ and $ 0.7 $ , respectively. InFig. 9(a), there are three potential phases with the lowest free energy. When $ \Phi<\Phi_{c1}\approx0.12 $ ,HState, Black Hole, andLState in turn become the globally stable state as $ \widetilde{T} $ increases. When $ \Phi_{c1}<\Phi<\Phi_{c2}\approx1.13 $ , onlyHState andLState have the globally lowest free energy with the change in $ \widetilde{T} $ . When $ \Phi_{c2}<\Phi<\Phi_{c3}\approx1.35 $ , the three phases become the candidates of lowest free energy again. Significantly, as $ \Phi $ rises to $ \Phi_{c3} $ , the first-order phase transition line betweenHState and Black Hole will become almost a vertical line. It corresponds to the transition between Region V and Region VI; that is, when $ \Phi $ increases by a small amount, $ \widetilde{T} $ decreases sharply. InFig. 9(b), there are only two potential phases with the lowest free energy. As $ \Phi $ rises to $ \Phi_{c4}\approx1.83 $ , $ \widetilde{T} $ decreases rapidly, which corresponds to the transition between Region VIII and Region IX.

Figure 9.Phase diagrams in $ \widetilde{T}-\Phi $ space for different $ \widetilde{a} $ . A first-order phase transition occurs on the solid curve and a second-order phase transition occurs on the dashed curve. The black dot is the intersection of the two curves.

In this paper, we considered a grand canonical ensemble and studied the phase structures and transitions of an RN black hole surrounded by quintessence dark energy in AdS space and in a cavity, separately. For the quintessence RN-AdS black hole, we fixed the temperature and the potential and found that for some temperatures, there are two branches of the black hole, namely Small BH and Large BH. By calculating the heat capacity at constant potential, we discovered that the Small BH branch is unstable, whereas the Large BH is stable. Furthermore, a first-order transition occurred as temperature increased for some small values of $ \Phi $ instead of large $ \Phi $ . Thus, we divided all the cases into two regions in the $ \Phi-\widetilde{a} $ phase diagram inFig. 2, in which one point can decide whether a phase transition occurs or not. Moreover, a $ \widetilde{T}-\Phi $ phase diagram is displayed inFig. 4.

Moreover, we investigated the phase structures and transitions of the black hole in another boundary condition, i.e., the Dirichlet wall. Initially, we used the energy of the system obtained in [72] to construct the first law of thermodynamics. The case for the barotropic index $ \omega = -2/3 $ was studied in detail. Moreover, we obtained the constraints of black hole parametersxand $ \widetilde{Q} $ in a cavity, which were separated into three cases depending on the value of $ \widetilde{a} $ . In the physically allowed region, we obtained the $ \widetilde{F}-\widetilde{T} $ curves for fixed $ \Phi $ withxas the parameter. On the boundary, the position of the latent lowest free energy was evaluated through the expression of $ \widetilde{F} $ , and we labeled these points in the $ x-\widetilde{Q} $ space as different states. Finally, we plotted the $ \widetilde{F}-\widetilde{T} $ diagrams and obtained the phase transitions. In summary, there are nine regions with different phase structures. To distinguish them more clearly, we plotted the nine regions in the $ \Phi-\widetilde{a} $ phase diagram inFig. 7. The $ \widetilde{T}-\Phi $ phase diagrams were also plotted inFig. 9, in which the phase structures for fixed $ \omega $ and $ \widetilde{a} $ could be displayed clearly. The discrepancy in the phase structures and transitions of a quintessence RN black hole between the two different boundary conditions is distinct.

We are grateful to Hanwen Feng, Wei Hong, Peng Wang, and Mingtao Yang for useful discussions and valuable comments.
