Analysis of strong refractive effect within¹¹Li projectile structure

The study of halo nuclei that are far from the valley of β-stability and close to the nucleon drip-line has become one of the main topics in modern nuclear structure physics. This halo phenomenon for exotic nuclei has created much interest and hundreds of papers since its discovery in the mid-1980s. The halo of a nucleus arises from the very weak binding of the last one or two valence nucleons (protons or neutrons) to the core containing all other nucleons that are tightly bound; this weak binding energy leads to the creation of a neutron/proton tail. These halo nuclei have small separation energy as a result of the presence of a halo neutron/proton tail, extended nucleon density distributions, or quite large root mean square (rms) radii, and the emitted nucleons have narrow momentum distributions [1-3]. It has been proven that there are two types of halo nuclei: neutron and proton halos, which depend on the type of nucleon arrangements of the halo structure. Nuclei that have a one proton halo include⁸B and²⁶P; those that have a one neutron halo are¹¹Be and¹⁹C. Nuclei that have a two proton halo are exhibited by¹⁷Ne and²⁷S [4-6], and those that have a two neutron halo include⁶He,¹¹Li,¹⁷B,¹⁹B, and²²C [7-11]. These halo nuclei consist of three body systems (an inert core nucleus plus two valence neutrons or two valence protons).

Exotic¹¹Li nuclei have attracted much theoretical and experimental interest as a typical case. Their first production was described by Postanzeret al.in 1966 [12], and some special properties such as their large matter radii were discovered by Tanihataet al.[1,13]. The¹¹Li nucleus has numerous interesting properties. i) It consists of a core of three protons and six neutrons as well as a halo of two loosely bound neutrons;¹¹Li belongs to the three-body system (⁹Li+n+n), which is called a Borromean system [14,15]. ii) The small separation energy (S_2n) of the two-neutron halo is onlyS_2n= 300 KeV [1], and in new research, it is found to beS_2n= 378±5 KeV [15,16]. This small separation energy leads to an increase in the matter radius of¹¹Li compared with other Li isotopes and forms a low-density halo, where nuclear radii increase with the mass numberAof a nucleus asA^1/3. Further, it has been found that the matter radius of a¹¹Li nucleus significantly deviates from theA^1/3law, whereas other Li isotopes follow this law exactly [16]. iii) The rms radius is quite large compared to that of⁹Li (2.32±0.02) fm [13], which was found to be (3.12±0.16) fm [1,13], and the latest measurements propose that it might be as large as (3.55±0.10) fm [2], where the size of the¹¹Li nucleus is approximately equal to the size of⁴¹Ca and as large as²⁰⁸Pb [16,17], This means that two halo neutrons are mostly placed far from the⁹Li core. iv) It cannot be used as a target because it has a very short half-life time of 8.2 ms [18] for β^-decay. All these properties make the¹¹Li nucleus an interesting halo nucleus that can be used as a projectile on several targets for studying the structure.

In the last several decades, numerous studies have generated widespread interest in the interaction cross section of the¹¹Li nucleus as a projectile with several different targets [19-27]. The quasi-elastic scattering of¹¹Li on¹²C was measured by Kolataet al. [20] at 60 MeV/n, and on²⁸Si at 29 MeV/n by Lewitowiczet al. [21]. They used the coupled-channels (CC) method to reproduce the data, where the energy resolution did not allow for the separation of the true elastic scattering from inelastic scattering. A recent experiment for¹¹Li scattering on¹²C was performed by Petersonet al.[22] at 50 MeV/n. They successfully separated the elastic and inelastic reaction channels in the critical forward-angle region. All the previous experimental studies [20-22] of quasielastic scattering of the neutron-halo nucleus of¹¹Li with low-Ztargets have reported and confirmed the strong refractive effect of this scattering process as first predicted by Satchleret al.[23]. This refractive effect has very long-range absorption due to¹¹Li breakup, which increases the reaction cross section and is required for reproducing the experimental data. Mermaz [24] showed that it is necessary to use a surface potential that peaked very far outside the nucleus in order to reproduce the forward interference minimum core. The necessity of adding this long tail, which was introduced by Mermaz to the real part of the optical model potential to fit¹¹Li scattering on¹²C and²⁸Si, has been verified viaS-matrix inversion techniques by Cooper and Mackintosh [25]. Several studies [19,26,27] treated the refractive long tail using the dynamic polarization potential (DPP) generated by the strong coupling of the breakup channels with the elastic one for¹¹Li scattering. Khalili [27] proposed a theoretical interpretation of the data using Faddeev three-body wave functions within a four-body Glauber model; however, the results were not sensitive to details of the¹¹Li wave function. The problem was that the required tail was much greater than that predicted by simple double folding (DF) model calculations, and the DPP corresponding to these models is repulsive in nature, rather than attractive.

Recently, the São Paulo potential (SPP) [28-31] has been used to successfully describe the elastic scattering and peripheral reaction channels for a large number of heavy-ion systems in a very wide energy region, as well as to describe the total reaction. In addition, it has been used for analyzing the elastic scattering of stable, weakly bound, and exotic nuclei on a variety of targets [32]. Khoaet al.[33] have generated the rearrangement term (RT) of the nucleon optical potential (OP) to modify the density and energy dependence of the CDM3Yn interactions, which succeeded in reproducing the Airy oscillation.

In this respect, we reanalyze the elastic scattering of¹¹Li within a two-body model (core+halo) on²⁸Si at 29 MeV/n and on¹²C at 50 and 60 MeV/n in an attempt to obtain an interpretation for the strong refractive effect within the¹¹Li projectile structure. Our model is based on a semimicroscopic approach. The real part is calculated microscopically by folding several versions of M3Y effective nucleon-nucleon (NN)interaction (DDM3Y and CDM3Y6) in addition to the SPP. Three different densities for the¹¹Li nucleus in conjunction with one density for¹²C and²⁸Si targets are used. The imaginary part is calculated in the phenomenological Wood-Saxon (WS) form. Moreover, the effect of the RT in cross section calculations is investigated. The present paper is organized as follows. A theoretical formalism is presented in Sec. II, while Sec. III shows the results of analysis and discussion. Finally, concluding remarks are summarized in Sec. IV.

The optical nucleus-nucleus potential used in the present work is given by

where $ {U}_{\rm C}\left(R\right) $ is the Coulomb potential, $ {V}_{\rm DF}\left(R\right) $ is the DF real potential, andW_v(R) is the imaginary potential in WS form. The real DF potential is calculated as

where $ {\rho }_{P}\left({r}_{1}\right) $ , $ {\rho }_{T}\left({r}_{2}\right) $ are the nuclear matter (NM) densities of the projectile and the target, respectively, while $ {v}_{NN}\left(S\right) $ is the effectiveNNinteraction between two nucleons, $ S=\overrightarrow{R}- $ $\overrightarrow{{r}_{1}}+\overrightarrow{{r}_{2}}. $

and the phenomenological imaginary WS potential is defined as

whereW₀,R_i, anda_iare the depth, radius, and diffuseness of the potential, respectively; $ {R}_{i}={r}_{i}\left({A}_{P}^{\frac{1}{3}}+{A}_{T}^{\frac{1}{3}}\right), $ whereirefers toV,W; andA_Pand A_Tare the projectile and target mass numbers, respectively.

For the projectile nucleus, three different density distributions are used, all of which consider that the structure of the¹¹Li nucleus consists of⁹Li as the core and two halo neutrons. The first one is the cluster-orbital shell model approximation (COSMA), which can be expressed as [34]

whereZandNrefer to the atomic number (protons) and number of neutrons, respectively, andN_CXandN_VXare fixed numbers, whereN_CXrefers to the number of protons and neutrons in the core nucleus, whileN_VXrefers to the number of neutrons in the halo term;A= 0.81,B= 0.19, $ {N}_{CZ} $ = 3, $ {N}_{CN} $ = 6, $ {N}_{VZ} $ = 0, $ {N}_{VN} $ = 2, $ a $ = 1.89 fm, and $ b $ = 3.68 fm [34].

The second density distribution is taken in the semi-phenomenological density (SPD) form, where the total matter density distribution can be taken as

and

Since $ {\rho }_{\rm core}\left(r\right) $ is the density of the neutrons in the core nucleus, while $ {\rho }_{\rm tail}\left(r\right) $ represents the 2n-halo neutron density distribution, the core part of both neutron and proton density distributions can be written as follows [35,36],

wherepstands for protons, andnfor neutrons. The central densities $ {\rho }_{p}^{0} $ and $ {\rho }_{n}^{0} $ are determined from the normalization conditions:

whereN(Z) is the total number of neutrons (protons) in the nucleus, and the other parameters ( $ {\alpha }_{i},{a}_{i}) $ can be determined in detail using Refs. [35,36]. The tail/halo part can be written as [35]

whereN₀is determined from the normalization

where 2 refers to the number of halo neutrons. Finally, the third density distribution form is that deduced using the simpler non-relativistic Hartree-Fock (HF) model [37].

For¹²C and²⁸Si target nuclei, only the two-parameter Fermi model (FM) is used [38]

where the rms radii, which are extracted from this density, are 2.298 and 3.012 fm for¹²C and²⁸Si, respectively.

Based on the M3Y interaction, which is designed to reproduce theG-matrix elements for Paris and Reid [39,40] effectiveNNinteractions, two versions of the M3Y effectiveNNinteraction are used. These versions depend on two different forms of the density and energy-dependence (DDM3Y and CDM3Y6). In addition to the SPP, the CDM3Y6 interaction, which was recently modified by the RT [33], is also used. The first method is the DDM3Y effective interaction, defined as [38]

where

$ C,\, \alpha $ , and $ \beta $ are the energy dependent parameters, and $ \rho ={(\rho }_{P}+{\rho }_{T}) $ . The factor $ g\left(E, S\right) $ is represents the original zero range M3Y-ReidNNinteraction [38], which can be written in the form

whereEis the laboratory energy per projectile nucleon, $ \overrightarrow{s} $ is the inter-nucleon separation, $ \delta \left(s\right) $ is the delta function, $ {{\hat J}}\left(E\right) $ represents the effects of the knock-on exchange between interacting nucleons, and $ {\upsilon }_{D}\left(r\right) $ represents the direct parts. The term $ {{\hat J}}\left(E\right) $ is taken as [38]

with the direct part in the M3Y-Paris as

The nextNNeffective interaction used is the other density dependent version (CDM3Y6) for the direct and exchange terms, where the full CDM3Y6 interaction form is defined as [41]

where the direct part $ {\upsilon }_{D}\left(r\right) $ is that in Eq. (18), and the knock-on exchange parts in the infinite-range exchange are taken as

with the function $ F\left(\rho \right) $ written as [41,42],

and $ g\left(E\right) $ is the energy dependent factor, given by [41]

For reproducing the saturation properties of symmetric NM in the standard HF calculation, and to have a reliable density dependent interaction for use at different energies (the high-momentum part of the HF single-nucleon potential), the modified CDM3Y6 interaction (CDM3Y6-RT) with the RT contribution has been carried out. The density dependence of ΔF $( \rho ) $ obtained from the exact expression of the RT given as [33]

In contrast, we use the SPP, where the radial and energy dependence is written as follows [43]:

whereβ=v/c,vis the local relative velocity between the two nuclei, andV_F(R) is a folding potential, such as the expression in Eq. (2) where $ {\upsilon }_{nn}(S=\overrightarrow{R}-\overrightarrow{{r}_{1}}-\overrightarrow{{r}_{2}}) $ is a physicalNNinteraction given by $ {\upsilon }_{nn}\left(S\right)= {V}_{0}\delta \left(S\right) $ using $ {V}_{0}=-456\; {\rm MeV}\;{\rm fm}^{3} $ , and the usage of the delta function corresponds to the zero range approach. Systemizations of the nuclear densities were achieved in Ref. [44], providing a good explanation of matter and charge distribution. In this work, for the target¹²C, we assume that $ {a}_{m}=0.53 $ fm and $ {a}_{c}=0.56 $ fm for the matter and charge diffuseness, respectively. The matter and charge distribution radii are given by $ {R}_{M}=1.3{A}^{1/3}-0.84 $ and $ {R}_{C}=1.76{Z}^{1/3}-0.96 $ , respectively. The matter density of the projectile nucleus is used as tabulated in numerical form.

The analysis of¹¹Li+¹²C,²⁸Si elastic scattering is carried out by using the OPs generated from Eq. (1). The DF real parts of the OPs are evaluated using several versions of the M3Y density- and energy dependent effective interactions such as DDM3Y (14), CDM3Y6 (19), and CDM3Yn-RT (23), in addition to the SPP. The imaginary potential is calculated using Eq. (4) as a phenomenological WS form with three parameters. The obtained potentials are then fed into the HIOPTM-94 [45] computer code to calculate the elastic scattering differential cross sections. For obtaining the best fit, searches on the potential parameters are performed using the HIOPTM-94 code to achieve the minimum $ {\chi }^{2} $ value, defined as [46,47]

$ {\sigma }_{\rm th}\left({\sigma }_{\rm ex}\right) $ is the theoretical (experimental) cross section at an angle $ {\theta }_{K} $ in the c.m. system, $ {\Delta \sigma }_{\rm ex} $ is the experimental error, andNis the number of the data points. For the experimental errors of all measured data, an average value of 10% is used. For semi-microscopic analysis, searches are carried out on four parameters (the real renormalization factor (N_R) in conjunction with the three WS imaginary potential parametersW₀,R_ianda_i). In contrast, for the phenomenological WS approach, searches are performed on six free parameters (three WS real potential parameters, V_v,R_v, anda_v, and three imaginary potential parts,W₀,R_i, anda_i).

The radial shapes of the considered different types of density distributions of¹¹Li are shown inFig. 1, in linear and logarithmic scale. The corresponding calculated rms radii of protons, neutrons, and matter for all used density distributions of the¹¹Li nucleus are listed inTable 1, as compared with previous works and experimental data. The present results agree with the previous calculations that predict a long tail halo for the¹¹Li nucleus, in comparison with the experimental data, as summarized inTable 1. Further, our calculations agree well with the previous rms values; however, there is a slight difference compared with the experimental data. Moreover, previous studies have extracted these quantities [24,48-51], which agree with the present calculations, but it is noticed that, in the important study of Mermaz [24], the value $ {\langle {R}_{m}\rangle }^{\frac{1}{2}}=3.74 $ was extracted, which is greater than the experimental and other theoretical calculations.

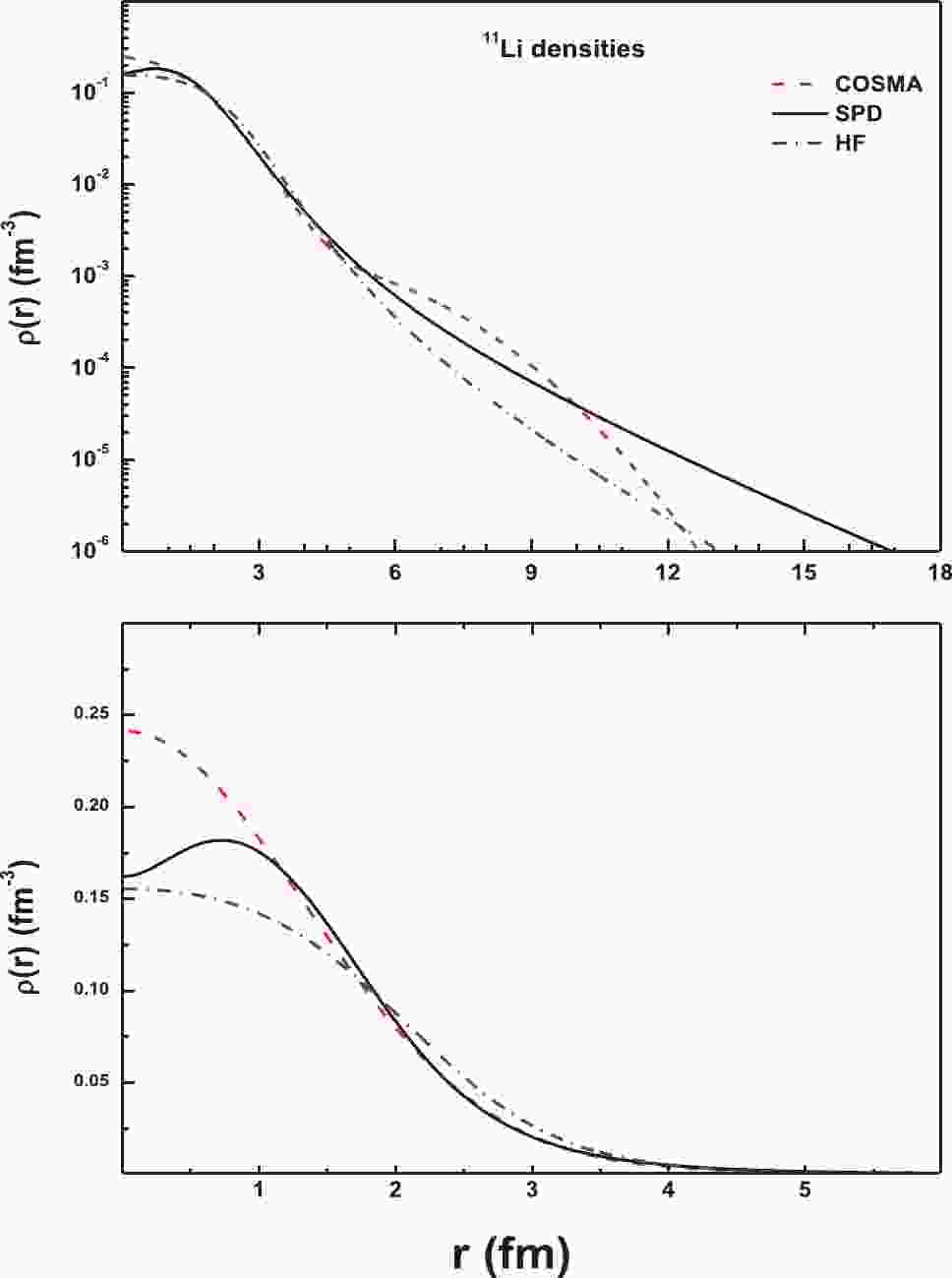

Figure 1.(color online) The densities of¹¹Li with logarithmic and linear scales.

density	Rp			Rn			Rrms
	calc.	Ref.		calc.	Ref.		calc.	Ref.
COSMA	2.32	2.32 [35]		3.62			3.318	3.21 [51]
SPD	2.16	2.17 [36]		3.67	3.67 [36] 3.21 [13]		3.325	3.32 [36] 3.12 [1,13]
HF	2.24			3.08			2.872	2.846 [48]
exp.	2.88 $ \pm 0.11 $ [13]			3.21 $ \pm 0.17 $ [13]			3.12 $ \pm 0.16 $ [13]

Table 1.Calculated rms proton (R_p), neutron (R_n), and mass (R_rms) radii in fermis for the three NM densities of the¹¹Li nucleus.

The results of the considered density distributions are illustrated inFig. 1. It can be seen that COSMA density has a larger value than those of the SPD and HF at small distances (r≤ 1 fm), while the latter density has the smallest value. At large distances (r≥ 10 fm), we can see that all the used densities have a long tail due to the structure of¹¹Li as a core with two valence neutrons. The SPD density has the longest tail, so it gives a successful description for the largest radius of¹¹Li. In contrast, investigation of the halo densities for the¹¹Li nucleus and the consideredNNeffective interaction effects is performed through the calculation of the DF potential of Eq. (2). The real parts of the OPs are calculated with the DDM3Y, CDM3Y6, and CDM3Y6-RT effective NN interactions in addition to the SPP folded with the considered three densities, COSMA, SPD, and HF, at energies of 50 and 60 MeV/n, for¹¹Li scattered by¹²C, and at 29 MeV/n, for the¹¹Li+²⁸Si system. The physical observations related to the resulted potentials for¹²C at an energy of 60 MeV/n are presented inTable 2andFig. 2, as one case.

Figure 2.(color online) The real DF for¹¹Li+¹²C at 60 MeV/n using the three densities with DDM3Y, CDM3Y6, and CDM3Y6-RT effective NN interactions and the SPP withN_R=1.0 with a linear scale.

The folded potentials in the present work are calculated as a sum of two parts for projectile (¹¹Li) density, and halo (neutrons) density plus core density is folded with target density andNNeffective interaction. The effects of different densities of¹¹Li structure and the considered effective interaction on our potential model represent our focused study point.

Generally, as we have seen fromFig. 2andTable 2, the folded potentials using the considered densities and effective interaction have approximately the same depths and behavior for the density-dependent effectiveNNinteraction with a slight difference. FromTable 2, we notice that the long potential rms is to be achieved with COSMA and SPD densities, CDM3Y6-RT, and DDM3Y effective interactions, while the smallest potential tail is to be achieved with HF density, SPP, and CDM3Y6 effective interactions. In addition, the energy dependence for the real potential volume integral of the¹²C target is observed, where it decreases with increasing energy.Fig. 2confirms these results, where the SPP gives the largest depth compared to those using the DDM3Y and CDM3Y6, while CDM3Y6-RT gives the smallest value among all; this arises in the interior region atr(r $ < $ 2 fm). The folded potentials of the other (50 MeV/n) energies and those for the²⁸Si target at 29 MeV/n have the same behavior as those at 60 MeV/n, but with different depths, where the depths of the potentials increase with decreasing energy. The obtained potential agrees well with the systematic suggested potential models based on the break up potential of Yabana [52], the DP potential of Khalili [27], and the folded potentials of Khoa [26]. However, the extracted real folded potentials have a shorter tail in facing the successful Mermaz potential [24].

Many attempts have been made to generate appropriate OPs for analyzing the angular distribution cross section of¹¹Li projectile reactions. The result drawn from all previous theoretical studies [19,23-27] is that the nearside/farside interference minimum is missing or greatly attenuated in the elastic scattering of¹¹Li with low-Ztargets at intermediate energies. The presence of a sharp minimum at 4⁰in the calculated angular distributions was due to the contamination by⁹Li ions resulting from projectile breakup [22]. The successful theoretical work that explained this discrepancy at forward angles was proposed by Mermaz [24] using phenomenological potential with coupling for low excited inelastic channels and many adjusted free parameters.

The same type of analysis as previously used has been presented, that is, the one with WS potential. To improve the agreement with the considered experimental data, we employ the widely used phenomenological WS potential with six parameters. More parameters in such a famous model means more flexibility in order to obtain the best fit that can be used later as a guide. The elastic scattering for the¹¹Li nucleus from¹²C at the two energies, 50 and 60 MeV/n, and that from²⁸Si at 29 MeV/n have been analyzed in the framework of the conventional optical model by using the standard WS form, as in Eq. (4). Moreover, a semi-microscopic optical DF folding potential has been generated to study the sensitivity ofNNinteraction, as well as the form of the halo density distributions of¹¹Li on reaction differential cross sections. The obtained results are listed inTables 3to5and shown inFigs. 3to6.

E/(MeV/n)	V/MeV	rv/fm	av/fm	W/MeV	ri/fm	ai/fm	-J/(MeV fm3)		$ {\chi }^{2} $	$ {\sigma }_{R} $
							JR	JI
11Li +12C
50	116.4	0.83	0.81	2.83	2.19	0.057	286.03	86.68	13.0	2009
60	295.92	0.21	1.35	20.72	0.92	1.20	233.33	86.12	5.2	1400
11Li +28Si
29.0	261.91	0.41	1.78	7.029	2.29	0.362	201.57	33.05	2.96	1495

Table 3.Best fit OP parameters of the WS model.

Figure 3.(color online) The best fit angular distribution of¹¹Li scattered elastically from¹²C and²⁸Si calculated with the WS potential model. The symbol represents the experimental data taken from Refs. [20-22].

E/(MeV/n)	density	potential	NR	-J/(MeV fm3)		W/MeV	ri/fm	ai/fm	$ {\chi }^{2} $	$ {\sigma }_{R} $
				JR	JI
29	COSMA	CDM3Y6-RT	0.64	198.76	45.12	14.69	2.188	0.767	4.53	1460
		DDM3Y	0.82	242.49	52.12	15.65	2.235	0.709	4.53	1528
		CDM3Y6	0.69	247.20	50.45	15.40	2.227	0.728	4.60	1518
		SPP	0.899	282.99	46.04	14.79	2.198	0.772	5.00	1485
	SPD	CDM3Y6-RT	0.62	193.58	45.23	15.73	2.174	0.795	5.31	1457
		DDM3Y	0.81	238.51	51.81	15.61	2.234	0.718	5.01	1527
		CDM3Y6	0.68	243.41	50.53	15.60	2.220	0.740	5.34	1516
		SPP	0.896	277.11	46.15	14.82	2.198	0.770	5.85	1483
	HF	CDM3Y6-RT	0.58	181.83	45.95	16.60	2.128	0.849	6.37	1442
		DDM3Y	0.77	229.06	52.00	16.11	2.218	0.736	5.62	1517
		CDM3Y6	0.64	233.83	50.95	16.16	2.204	0.750	6.22	1504
		SPP	0.87	273.86	51.08	17.76	2.148	0.803	7.17	1481

Table 5.The best fit parameters for the elastic scattering data for the¹¹Li+²⁸Si system at an energy of 29 MeV/n usingNNinteraction (DDM3Y, CDM3Y6, CDM3Y6-RT, and SPP) with the considered three densities (COSMA, SPD, and HF).

Figure 6.(color online) Same asFig. 4, but for the elastic scattering of¹¹Li from²⁸Si at energy 29 MeV/n. The experimental data are taken from Ref. [21].

The results of angular distributions obtained using the WS optical model are compared with experimental data inFig. 3, and their potential parameters are listed inTable 3. As shown inFig. 3(a), the best fit with experimental data has been achieved for the²⁸Si target without an anomaly at near or far angles. The results are more successful than those of previous studies that used a combination of elastic and inelastic parts to achieve a reasonable result [21]. In contrast, a reasonable fit with data has been obtained for the¹²C target at the two energies, 50 and 60 MeV/n, as shown inFig. 3(b,c), but with a sharp minimum between $(2.5)^\circ $ and $ 4^\circ$ .

The results displayed inTables 4and5as well asFigs. 4to6have been obtained using the semi-microscopic potentials. Firstly, it is noticed that theN_Rcoefficients are close to one, i.e., 1.0±0.01 for energies 50 and 60 MeV/n for the¹²C target and 0.8±0.01 for the²⁸Si target, providing a satisfactory agreement with experimental data. These results are more successful than those achieved in previous studies that used the CC model [21], quasielastic potential [26], Glauber of four body model [27], the breakup effect [51], and the JLM potential [53].

E/(MeV/n)	density	potential	NR	-J/(MeV fm3)		W/MeV	ri/fm	ai/fm	$ {\chi }^{2} $	$ {\sigma }_{R} $
				JR	JI
50	COSMA	CDM3Y6-RT	1.18	320.27	104.23	4.529	1.889	1.122	11.17	2300
		DDM3Y	1.15	289.27	105.71	4.926	1.840	1.124	14.60	2273
		CDM3Y6	0.92	278.36	95.06	4.393	1.852	1.092	12.96	2146
		SPP	0.86	233.51	80.11	4.727	1.675	1.169	14.72	1872
	SPD	CDM3Y6-RT	1.16	314.55	105.07	4.217	1.959	1.041	13.97	2324
		DDM3Y	1.13	283.91	110.30	4.724	1.905	1.086	17.36	2356
		CDM3Y6	0.91	274.07	99.950	4.219	1.925	1.031	15.68	2229
		SPP	0.93	257.02	100.27	4.818	1.799	1.225	16.45	2236
	HF	CDM3Y6-RT	1.06	291.83	103.05	3.900	2.019	0.918	14.57	2290
		DDM3Y	1.06	270.07	111.37	4.382	1.977	1.012	17.85	2389
		CDM3Y6	0.87	261.79	101.15	3.946	1.994	0.946	16.20	2258
		SPP	0.85	229.75	94.16	4.150	1.867	1.188	18.21	2190
60	COSMA	CDM3Y6-RT	1.18	303.45	136.83	50.00	0.674	1.371	6.21	1737
		DDM3Y	1.20	283.39	124.32	49.57	0.650	1.342	6.03	1625
		CDM3Y6	0.94	264.15	116.92	44.16	0.725	1.214	5.82	1484
		SPP	0.85	215.98	92.40	39.03	0.750	1.032	6.61	1187
	SPD	CDM3Y6-RT	1.12	293.94	140.90	60.06	0.569	1.459	7.19	1811
		DDM3Y	1.18	276.33	126.92	53.02	0.607	1.400	6.76	1678
		CDM3Y6	0.92	258.60	120.01	47.52	0.684	1.269	6.50	1536
		SPP	0.85	213.14	95.12	39.81	0.742	1.066	6.74	1228
	HF	CDM3Y6-RT	1.05	272.94	137.63	50.00	0.676	1.373	7.73	1741
		DDM3Y	1.07	254.89	131.36	84.24	0.384	1.490	7.33	1720
		CDM3Y6	0.84	238.26	124.09	67.91	0.517	1.355	7.11	1572
		SPP	0.80	204.70	101.33	50.90	0.628	1.182	7.24	1313

Table 4.The best fit parameters obtained for elastic scattering data for the¹¹Li+¹²C system at energies of 50 and 60 MeV/n using NN interaction (DDM3Y, CDM3Y6, CDM3Y6-RT, and SPP) with the considered three densities (COSMA, SPD, and HF).

Figure 4.(color online) The best fit angular distributions of elastic scattering of¹¹Li from¹²C at 50 MeV/n calculated with the semi-microscopic real DF potentials, CDM3Y6-RT (dashed-dotted line), DDM3Y (sold line), CDM3Y6 (dashed line), and SPP (dotted line). The symbol is a representation of the experimental data from Ref. [22]. Upper panel for COSMA density, middle panel for SPD density, and bottom panel for HF density.

Generally, the results corresponding toFigs. 4to6show that the considered effective interactions and densities predict the best agreement with the experimental results. It is clear that the three angular distributions resulting from DDM3Y, DDM3Y6, and DDM3Y6-RT are very similar to each other; however, a small shift in the forward angle between (2.5)⁰and 4⁰for SPP is noticed.

Figure 4shows the results in comparison with the measured experimental data for the¹²C target at an energy of 50 MeV/n, where the agreement with the data is reasonable and is of higher quality than that obtained from the quasielastic calculation of Petersonet al.[22]. Likewise,Fig. 5shows the good agreement of the predictions of our calculations with the experimental data for the¹²C target at an energy of 60 MeV/n, in comparison with those from previous attempts by many authors [26,27,52,53]. Meanwhile, the same results for the²⁸Si target at an energy of 29 MeV/n, which agree more with the experimental data than the results of [21,48,53,54], have been obtained, as shown inFig. 6. Despite the success achieved in the data analysis for practical data, anomalies at small angles still exist. In this angular range, the optical model amplitude is insensitive to the potential used due to a breakdown of the optical model in the explanation of the small-angle cross section for the halo nucleus, which could be attributed to the extreme peripheral nature of these reactions at intermediate energies due to the surface transparent potential.

Figure 5.(color online) Same asFig. 4, but for energy 60 MeV/n. The experimental data are taken from Ref. [20].

In order to understand the formation of a halo around the core of radioactive nuclei, which is very difficult, it is useful to study the reaction cross section (RCS) in addition to differential cross sections of the exotic nucleus¹¹Li from targets. The RCS $ {\sigma }_{R} $ represents an important constraint on the OP calculation. The average total RCSs $ {\sigma }_{R} $ for the present calculations are listed inTable 6. The behavior of the reaction mechanism is extrapolated for a range of low and high energies (30, 75 and 85 MeV/n). These results are listed together with the previous values [19,21,23,26,48,52], in conjunction with the experimental values of Refs. [55-57], and are illustrated inFig. 7. Unfortunately, $ {\sigma }_{R} $ was not measured at 50 MeV/n.

Figure 7.(color online) Energy dependence of the reaction cross section in the optical limit of the DF model using the present model for¹¹L+¹²C. The triangles denote the mean obtained results with considered potentials, the star shapes denote the previous calculations, and the circles denote the experimental data taken from Refs. [48,55-57].

As seen inTable 6, the present calculated $ {\sigma }_{R} $ generally agrees with the previous theoretical calculations, and on average, our results inFig. 7are closer to the experimental cross sections measured or those estimated from the systematics at relevant bombarding energies for the¹²C target. The calculated energy dependence of the total cross sections is well approximated by the expression

where $ E $ represents the value of energy per nucleon. It is obvious fromFig. 7and the results listed inTable 6that the behavior of the generated results reflects the success of our potentials in reproducing the exotic nuclei reactions. For the²⁸Si target, while the present results of $ {\sigma }_{R} $ agree with previous theoretical calculations, they are lesser than the results of the experimental data. The reason for this discrepancy could be the effect of the coupling of the low-lying exited states of²⁸Si to the elastic channels, which must be included or separated from the elastic events by those inelastic states. In addition, the value $ {\mathrm{\sigma }}_{{R}}=2947\pm 386\;\mathrm{m}\mathrm{b} $ corresponds to an energy of 25.5 MeV/n.

Explaining the discrepancy between the experimental and calculated differential cross sections at forward angles for the interaction of¹¹Li with low-Ztargets at intermediate energies can be divided into two stages. First, the studies could not predict this anomaly as a highly refractive nature for a quasi-elastic scattering process. Second, successful results were generated by Meermaz [24] and confirmed by the recent experimental study of Petersonet. al.[22], in which the elastic and inelastic reaction channels were cleanly separated in the forward angle. They verified that the⁹Li contamination data are responsible for the displayed interference minima. The purpose of the present paper is to provide a new attempt to describe the elastic scattering of¹¹Li from¹²C and²⁸Si through DF.

In the context of the DF optical model potential and as an extension of our studies [58-60], the elastic scattering of¹¹Li+¹²C and¹¹Li+²⁸Si has been reanalyzed. The nucleus-nucleus interaction potential has been constructed microscopically from folding the density-dependent effectiveNNinteractions DDM3Y, CDM3Y6, and SPP over the NM distributions of the interacting nuclei. The resulting potentials are used as the real part of the OP, while the imaginary component is treated phenomenologically through the WS form to calculate the angular distributions of the elastic scattering differential cross sections. Successful predictions were obtained by using our potentials generated for different energies within the measured angular ranges. The results indicate that using a unified energy dependent real potential is adequate to successfully fit the data in the considered energy range. Looking at the chi-square values mentioned in the above tables, we found that, with different versions for the NM density of the lithium nucleus, the smallest values at energies 50 and 60 MeV were obtained using CDM3Y6-RT and CDM3Y6, respectively.

Due to the repulsive contribution of the RT to the real folding potential, especially at a small internuclear distance, this contribution has been shown to be vital in the application of the folding model to the study of elastic¹¹Li+¹²C and¹¹Li+²⁸Si scattering in order to obtain the realistic shape and strength of the real potentials. The prediction capability of the folding model for¹¹Li+¹²C and¹¹Li+²⁸Si is good. For this type of foldingpotential, systematic folding model studies of the elastic and inelastic nucleus-nucleus scattering over a wide range of energies are encouraged.

In contrast, the total reaction cross sections for the considered reactions together with extended energies are investigated. It is observed that the RCS increases linearly with rising energy at lower energies. It is also noted that both the observed data and those theoretically obtained from previous elastic scattering studies are in good agreement with the values generated by the current elastic scattering calculations.

Finally, we can argue that the simple calculated semi-microscopic potential of the DF model is considered as an advanced result and is more accurate compared with those from the previous complicated studies. The present results encourage us to modify the present potential calculation approach for full microscopic analysis to explain the discrepancy of the interaction of¹¹Li with low-Ztargets at intermediate energies and to extend the analysis to other halo reactions.
